Detailed Description

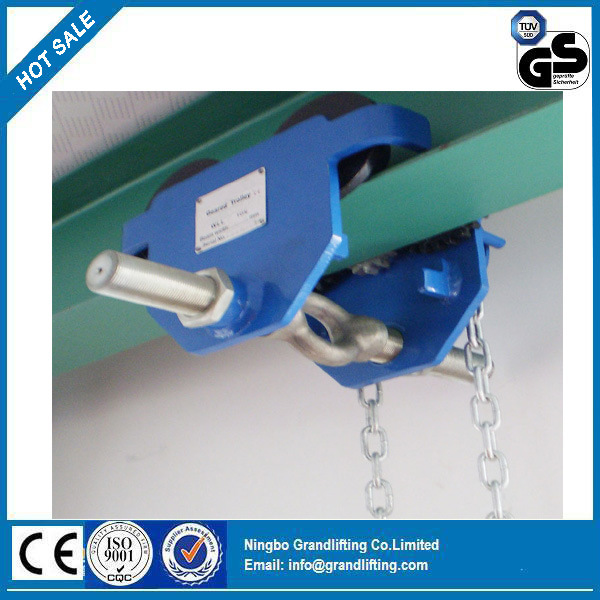

S Type Hand Chain Geared Trolley
1.S Type Hand Chain Geared Trolley
2.Capacity of push trolley: 0.5t to 5 T
3.Adjustable to any beam width, simply by adjusting the number of collars.
4.The wheels are made to fit any shape of beam
5. High grade sealed ball bearings
| Item No.(I-beam:nomal) | ZHGT-S-0.5T | ZHGT-S-1T | ZHGT-S-2T | ZHGT-S-3T | ZHGT-S-5T |
| Item No.(I-beam:long) | ZHGT-S-0.5T-L | ZHGT-S-1T-L | ZHGT-S-2T-L | ZHGT-S-3T-L | ZHGT-S-5T-L |
| Capacity(t) | 0.5 | 1 | 2 | 3 | 5 |
| Running test load(kn) | 7.35 | 14.71 | 29.42 | 44.13 | 61.29 |
| Running height(m) | 3 | 3 | 3 | 3 | 3 |
| Chain pull to lift full load (Kn) | 45 | 80 | 150 | 120 | 160 |
| Min.radius of curve(m) | 0.9 | 1 | 1.2 | 1.3 | 1.4 |
| Dimension(mm) | A | a | 292.5 | 302.5 | 319.5 | 354 | 365 |
| b | 383 | 393 | 398 | 425.5 | 430.5 |
| B | 225 | 252 | 300 | 360 | 400 |
| C | 173 | 188 | 226 | 290 | 313 |
| H | 74 | 90 | 106 | 121 | 136 |
| S | 32 | 38 | 38 | 40 | 42 |
| D | 25 | 30 | 40 | 46 | 52 |
| G | 30 | 36 | 48 | 58 | 65 |
| F | 1.5-3 |
| I-Beam width range(mm) | M | normal | 50-220 | 50-220 | 66-220 | 74-220 | 90-220 |
| long | 160-305 | 160-305 | 160-305 | 160-305 | 160-305 |
| Net weight(kg) | a | 9 | 13 | 15 | 27 | 40.5 |
| b | / | 14 | 16 | 28.5 | 42.5 |
