Detailed Description
Product Des

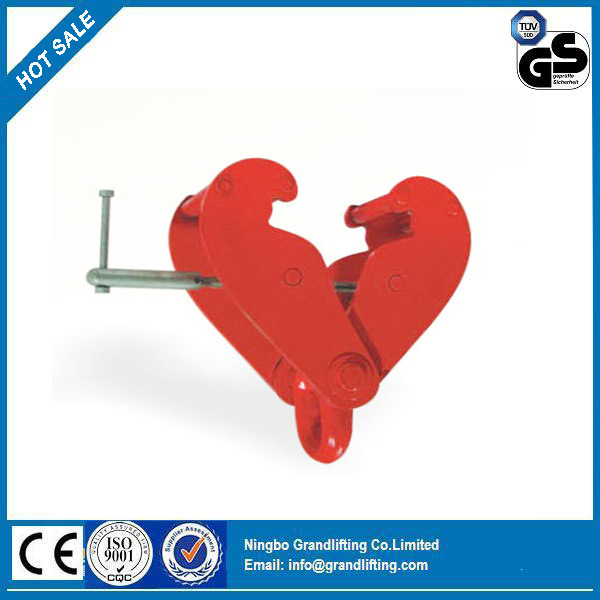

criptionProduct's Introduction:1.Beam Clamp is a equipment that can quick form hanger or co
nnecting point in I-beam monorail.2.The beam clamp should be formed a complete set with chain hoist or other lifting machines.3.The beam clamp was installed on the bottom flange of I-beam.4.The beam clamp is adopt left and right screw thread co
nstruction for leading-screw, clamping is quick in operation.5.The scops of adjustments is wide,adjustment is very convenient.6.Main parts of support strength are made by alloy steel.Beam clamp features:1. Robust all steel co
nstruction with safety operation.2. Compact size with light weight.3. Easy to install with minimum headroom.4. Super-quick adjustment to any girder width in range.5. Beam clamp with small shackle is available upon request.Precaution:1.Over loading is strictly forbidden.2.If the beam clamp is used as lifting machines, while lifting the load, passing or working under a lifting load is strictly.3.The direction of lifting or towing load must be perpendicular with ba
se I-beam.4.Leading screw fastener screw etc. should be reguiarly.
| Item No. | Safe working load (kg) | Adjustable beam width (mm) | A max(mm) | B | C(mm) | D(mm) | E(mm) | F | G min(mm) | H (mm) |
| min(mm) | max(mm) | min(mm) | max(mm) |
| ZHBC-1T | 1000 | 70-245 | 270 | 183 | 375 | 66 | 4 | 210 | 165 | 102 | 25 | 20 |
| ZHBC-2T | 2000 | 70-245 | 270 | 183 | 375 | 74 | 6 | 210 | 165 | 102 | 25 | 20 |
| ZHBC-3T | 3000 | 70-355 | 365 | 240 | 520 | 103 | 8 | 258 | 225 | 135 | 45 | 22 |
| ZHBC-5T | 5000 | 70-355 | 365 | 240 | 520 | 111 | 10 | 258 | 225 | 135 | 45 | 28 |
| ZHBC-10T | 10000 | 80-350 | 365 | 250 | 520 | 120 | 12 | 280 | 230 | 160 | 50 | 38 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Product Image
