Detailed Description
This kind of engine can be used for the Gas Generators. Cars, trucks and so on.
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Enviro
nmental protection project. The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification.
| No. | Model | HL493CNG-D | HL493CNG-ZD | HL6102CNG-D | HL6102CNG-ZD | HL6126CNG-D | HL6126CNG-ZLD | HL6126CNG-AZLD |
| 1 | Type | | Fourstroke/In-line/watercooling/muti-pointcontrolledsequentialinjection/dry-typethinwallchromiumplatedcylinderjacket |
| 2 | Numberofcylinders | | 4 | 6 | 6 |
| 3 | Diameter×Stroke | mm | 93×102 | 102×118 | 126×130 |
| 4 | Admissionmethod | | Naturallyaspirated | Turbocharged | Naturallyaspirated | Turbocharged | Naturallyaspirated | Turbocharged |
| 5 | Displacement | L | 2.771 | 5.785 | 9.726 |
| 6 | Compssionratio | | 12:01 |
| 7 | RatedPower/Speed | kW/r/min | 30/1500 | 36/1500 | 58/1500 | 88/1500 | 94/1500 | 180/1500 | 230/1500 |
| 8 | Ignitionmodel | | ECUcontrollingignition |
| 9 | Ignitionorder | | 1-3-4-2 | 1-5-3-6-2-4 |
| 10 | Gasconsumption | m³/kW·h | ≤0.3 |
| 11 | Fuel | | 12T,designatedbyCompssedNaturalGasforVehicles,GB18074 |
| 12 | Lubricatingoil | | Engineoilspeciallyusedforgasengine(SAEl15W/40) |
| 13 | Noises | | ≤90dBA(7M) | ≤90dBA(7M) | ≤95dBA(7M) |
| 14 | Rotatingdirectionofcrankshaft | | Anticlockwise(fromflywheelside) |
| 15 | Dimension | mm | 734×632×682 | 734×632×692 | 1220×640×1050 | 1220×640×1158 | 1525×675×965 | 1525×675×1050 | 1525×685×1150 |
| 16 | Netweight | kg | 224 | 238 | 500 | 540 | 900 | 950 | 980 |
| 17 | Capacityoflubricatingoil | L | 7 | 7 | 18 | 18 | 20 |
| 18 | CapacityofCoolingLiquid | L | 15 | 15 | 48 | 48 | 50 |

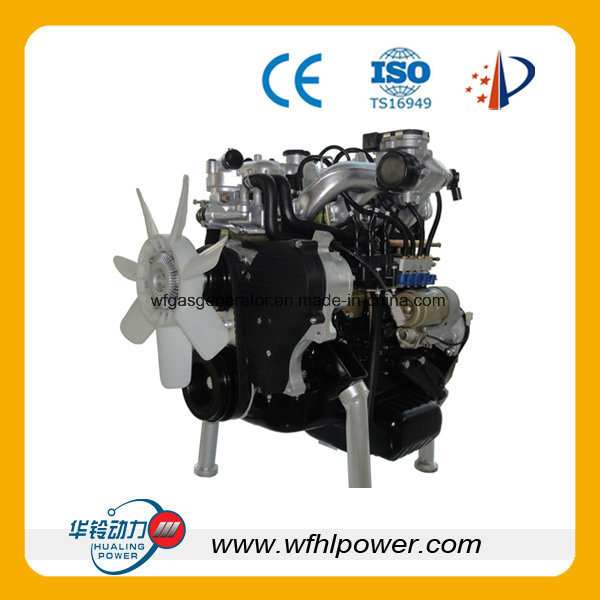

Product Image
