Detailed Description
This kind of engine can be used for the Gas Generators. Cars, trucks and so on.
If you have the demand, please co
ntact with us. We can supply the best competition with the best price.
| No. | Model | HL493CNG-D | HL493CNG-ZD | HL6102CNG-D | HL6102CNG-ZD | HL6126CNG-D | HL6126CNG-ZLD | HL6126CNG-AZLD |
| 1 | Type | | Fourstroke/In-line/watercooling/muti-pointcontrolledsequentialinjection/dry-typethinwallchromiumplatedcylinderjacket |
| 2 | Numberofcylinders | | 4 | 6 | 6 |
| 3 | Diameter×Stroke | mm | 93×102 | 102×118 | 126×130 |
| 4 | Admissionmethod | | Naturallyaspirated | Turbocharged | Naturallyaspirated | Turbocharged | Naturallyaspirated | Turbocharged |
| 5 | Displacement | L | 2.771 | 5.785 | 9.726 |
| 6 | Compssionratio | | 12:01 |
| 7 | RatedPower/Speed | kW/r/min | 30/1500 | 36/1500 | 58/1500 | 88/1500 | 94/1500 | 180/1500 | 230/1500 |
| 8 | Ignitionmodel | | ECUcontrollingignition |
| 9 | Ignitionorder | | 1-3-4-2 | 1-5-3-6-2-4 |
| 10 | Gasconsumption | m³/kW·h | ≤0.3 |
| 11 | Fuel | | 12T,designatedbyCompssedNaturalGasforVehicles,GB18074 |
| 12 | Lubricatingoil | | Engineoilspeciallyusedforgasengine(SAEl15W/40) |
| 13 | Noises | | ≤90dBA(7M) | ≤90dBA(7M) | ≤95dBA(7M) |
| 14 | Rotatingdirectionofcrankshaft | | Anticlockwise(fromflywheelside) |
| 15 | Dimension | mm | 734×632×682 | 734×632×692 | 1220×640×1050 | 1220×640×1158 | 1525×675×965 | 1525×675×1050 | 1525×685×1150 |
| 16 | Netweight | kg | 224 | 238 | 500 | 540 | 900 | 950 | 980 |
| 17 | Capacityoflubricatingoil | L | 7 | 7 | 18 | 18 | 20 |
| 18 | CapacityofCoolingLiquid | L | 15 | 15 | 48 | 48 | 50 |

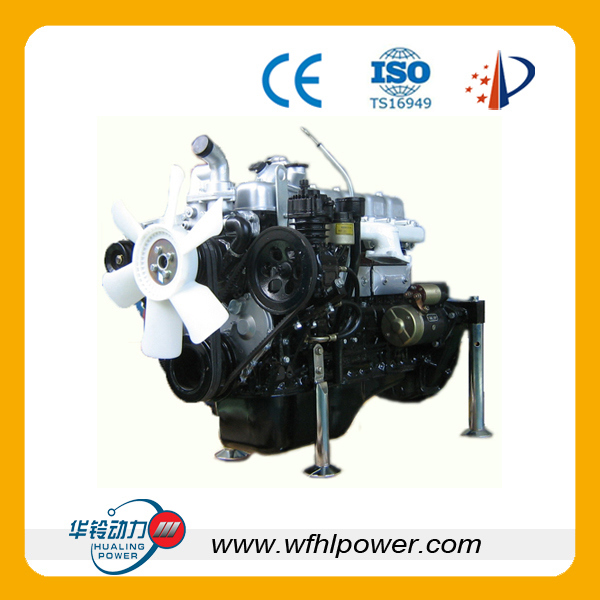

Product Image
