Detailed Description
HL6126CNG Natural Gas Engine
Our company developed the HL series gas engines and air co
nditioning units, generator sets, statio
nery power unit, which is good sale in the market. The product quality is stable, energy co
nservation and enviro
nmental protection.
Since 2008, the product of Hualing Power CO. Enter to the oil industry,
Develop and produce wellhead gas generating set and gas generator set, now has been installed in th CBM Oil branch and running in the subsidiaries.
| Model | HL493CNG-D | HL493CNG-ZD | HL6102CNG-D | HL6102CNG-ZD | HL6126CNG-D | HL6126CNG-ZLD | HL6126CNG-AZLD |
| 1 | T ype | | \\
Fourstroke/In-line/watercooling/muti-pointcontrolledsequentialinjection/dry-typethinwallchromiumplatedcylinderjacket |
| 2 | Numberofcylinders | | 4 | 6 | 6 |
| 3 | × Diameter ×S troke | mm | 93×102 | 102×118 | 126×130 |
| 4 | Admissionmethod | | Naturallyaspirated | Turbocharged | Naturallyaspirated | Turbocharged | Naturallyaspirated | Turbocharged |
| 5 | Displacement | L | 2.771 | 5.785 | 9.726 |
| 6 | Compssionratio | | 12:01 |
| 7 | / RatedPower/Speed | kW/r/min | 30/1500 | 36/1500 | 58/1500 | 88/1500 | 94/1500 | 180/1500 | 230/1500 |
| 8 | Ignitionmodel | | ECU ECUcontrollingignition |
| 9 | Ignitionorder | | 1-3-4-2 | 1-5-3-6-2-4 |
| 10 | Gasconsumption | m³/kW@h | ≤0.3 |
| 11 | Fuel | | GB18407« » 12T12T,designatedbyCompssedNaturalGasforVehicles,GB18074 |
| 12 | Lubricatingoil | | ( SAE:15/40 ) Engineoilspeciallyusedforgasengine(SAEl15W/40) |
| 13 | Noises | | ≤90dBA(7M) | ≤90dBA(7M) | ≤95dBA(7M) |
| 14 | Rotatingdirectionofcrankshaft | | ()
Anticlockwise(fromflywheelside) |
| 15 | L×B×HDimension | mm | 734×632×682 | 734×632×692 | 1220×640×1050 | 1220×640×1158 | 1525×675×965 | 1525×675×1050 | 1525×685×1150 |
| 16 | Netweight | kg | 224 | 238 | 500 | 540 | 900 | 950 | 980 |
| 17 | Capacityoflubricatingoil | L | 7 | 7 | 18 | 18 | 20 |
| 18 | CapacityofCoolingLiquid | L | 15 | 15 | 48 | 48 | 50 |

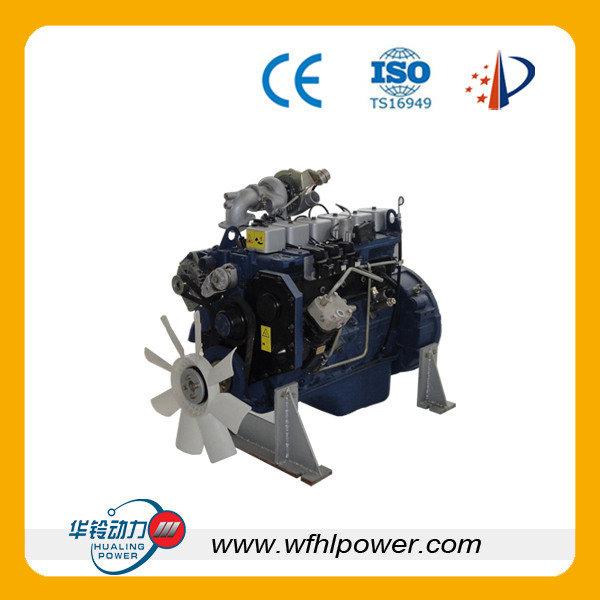

Product Image
