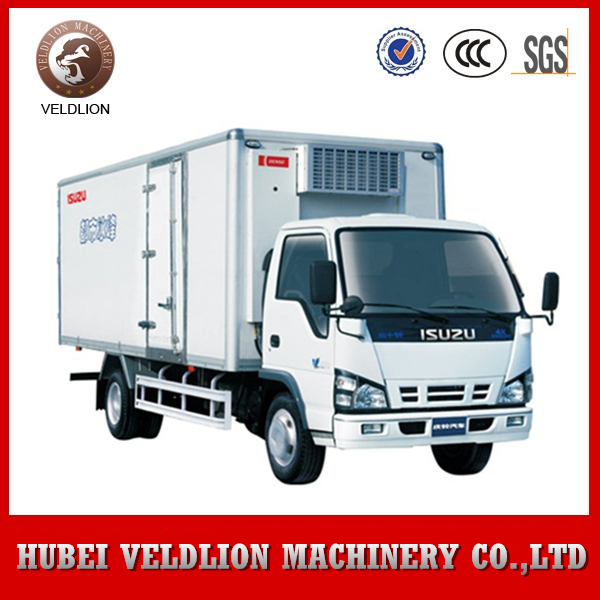

Isuzu 4*2 Refrigerator Van Truck, 6ton Refrigerator Truck

Product Description
*Isuzu 4*2 Refrigerator Van Truck, 6ton Refrigerator Truck*--------------------------------------------------------------
Our company is professional manufacturer in truck area, guarantee all goods Brand-New and high-quality.

»I.Product Describution:

Manufacturer:Hubei Veldlion Machinery Co.,Ltd.
1.USA Thero King Refrigerated System.
2.Quality Insulation Material
3,Heavy duty Loading Design
4,Suitable for food ,seafood,cold meat transportation.



»II.Refrigerator Van TruckSpecification :

[Main specifications of ISUZU 4*2 6ton Refrigerator Truck]
Product model name	QL5070XLCA1KAJ Refrigerator Van Truck
Gross weight(Kg)	7300	Tank volume(m³)			17
Payload(Kg)	3400	Overall dimension(mm)			6980×2070×2990
Curb weight(Kg)	3770	Van body size (mm)			5050×1840×1800
Cab seats(person)	2	Drive type			4×2
Approach/departure angle(°)	24/14	Front/rear hang(mm)			1015/2150
Axle No.	2	Wheelbase(mm)			3815
Axle load (Kg)	2580/4720	Max speed (Km/h)			105
[Chassis specifications]
Chassis model	QL1070A1KA1Y	Manufacturer			Dongfeng Motor Co., Ltd
Brand name	Dongfeng	Tires No.			6
dimension(mm)	6645×1980×2200	Tire specification			7.00-16 14PR
Approach/departure angle(°)	24/14	Front track(mm)			1504
Steel spring number	8/6+5	Rear track(mm)			1525
Fuel type	Diesel	Emission standard			Euro3/Euro4
Engine model	Engine manufacturer			Displacement (ml)			power(kw)
4KH1-TCG40	ISUZU engine Co., LTD			2999			88
[Performance]
Van body size	5050×1840×1800		Truck body volume			17cbm
Lowest refrigeration temperature (°C)		-5 to -10 degree centigrade
[Feature and application]
Therefrigeratortruckistheclosedvantruckthatisusedtotransportthefrozenorfreshgoods. Thistruckismadeupofvehiclechassis,Polyurethaneinsulationvan,refrigerationunitandtemperaturerecorder. Itiscommonlyusedtotransportthefrozenfood,dairyproducts,vegetableandfruitandvaccinemedicineetc. Forthespecialrequirementsoftrucks.suchasthemeattransportation, themeathook, aluminumalloy guiderailandventilationslotsetc.partscanbechosenandinstalled.
Please contact us if you want more product information, we are ready to provide service for you!

Remark:
1.Refrigerator Van Truck Drive model:4*2,4*4,6*4,6*6,8*4;
2.Chassis Brand :Dongfeng, North Benz, JAC, JMC,FAW, Foton, Sinotruck, etc;
3.Engine:Euro3 and Euro 4emission standard with different horsepower;
4.Left hand drive /Right hand drive with optional.





»III.Our Advantages

Why choose us?
Experience
10 years experience of production,sales,research and development in the field of Refrigerator Van Truck.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty for Refrigerator Van Truck.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.


»IV.Company Introduce:

Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.


» V.Packaging &Shipping

Thick wax polished on Refrigerator Van Truck before shipping to protect.
Use container, RORO/bulk ship or others as your requirement.
We provide transportation insurance to guarantee the new and great condition of products for customers


»VI.Contact us

Atten:Ms.Real Liu
Mobile:0086-136 5686 6460
www.veldlion.com

YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
