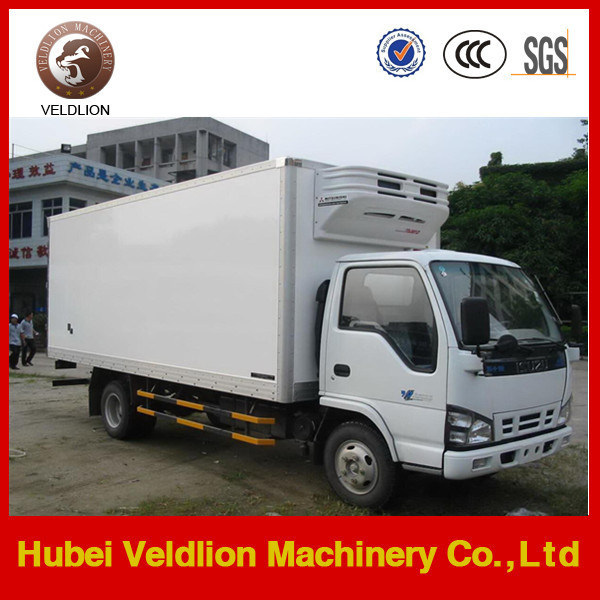

Euro 4 Isuzu Refrigerated Truck 3tons

1. Mini 2MT/2T/2tons ISUZU refrigerated truck
(1) Truck specification

ProductsTechnicalSpecification
ProductName		4*2RefrigeratorTruck
Brand-Series		ISUZU-100P
ChassisModel		QL10403EARY
EmissionStandard		Euro 4
Fueltype		Diesel
Cabin		Singlerow,withA/C
Wholevehicle maindimensions(mm)	Overalldimensions(L×W×H)	4870*1764*2670
	Cragobodydimensions	3045*1624*1565
	Wheelbase	2490
	Frontoverhang	1015
	Rearoverhang	1365
	Min.groundclearance	505
Weightdata(kg)	G.V.W	4100
	Curbweight(chassis)	2520
	Maxpayload	1000-2000
Wholevehicle mainperformance	Max.speed(km/h)	98
	Max.slopeofclimb(%)	30
Engine	Model	4JB1CN
	Ratedpower(kw/rpm)	72kw/3400
	Displacement(L)	2.771
	Numberofcylinders	4
	Maxtorque(N.m/rpm)	206/1700
Transmission	Numberofgears	MSB,5forwardgears&1reverse
Rearaxle	capcaity	3tonsaxle
Suspension	Front	6-Leafspring
	Rear	5-leafspring
SteeringWheel	left/righthanddrive	LHD
Brakesystem	Servicebrake	oilbraking
Electricdevice	Ratedvoltage	24V
Tyres&Quantity		7.00-15&4+1
CargobodyDescription
Cragobodydimensions(mm)		3045*1624*1565
Cragobodymaterial		FRPinside&outsideofthevan,polyurethane astheinsulation
Cragobodythickness		80mmOptional100mm
BackDoor		hingeddoor(plasticdoorprotectioncurtains)
Sidedoor		Optional
hooks		equipment
Refrigerationsystems		EquippedwithKV-300(10) ThermoKingBrand
TemperatureRange		Normaltemperature, refrigerationtemperaturereached-20°C
Others		StainlessSteeldoorframe,Stainlesssteelcorrugatedfloor, Marklampatthefour(4)cornersfthebody, Roomlampwillbeprovidedinsidethecabin.

(2) We can offer various kinds of refrigerated truck with different brands like as the Dongfeng, Foton, IZUSU, SINOTRUK, FAW, SHACMAN, JAC, JMC,and etc . Drive model : 4x2 , 6x4, 8x4, Loading capacity from 2ton to 30tons.

2. Shipping photos
By roro ship or bulk ship

3. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.
Creatingvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

4. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

5. Contact us
Atten: Coco. Tian
Tel: 0086-17771878326
www.veldlion.com
