700p Japan 4X2 8ton Refrigerated Cargo Truck

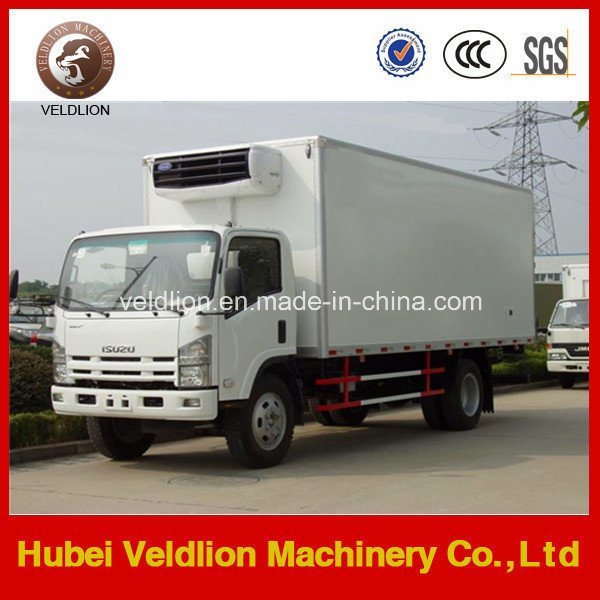

1. 4X2 isuzu refrigerator truck, Freezer Truck
(1) Truck specification

Main specification	Chassis brand	/	ISUZU
	Chassis model	/	QL11009
	Overall dimension(L*W*H)	mm	7500x2500x3300
	The size of the cargo box(L*W*H)	mm	5380×2200×2000
	Total weight	kg	10,055
	Net weight	kg	5,100
	Rated Loading capacity	kg	4,955
Chassis	Drive modle	/	4x2 left hand drive
	Axle number	/	2
	Axle loading (front/rear)	kg	3360/6695
	Wheel base	mm	4175
	Front/rear suspension	mm	1110/2215
	Front/rear track	mm	1680/1650
	Spring number	/	8/10+6
	Tyre size & number	/	8.25-16
	Max speed	km/h	110
Engine	Manufacturer	/	ISUZU
	Model	/	4HK1-TCG40
	Engine Type	/	Diesel, 4 cylinder
	Horse power	kw/hp	139/190
	Displacement	ml	5193
	Emission	/	Euro 4
van box	Overall dimension(L*W*H)	/	5380×2200×2000
	Material	/	Inner and outer of the box body is made of glass steel plate, and the middle is 60mm thick polyurethane thermal insulation board. There is a door in the right side of van box.
	Cargo Thickness	mm	60
	Refrigerator model	/	DT-230,
	Working Temperature:	°	-18

(2) We can offer various kinds of refrigerated truck with different brands like as the Dongfeng, Foton, IZUSU, SINOTRUK, FAW, SHACMAN, JAC, JMC,and etc . Drive model : 4x2 , 6x4, 8x4, Loading capacity from 2ton to 30tons.

2. Shipping photos
By roro ship or bulk ship

3. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.
Creatingvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
4. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
