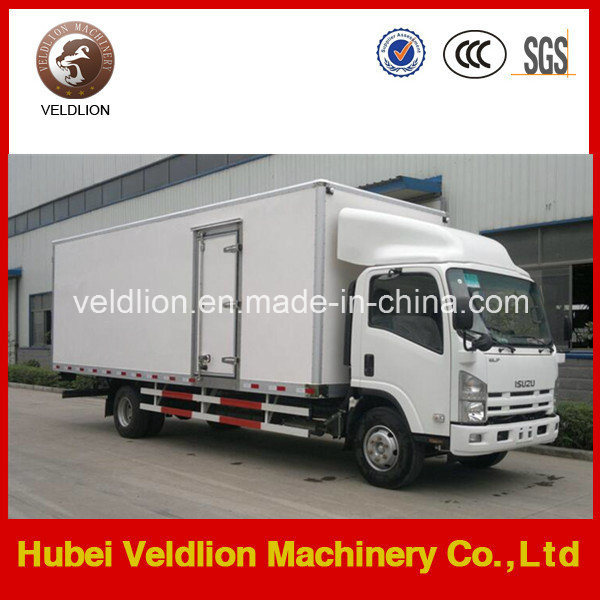

Isuzu 4X2 18cbm Refrigerated Cargobox Truck with Hanya Cooling System

Part 1: Features
----------ISUZU chassis ensures perfect driving performance
----------ISUZU engine,American brand ,super power ,realiable performance
----------High quality temperature pservation van body
----------Excellent Chiese brand or imported brand refrigerator
----------Prolonged service life

Part 2: Specification:

Products Technical Specification
Type		4*2 Refrigerated Truck			4*2 Refrigerated Truck				4*2 Refrigerate Truck
Brand		ISUZU 600P			ISUZU 700P				ISUZU FTR
Cab		600P Single row, with A/C, Radio, cassette			700P Single row, with A/C, Radio, cassette				FTR Half row. with A/C, Radio, cassette
Vehicle Description
Overall dimensions(mm)		5995*1930*2815			7005*2396*3220				9000*2545*3950
G. V. W (kg)		7300			12000				18000
Curb weight(vehicle) (kg)		2900			4320				7005
Loading capacity (kg)		5000-6000			8000-10000				12000-14000
Max speed (Km/h)		100			100				100
Engine Description
Engine model		4KH1-TC			4HK1-TC				4HK1-TC
Maximum power		96kw / 130hp			129kw / 175hp				129kw / 175hp
Displacement (lit)		2999			5193				5193
Engine Manufacturer		Qingling Motors Co. Ltd			Qingling Isuzu (Chongqing) Engine Co., Ltd.				Qingling Isuzu (Chongqing) Engine Co., Ltd.
Chassis Description
Wheel base		3360			3815				5000
F/R track base(mm)		1504/1425			1680/1650				1960/1855
F/R overhang(mm)		1015/1525			1110/2055				1335/2450
Approach/Departure angle(° )		24/16			21/13				26/16
Spring plate		8/6+5			8/10+6				7/7+5
Front axle / rear axle		2T/4.8T			4T/7T				6.3T/13T
Gear box		5-speed with over drive			6-speed with over drive				6-speed with over drive
Brake system		Hydraulic			Hydraulic				Hydraulic
Operation control system		Power Steering			Power Steering				Power Steering
Electric system		24V			24V				24V
Tyres		7.00-16			8.25-16				9.00-20
Up-parts Description
Box Dimensions(mm)	4050*1700*1600				5060*2279*2053				6534*2434*2550
Equipment	1. Refrigerator chosen Model: DT-150S/ DT-230/DM-500S South korean Hanya 2. Van Material: Color plate inside, FRP outside of the van, polyurethane foam middle. 3. Back Door(The opening of the door can be different directions. ) 4. Normal temperature, refrigeration temperature reached -20° C- +5° C.
Optional Equipment	1. Van Material: FRP inside & outside of the van, polyurethane as the insulation. stainless steel, Q235 steel sheet or aluminum are all optional. 2. Refrigerators chosen brand from: CHINA, South korean Hanya, American, etc. 3. Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional.
Refrigeration unit Parameters
South korean Hanya (DONG IN THERMO CO., LTD. )DT-150S/ DT-230/DM-500S
Frozen performance Ambient temperature 35° C	0° C		3200kcal/h			4700kcal/h	5000kcal/h			R-404a Refrigerant
	-20° C		1060kcal/h			1450kcal/h	2200kcal/h
Operating voltage	DC12V/DC24V			DC12V/DC24V				DC12V/DC24V
Compssor	SD5L14 147CC			SD5L15 163CC				DS7H15 163CC
Working pssure	≥ 2.25kgf/cm² g ≤ 26kgf/cm² g
Pressure protection	≤ 2kgf/cm² g ≥ 32kgf/cm² g
Condenser (L*W*H)	915*440*220mm			1110*500*430				1120*506*395
Evaporator (L*W*H)	840*505*185mm			1230*640*200				1390*593*200
Control System	Digital integrated automatic control HC-100
Defrost mode	Automatic hot gas defrost
Weight	58kg			68kg				78kg

Part 3: Fuction
--------Two type of power drive ways :one is power by vechiles engine through PTO ,the other is driven by separated carried power unit ;
--------Cooling systems could be Chiese brand or famous imported brand;
--------Temperature could be chosen as fresh or frozen;
--------The box surface material could be fibergladd ,aluminum or stainless steel ,the padding material os polyurethane foam that has super temperature pservation ability;


Optional : 1.box material could be aluminum or stainless steel 2. Temperature date logger ,temperature alarm ,
3. extra side door ; 4 Slide rail and meat hook for special use ;

Part 4: Our company
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.

Our Advantages
Why choose us?
---Experience
---10 years experience of production,sales,research and development in the field of special trucks.

----Specialization
----We can produce according to your demand, the material,the size, the color and the logo is optional for you.

----Good quality
----Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

----Chassis supply
----We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
----Production supply capacity

----Company scale
----More than 600 employees with 500 acres factory, total asset 2 Million.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Part 5:Packaging &Shipping
Thick wax polished on products before shipping to protect.
Use container, RORO/bulk ship or others as your requirement.
We provide transportation insurance to guarantee the new and great condition of products for customers
