Detailed Description

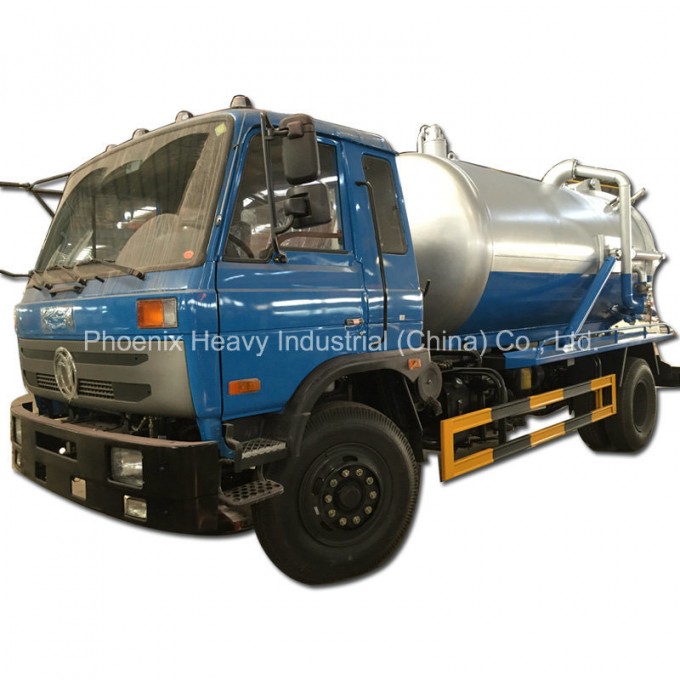

Hot Sale 10CBMVacuum Lorry with Do
ngfeng Chassis
Chassis&co
lon; Do
ngfeng Chassis
Engine&co
lon; Do
ngfeng Cummins engine
Rated Power&co
lon; 139kw/190HP
Drive Type&co
lon; 4x2/LHD
Payload&co
lon; 5990kg
Tank Capacity&co
lon; 10m3
Dimensions&co
lon; 7600×2462×2710mm
| Item |
|
| Chassis | Dongfeng EQ1141KJ |
| Engine | B190 Dongfeng Cummins |
| Emission | Euro III |
| Rated Power | 139kw |
| Displacement | 7120ml |
| Gearbox | 8 speed |
| Tire and spare tire | 9.00 |
| Cabin | Dongfeng Flat roof cabin |
| Axle | Front axle:5T / Rear axle:10T |
| Wheel base | 4500 mm |
| Dimensions | 7600×2462×2710 mm |
| Oil cylinder | MSGK01-90/50×670E |
| Vacuum pump | 50QZ XDH-68/7000×2 | Max. Vacuum level | 93-96 KPA |
| Oil pump | CB50 Right X2 | Effective suction distance | ≥7-20m |
| Multiple valve | 2TS1-L10C-T/20 | Mileage | 68L/S |
| Oil pssure gauge | X-60-16MPa | Power | 5kw |
| Power takeoff | Dedicated | Absolute Pressure | 7Kpa |
| Safety valve | ZG1.5A27W-10-03 |
| Tank Material | Q235B (carbon steel) |
| Tank thickness | 6mm |
| End Socket Thickness | 6mm |
| Tank Capacity | 10 m3 |
| Total Mass | 14900 kg |
| Kerb Mass | 8715 kg |
| Payload | 5990 kg |
| Oil Paint | metallic paint |
| Functions | The main functions are to suck out and transport stool, sludge, stones and other liquids with larger suspension solids for urban service department, particularly suitable for pumping, loading and discharging sediment in the sewer, especially it can suck out bigger objects such as the stones and bricks in sewer. |
