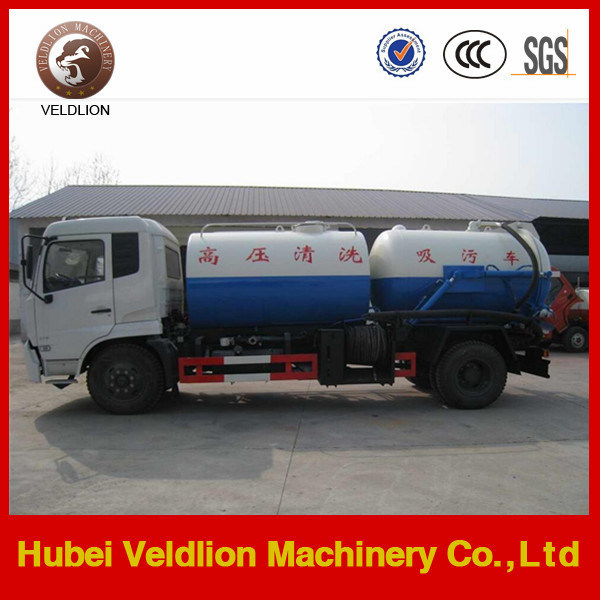

16ton Vacuum Sewage Suction Truck with Cleaning Tank

1. Quick details of the 10,000 litres Dongfeng sewage suction truck
(1) Tank volume: 8,000-10,000 litres;
(2) Tank gross weight: 15,900kg;
(3) Tank loading capacity: 8,600kg;
(4) Tank Thickness: 5-6mm
(5) Steering: 4x2 lef hand drive
(6) Tyre: 10.00R16, 7pieces, with one spare tyre;
(7) Overall dimension:8000x2480x3300mm
(8) Wheel base:4500mm

2. Technicial datas of the sewage suction truck

Main parameters	Brand	VLD
	Product model	VLD5161GXW4
	Gross weight (Kg)	15990
	Rated load (Kg)	8600
	Curb weight (Kg)	7195
	Cab seats	3
	Approach/departure angle	32/24
	Number of axles	2
	Axle load (Kg)	5995/9995
	Fact cubage (L)	10000
	Overall dimension(mm)	8000×2480×3300
	Front/rear suspension (mm)	1250/2250
	Wheel base(mm)	4500,4700,4950,4800,5100
	Max speed (Km/h)	88
Chassis parameters	Chassis model	EQ1160GKJ1
	Brand	DongFeng
	Dimentions	7650,8200,8900,8750,9000×2480×2810
	Approach/departure angle	32/26,32/24,32/22
	Plate spring No.	9/10+8
	Fuel	diesel
	Number of wheels (mm)	6
	Tire specification	10.00-20-16PR,10.00R20-20PR
	Front track base (mm)	1940,1900
	Rear track base (mm)	1860,1800
	Engine capacity (ml)	6500
	Emission standard	Euro IV
Equipment	Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) Equipped with power take off, transmission shaft, high pssure sewage tank, pipe network, sewage pipe for observing and cleanout equipment Time for full sucktion<5min

(1) We can offer various kinds of vacuum seage suction truck with different brands like as the Dongfeng, Foton, IZUSU, SINOTRUK, FAW, SHACMAN, JAC, JMC,and etc . Drive model : 4x2 , 6x4, 8x4,

(2) Tank volume from 3,000 litres to 200,000 litres.

4. Company profile
HUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. LPG tank &truck %trailer
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,

5. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

6. Contact us
Atten: Coco. Tian
Tel: 0086-17771878326
www.veldlion.com
