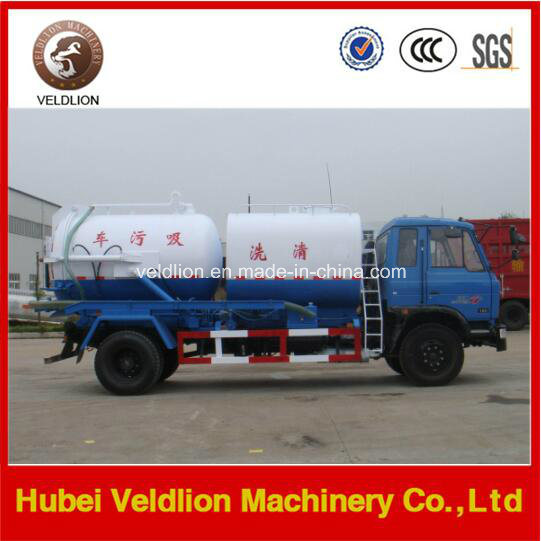

8000liter/8cbm/8m3/8000L Suction Sewage Tank Truck with Water Tank

1. Quick details of the 8,000 litres Dongfeng sewage suction truck

(1) Common type Sewage Suction Tank volume: 3,000-20,000 litres;
(2) Tank gross weight: 7,300kg;
(3) Tank loading capacity: 3,000kg;
(4) Tank Thickness: 4-5mm
(5) Steering: 6x4 left hand drive
(6) Tyre: 7.00R16, 7pieces, with one spare tyre;
(7) Overall dimension:5800x1960X2460 mm
(8) Wheel base:3300mm

2. Technical datas of the sewage suction truck

Product	Dongfeng vacuum sewage sucking truck
Chassis type	EQ1108
Cubage(m3)	8
Parameters	Overall dimension length/width/height (mm)	6650*2350*2550
	Total Mass(kg)	9400
	Payload(kg)	4700
	Kerb Mass(kg)	4505
	Approach angle/ Departure angle(mm)	20/12
	Front suspension/rear suspension(mm)	1180/1670
	Fuel Type	diesel
	Fuel Consumption/100 km	11
	Max Speed	99
Engine	Type	CY4102-E3C,ISDe140 30
	Displacement/Power(kw)	3856/91(123hp) ,4500/103(140hp)
	Manufacturer	Guangxi Yuchai Diesel Engine Co.,Ltd
	Type	4-in-line, inner-cooling supercharged diesel engine
Chassis	Drive type	4×2
	Wheelbase(mm)	4500
	Tread(front/rear)	1831/1640
	Front axle	2.4T
	Rear axle	4.2T
	Steering gear	Recirculating ball steering
	Transmission	5 forward gear,1 reverse gear,manual mechanical type
	Clutch	Uniwafer, dry clutch, hydraulic remote control
	Braking system	air braking,cam drum braking
	Cab	Non-long headed cabin
	Number of spring axle(front/rear)	11/9+7
	Tire Type	8.25-16,7.50-16,8.25R16,7.50R16
	Air-condition	Choose to fix
Sucking system	Sucking pump	Sliding-vane rotary vacuum pump
Special performance parameters	Vertical suction range	≥8
	Absolute pssure	8500Pa
	Rotation speed	500
	Theory pumping speed	98L/S
	Axis power	5.5kw
	Vent dia	50mm
	Suction Time	5s
	Drain time	4s

3. Details of the Dongfeng vacuumSewage Suction Truck



4. More Sewage Suction Truck photos for your reference

(1) We can offer various kinds of vacuum seage suction truck with different brands like as the Dongfeng, Foton, IZUSU, SINOTRUK, FAW, SHACMAN, JAC, JMC,and etc . Drive model : 4x2 , 6x4, 8x4,

(2) Tank volume from 3,000 litres to 20,000 litres.
