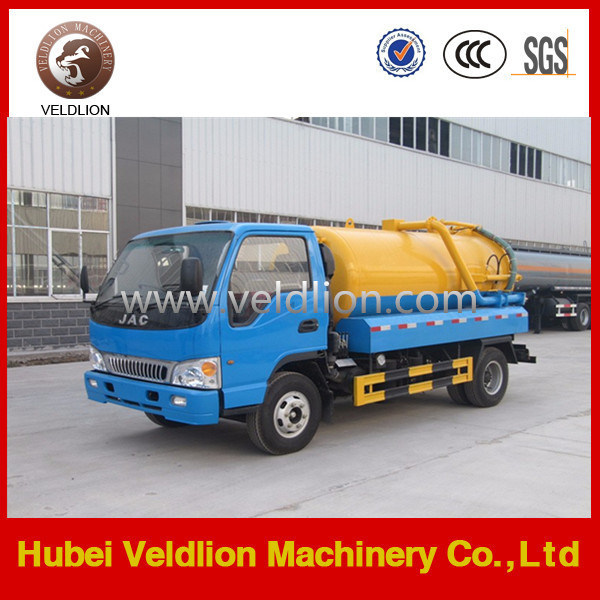

JAC 5000L Vacuum Sewage Suction Truck (RHD or LHD)

Part 1: The structure of sewage suction truck
1.Chassis :
a.Drive type: 4x2,4x4,6x2,6x4,6x6,8x4 etc.
b.Our factory has good business relationship with FAW,SINOTRUCK ,DonGFENG ,SHACMAN,JAC.JMC,FOTON,ISUZU,etc.
2.Tanker body:From 2m3 to 25 m3 capacity
3.Accessory of sewage suction factions:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Part 2 : JAC 5000L vacuum sewage suction truck

Product	JAC 4X25000L Vacuum Fecal suction truck
Cab	Single row,Left/right hand drive with AC
Chassis	Brand	JAC
	Chassis model	HFC1081K2F
	Drive type	4x2
	Tire Spec.	8.25-16
	Tire Numbers	6
	Braking System	Air braking
	Transmission	Manual
Engine	Model	ISF3.8S4141
	Horse Power(hp)	140
	Displacement(cc)	3760
	Emission	EuroIII/EuroIV
Main Parameters	Overall dimension (L*W*H/mm)	6860x2040X2800
	Wheelbase(mm)	3815
	Axles No.	2
	Max Loading capacity	6000
	Curb Weight(kg)	5300
	Leaf spring No.	6/5+5
upper	Material	Carbon steel
	Water Volume	3.15cbm
	Sewage volume	2.8cbm
	Thickness	5MM
	Vacuum pump	Ltaly pump
	High pssure pipe	60m(ø19)
	Pressure	16MPA
	Flow	125L/MIN
Modified Description	1. Tank Material: carbon steel, stainless steel;
	2. Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
	3. With pssure meter, liquid indicator and hand washing device.
Application	This truck is used for collect and transport large and small water content material like crude oil liquid substances,sewage sludge, silt, stones etc .
