Detailed Description

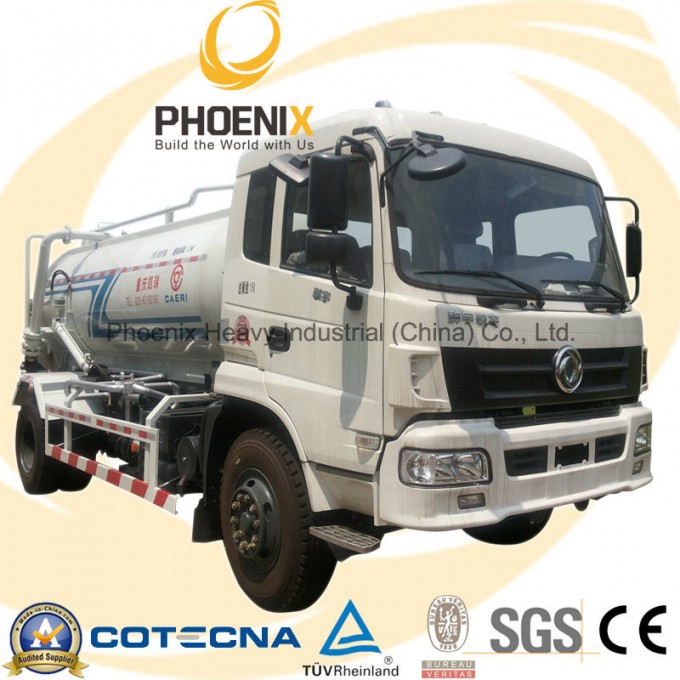

8 CBM 10m3 Sewage Suction Truck
Main Specifications&co
lon;
Chassis&co
lon; Do
ngfeng Chassis
Engine&co
lon; Do
ngfeng Cummins engine
Rated Power&co
lon; 136kw/185HP
Drive Type&co
lon; 4x2/LHD or RHD
Payload&co
lon; 6000kg
Tank Capacity&co
lon; 8-10CBM
1. Enough sewage volume degree.
2. Protecting device to pvent the sewage from seeping into the pump body.
3. Volume pump is driven by hand, easy to operate.
4. Hydraulic pump is working synchro
nously with the volume pump ,very reliable.
5. Discharging by hydraulic system.
6. Beautiful appearance, easy operation and good performance.
Specification: |
| Truck | Drive mode | 4×2 |
| Chassis | DFL1120B |
| Engine | Model | CumminsISDe180 30 |
| Type | 136/2500 |
| Power/Displacement(Kw/ml) | 4500 |
| Type of fuel | Diesel |
| Tyre | Size | 9.00-20 |
| Air conditioner | A/C |
| Dimensions | Overall dimension (mm) | 8600×2500×2830 |
| Wheel base (mm) | 4700 |
| Front/Rear tread(mm) | 1880/1860 |
| Performance | Max. speed(Km/h) | 90 |
| App./Dep. angel (°) | 20/11 |
| Max. gradability (%) | 30 |
| Min.turning diameter(m) | 19 |
| Min.ground clearance(mm) | 240 |
| Mass | Payload (Kg) | 5930 |
| Curb weight(Kg) | 5880 |
| G.V.W (Kg) | 12005 |
| Special functions | Specifications | Tank Volume (m³) | 10 |
| Tank overall dimension (mm) | 4500×1500 |
| Vacuum Pump Model | XD-44 |
| Suitable turning speed(r/m) | 500-600 |
| Suitable revolution(min/rpm) | 1400 |
| Max.Vacuum Degree(kPa) | 93-96 |
| Effictive Suction Length(m) | ≥7-20 |
| Fulling time(min) | ≤3 |
| Tank lifting time(s) | ≤10 |
| Alarm method | Electronic alarm |
Product Image
