Detailed Description
10m3 Sewer Vacuum with High Pressure Cleaning Truck
Chassis&co
lon; Do
ngfeng Chassis
Engine&co
lon; Do
ngfeng Cummins engine
Rated Power&co
lon; 139kw/190HP
Drive Type&co
lon; 4x2/LHD
Payload&co
lon; 7500kg
Tank Capacity&co
lon; 10m3 (High pssure cleaning tank&co
lon; 5m3, Vacuum tank 5m3)
Dimensions&co
lon; 8200×2495×3050mm
| Item |
|
| Chassis Model | Dongfeng EQ1141KJ |
| Diesel Engine Model | Dongfeng Cummins B190 |
| Displacement/ Rated Power | 7120ml /139kw |
| Tire and spare tires | 10.00-20 |
| Cabin | Flat Roof Cabin |
| Wheel base/ No. Wheel | 4500mm/2 |
| Axle | Front axle:5T / Rear axle:10T |
| Steel plate No. Spring | 8/10+8 |
| Oil Paint | metallic paint |
| High Pressure Pump Model | import pump P55/128-160G |
| Max. Flow | 127.8L/min |
| Max. Pressure | 160bar |
| Rotate Speed | 910 r/ min |
| Power | 41.8kw |
| Power Take Off | Dedicated |
| Pressure gauge | MP-1.6 |
| High Pressure Spray set | 10 sets |
| Self-return roll high pssure pipe | 60m |
| Tank Capacity | High pssure cleaning tank: 5m3 ,Vacuum tank 5m3 |
| Tank Material | Q235B (carbon steel) |
| Tank thickness | 5mm |
| GVW | 14900 kg |
| Payload | 7500 kg |
| Kerb Weight | 7205 kg |
| Dimensions (LxWxH) | 8200x2495x3050 mm |
| Max. Speed | 90 km/h |
The sewer vacuum with high pssure cleaning truck consist of Dongfeng chassis, water tank, waterway and oil-way system, rolling machine, cleaning pipe system and so on.
It uses the high-pssure pump to draw water from the water tank, and then drains the high-pssure water to the spray head through the high pssure pipe, next the spray head will get the pipe into the depths of the sewer because of reaction of high-pssure water, at the same time, cleaning the sludge in the sewer, going with the current into the well.
After that, the sewage will be drained by the vacuum pump system. |

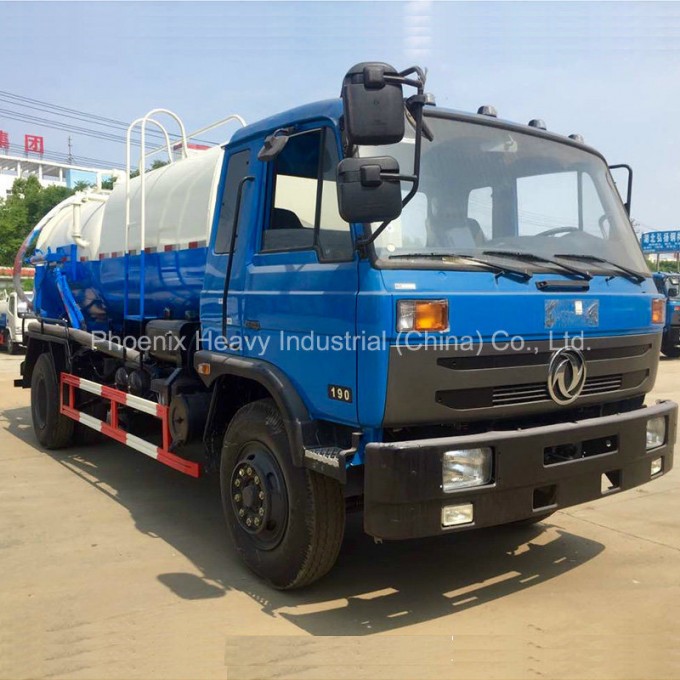

Product Image
