1m3-1000m3 Galvanized Agriculture Water Tank Large Volume Water Container

Hot Dipped Galvanized Steel Molded Water Tank


1. Catagory: Hot galvanized steel water tank
2. Standard: 12S101
3. Certification: ISO9001

Product Name	HDG water tank
Material	Hot galvanized steel
Panel size	1220*1220, 1000x1000, 1000x500, 500x500
Panel thickness	From 2mm to 6mm
Connection type	Bolt & nut

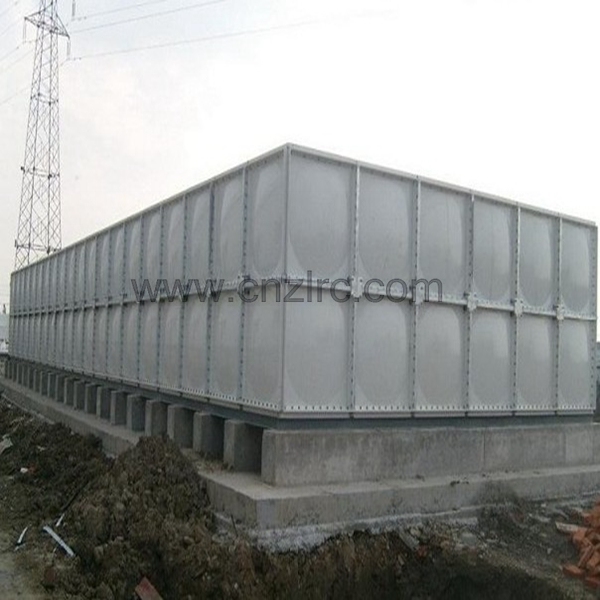

Foundation	Concrete foundation and U-steel bottom base
Accessories	Leaking stoppage, tiepiece, support, flange, sealing gasket, rubber strip, screws, tiepiece plant, ladder, washer, fasten clamp, water gauge.
Application	as the storage equipment for reclaimed water, fire water; widely used in mining, residential buildings, hotels, office buildings, schools, restaurants and otherpublic facilities.

Introducttion:
The hot dipped galvanized steel water tank is defers to the GB code 92SS177 manufactured new type water tank. The manufacture and the installment of tank have no influence of the construction. There are not needed the welding apparatus, the surface is hot dipped galvanized antiseptic treatment. It's artistic durable, pvents two times pollution to water quality and it is beneficial to human health. The water tank meets the construction product standardization, the serration and the factorization request.

This product uses the Q235 steel plate, ramming to1000*1000 and the 1000*500 standard plate, the peripheral drill hole, undergoes hot dipped galvanized processing. When it assembles between the standard plate clamps use the rubber packing and bold fastening.

Application:
This product is suitable for the construction water storing, the regulating tank, heating system's inflation water tank, the condensate tank as well as the building construction, the geological prospecting, the industry, the defense project and so on temporarily store water tank.

Specifications
This water tank volume has 24 kinds specifications, select for the design. The engineer also can design according to the water tank's length, width, high then factory assembles.

The inlet pipe, the outlet pipe, the overflow caliber and the position of water tank depends on the design. All around the water tank should have no less than 700mm channels, the bottom and the cover shouldn't be less than 600mm. When it is installed, the bottom and all around between the bottom standard plate's joins must be located on the support.



Standard Thickness for 1m x1m Tank Panel:

Type	1.0m(H)	2.0m(H)	3.0m(H)	4.0m(H)	5.0m(H)
5thside panels					5mm
4thside panels				5mm	5mm
3rdside panels			5mm	5mm	5mm
2ndside panels		5mm	5mm	5mm	5mm
1stside panels	5mm	5mm	5mm	5mm	5mm
Bottompanels	5mm	5mm	5mm	5mm	5mm

1. Material
The sectional panel tank shall consist of 4' x4' or 1meter x1 meter panel manufactured from 1.5mm to 4.0mm thickness according to requirement.
2. Flanges
The sectional panels shall be pssed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
3. Reinforcement Method
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. TheTop panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 materialaccording to requirement.

4. Accessories
1. Bolt. nut &washers stainless steel 304 material.
2. Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3. Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4.Ladders and Level Indicator: Internal &external ladder shall be made of stainless steel grade 304 material.







We are leader in producing the frp water tank. We have more than 30 years experience in producing the frp items. Our tanks are in high quality and competitive price in china. Expecially, we have completely after service and technical support. Any needs freely inform me. Iam here all the time.


FAQ
1.Q: Are you atrading company or amanufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
2.Q: Can your factory customize the machine for clients ?
A: Yes, we can.
3.Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
4.Q: How about after-sales service ?
A: 1year free warranty, Lifetime technical service support.
5.Q: How can Iinstall the production line and get acommissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.
6.Q: Do you provide training how to assemble the water tank?
A: Yes, we can provide training at our factory or send engineer to provide training in your country.
