Factory supply Eco
nomical SS/ SUS304 316 Welded Water Container

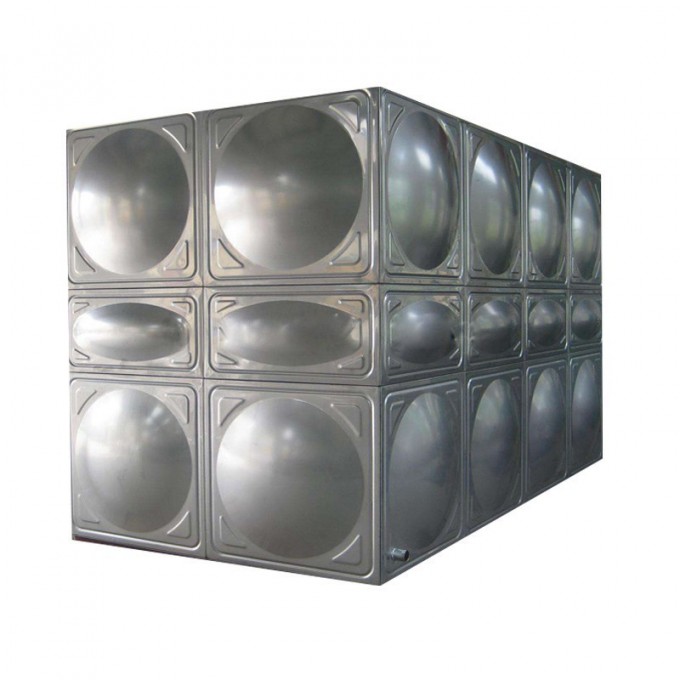

Stainless steel water tank is made from stainless steel 304 and 316,which is high quality steel in the world.So the stainless water tank is hygienic and durable. It is non-harmful and can be easily assembled by bolting them together. The tank can be assembled pcisely according to requirements due to the range of panels available with varying strength, thickness and dimensions.The panel are designed to meet the highest standards of sanitary storage of potable water.
Application:
Widely used in Industry--Mining--Enterprises--Public institution -- Residences -- Hotels-- Restaurant --Reclainmed water disposal--Fire controlling--Other buildings to serve as the water storage facilities for drinking water and other water storage usage.
Stainless steel panel specification:
Panel size: 1000*1000mm, 1000*500mm, 500*500mm
Panel thickness: 1--4mm
Volumn: 0.125--1000m3
Water tank accessories include inlet pipe, outlet pipe ,overflow pipe,draining pipe,ventilationhole,maintenance hole, ladders,floater and water level meter, etc.
Advantage:
Light Weight &High Strength;
No Rust &Long Service Life;
Food Grade Material &Healthy Uages;
Flexible Design &Free Combination;.
Reaso
nable Price &Co
nsiderate Service;
Easy to Install &Co
nvenient to Maintain;
Working Life is over 20 years with proper maintenance;
Stainless steel assembly water tank specification
| NO. | SIZE( mm) | Panel thickness |
| Volume CBM | L | B | H | Top panel | base panel |
|
|
|
|
| 1part | 2part | 3part | 4part |
| 1 | 1 | 1000 | 1000 | 1000 | 1 | 1.5 | 1 |
|
|
|
| 2 | 6 | 2000 | 2000 | 1500 | 1 | 1.5 | 1.5 | 1.5 |
|
|
| 3 | 10 | 2500 | 2000 | 2000 | 1 | 2 | 2 | 1.5 |
|
|
| 4 | 15 | 3000 | 2000 | 2500 | 1 | 2 | 2 | 1.5 | 1.5 |
|
| 5 | 20 | 4000 | 2000 | 2500 | 1 | 2 | 2 | 1.5 | 1.5 |
|
| 6 | 24 | 4000 | 3000 | 2000 | 1 | 2 | 2 | 1.5 |
|
|
| 7 | 30 | 5000 | 3000 | 2000 | 1 | 2 | 2 | 1.5 |
|
|
| 8 | 40 | 5000 | 4000 | 2000 | 1 | 2 | 2 | 1.5 |
|
|
| 9 | 50 | 5000 | 5000 | 2000 | 1 | 2 | 2 | 1.5 |
|
|
| 10 | 100 | 10000 | 5000 | 2000 | 1 | 2 | 2 | 1.5 |
|
|
| 11 | 500 | 25000 | 5000 | 4000 | 1 | 4 | 3 | 2 | 2 | 1.5 |
| 12 | 1000 | 25000 | 10000 | 4000 | 1 | 4 | 3 | 2 | 2 | 1.5 |
FAQ
1. Q: Can you make water tank according to the customer's requirements?
A: Yes, we can customize water tank for th ecustomer.
2. Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
3. Q: How a
bout after-sales service ?
A: 1year free warranty, Lifetime technical service support.
4. Q: Can you provide the sample?
A: Yes. We can send panel sample to customer.
4. Q: Can you provide training how tro assamble water tank?
A: Yes, we can provide training at our factory for free. Welcome to our factory!
We are leader in producing the water tank. We have more than 30 years experience in producing the frp items. Our tank mould and fiberglass filament winding machine are in competitive price in china. Any needs freely inform me. Iam here all the time.
