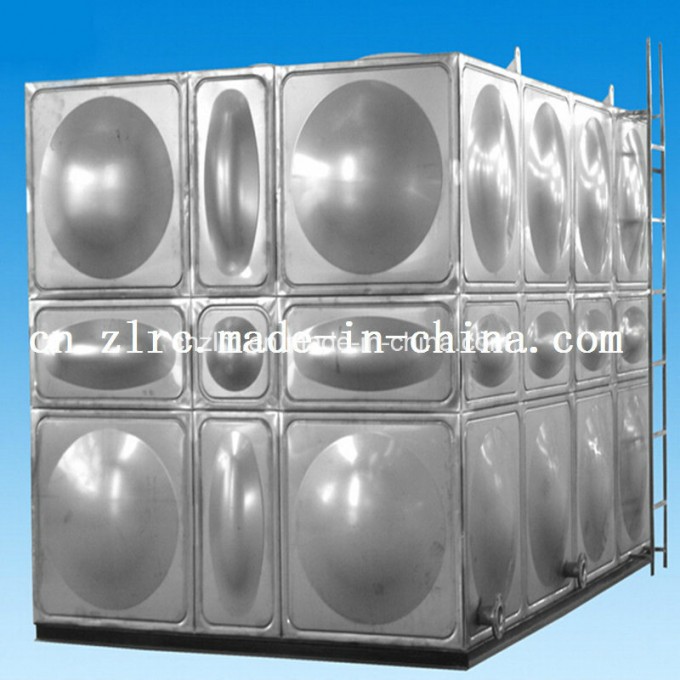

SUS 304 Food Grade Stainless Steel Water Tank Tank Container

Introduction


Stainless steel water tank use imported sus304 stainless steel material, meets the national health inspection standards,no rust, no green moss,no leakage, permanently maintain sanitation, steady and safe, use life is 15 times more than concrete water tank, and can be used in cold water, water purification, hot water, chemical solvents and so on.
Totally enclosed, there are inlet, outlet, overflow, sewage function, simple installation. You just need to put the tank on the roof, receive on conduit went, the maintenance is very convenient.

Specification

Stainless Steel Panel Size: 1.0m*1.0m, 1.0m*0.5m, 0.5m*0.5m
Stainless Steel Panel Thickness: 4mm,6mm,7.5mm,8mm,10mm and etc.
Water Tank Volume: From 1m³ to 5000m³
Accessories: Water inlet and outlet, Bolts, Sealing tapes, Draw rod, Flange connection,Ladder, base channel (C channel) etc.


Application

(1)Drinkng water supply and fire fighting water supply system
(2)Architectural water storage tank
(3)Boiler system of the supplementary water tank, heat pservation water tank
(4)It can be used in water purification, water treatment


Technical parameter:

Chemical Composition:

C	Si	Cr	Mn	Ni	P	S
≤0.07	≤1.00	18.00-20.00	≤2.00	8.00-11.00	≤0.035	≤0.030

Mechanical Property:

yield strength(N/mm2)	tensile strength	Elongation(%)	density
≥205	≥520	≥40	7.93g·cm

Installation Notes:
1, The water tank foundation requirements require the concrete foundation should meet GB02S101 national standards. The height difference of concrete foundation plane <5mm
2, Tank installation, construction and professional acceptance: surrounding the tank leaves ≥500mm maintenance space. Visual inspection: no rust, no pollution: filled with water 2-3h, the tank body has no significant deformation, no leakage. Then the water tank is qualified.

Stainless steel water tank and fiberglass water tank have similar prices, and with the increase of tank volume, the price decreases. The price of large water tank has similar price with cement tank, and can be used as apermanent liquid storage container.

Water tank features
1, Stainless steel water tank is assembled by square stamping stainless steel plates. The appearance is modern and contemporary.
2, The entire tank is aclosed type. The imported stainless steel plate's surface is smooth. It does not required much in daily cleaning. The water tank can't breed algae.
3, The tank type, shape according to the shape of houses, can be assembled as needed into the I-shaped, L, Z, etc., necessary shape.
4, The product is widely used in hotels, residential, commercial, production-oriented enterprises reservoir, the reservoir beverage and other purposes, the reservoir container for pharmaceutical industry, environmental protection industry, chemical industry, etc..
5, High-quality food grade stainless steel SUS304 can greatly extend the service life of the tank, and can better pvent secondary pollution of water.
6, The water tank structure is reasonable, unique and flexible. Reasonable plate design issuitable for combination of containers with various sizes.
7, High strength punching plate and stainless steel reinforcement ribs inside makes the water tank uniformly bear the pssure. Standard stamping plates 1000x1000mm, 1000x500mm, 500x500mm freely assembled on-site, without lifting equipment.
8, By using advanced stamping process, not only meets the maximum pssure need of the body, but also reduces the thickness of the material to meet the aesthetic and practical requirements.


Stainless steel water tank Packaging and Shipping (As customer's requiements)
No.1: naked package
No.2: iron and bracket package
No.3: plywood package.

Shipping: sea shipping and DHL, TNT, amd UPS, etc.


FAQ
1.Q: Are you atrading company or amanufacture factory?
A: Our factory is one of the biggest FRP products, FRP machines manufacturer in China
2.Q: Can your factory customize the the water tank for clients ?
A: Yes, we can.
3.Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
4.Q: How about after-sales service ?
A: 1year free warranty, Lifetime technical service support.
5. Q: How about your delivery time?
A: Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
6.Q: Can you provide training how to assemble the water tank?
A: Yes, we can provide training at our factory or send engineer to install water tank in your country.
