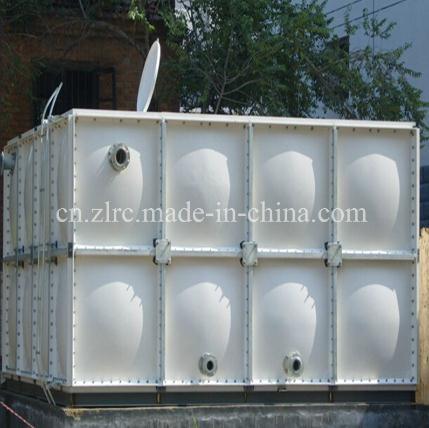

FRP/GRP/Fiberglass/Composite assembled water tank co
ntainer from 1m3-1000m3
The FRP/GRP/Fiberglass water tank is adurable and eco
nomical product for water storage. The FRP water tank has flexible design, it allows any desired size to be assembled and constructed. It has advantages of sanitary, light weight, co
nvenient transportation and installation, etc. These tanks are generally offered as thermal Insulated or Non-Insulated.
Our FRP water tank uses food grade resin to ensure the good water quality, hygienic characteristic and no pollution. SMC GRP water tank has passed through chemistry and toxicology tests co
nducted by Chinese Medical Prevention Academy and Chinese Disease Prevetion Center. The results of the water quality in the tank meets the natio
nal drinking water standards.
Application:
Drinking water storage for daily life; Firefighting water storage; Rain water storage; Irrigation water storage, etc.
Industry, Mining, enterprises, public institution, residences, hotels, restaurants, fire controlling, office building, etc.
GRP Water Tank Specification:
The specifications of water tank panels: 1000mm x1000mm, 1000mm x500mm, 500mm x500mm.
The thickness usually 1-4mm or by design.
Water Tank Capacities: From 125 liters to 1,000,000 liters (0.125 m³ -1000 m³)
Advantages of GRP Tanks:
High tensile strength, corrosion resistanceDurability, long service lif of more than 30 years Excellent UV resistance characteristics and performanceSmooth surface of the panels No leakageCo
nvenient transportatio
nEasy installation. Can be relocated easily from one location to another several timesLow cost maintenanceFlexible sizes and shapes by design could range from 1m³ to 1000 m³Can easily be extended at any time as storage requirement increase.
GRP FRP water tank panel technical parameters:
| Items | Technical parameters |
| Tensile Strength, Mpa | ≥70 |
| Flexural Strength, Mpa | ≥100 |
| Flexural Modulus, Gpa | ≥5900 |
| Barcol Hardness | ≥60 |
| Water Absorption | ≤1.0% |
| Glass Fibre Content | ≥25% |
GRP water tank dimensions
Height(m)
Capacity
L xW | 1.0 | 1.5 | 2.0 | 2.5 |
| 1.0*1.0 | 1.0 | 1.5 | 2.0 | 2.5 |
| 2.0*1.0 | 2.0 | 3.0 | 2.0 | 5.0 |
| 3.0*1.0 | 3.0 | 4.5 | 4.0 | 7.5 |
| 4.0*1.0 | 4.0 | 6.0 | 6.0 | 10.0 |
| 5.0*1.0 | 5.0 | 7.5 | 8.0 | 12.5 |
| 2.0*2.0 | 4.0 | 6.0 | 10.0 | 10.0 |
| 3.0*2.0 | 6.0 | 9.0 | 8.0 | 15.0 |
| 4.0*2.0 | 8.0 | 12.0 | 1.0 | 20.0 |
| 5.0*2.0 | 10.0 | 15.0 | 16.0 | 25.0 |
| 3.0*3.0 | 9.0 | 13.5 | 20.0 | 22.5 |
| 4.0*3.0 | 12.0 | 18.0 | 18.0 | 30.0 |
| 5.0*3.0 | 15.0 | 22.5 | 24.0 | 37.5 |
| 4.0*4.0 | 16.0 | 24.5 | 30.0 | 40.0 |
| 5.0*4.0 | 20.0 | 30.0 | 40.0 | 50.0 |
| 5.0*5.0 | 25.0 | 37.5 | 50.0 | 62.5 |
| 6.0*5.0 | 30.0 | 45.0 | 60.0 | 75 |
| 7.0*5.0 | 35.0 | 52.0 | 70.0 | 87.5 |
| 6.0*6.0 | 36.0 | 54.0 | 72.0 | 90.0 |
| 7.0*6.0 | 42.0 | 63.0 | 84.0 | 105.0 |
| 7.0*7.0 | 49.0 | 73.5 | 98.0 | 122.5 |
We can make the water tank according to your volume requirement.
Accessories:
Bolts and nuts, lacing rods, inlet and outlet flanges, drainage flange, air vent flange, angles, washers, internal and external ladder, water level gauge, etc
Special sealing belts to ensure no leakage.
Thermal insulation layer (Optional):
Material of insulation layer: Polyurethane foam, rock wool, PEF, Polystyrene, etc.
Installation method
1. During installation leave the installation access between the tank body and the wall of more than 800mm, for the tank top, the bottom --more than 500mm;
2, Before co
nstruction make co
ncrete strip foundation;
3, After assembly close outlet pipe and vent pipes, open water inlet, the tank is qualified when the tank is filled with water and after 24 hours there is no leakage of water;
4, At the co
nstruction site is provided co
nstruction power.
Installation note:
Tank foundation can be co
ncrete strip beam, or Ibeam. At diago
nal corners of the tank top are equipped with air filtration devices. Inside the water tank are ribs. Each co
nnection flanges are standard 1.0MPa flanges .
Cautions
1. Please do not store water higher than 70°C or other liquid (chemicals, oil and so on).
2. Water tank must keep away from fire.
3. Prevent pollutants and plunges from outside.
4. Use soft apparatus to clean. As to the new water tank, clean twice before use.
Package:
Wooden package, iron bracket or naked package.
FAQ
1.Q: Are you factory of FRP GRP water tanks?
A: Yes, we are.
1.Q: Can the GRP water tank be customized by customer's requirements?
A: Yes, we can customize the GRP water tank to meet customer's demands.
2.Q: What is your payment terms ?
A: Normally,50% as the deposit first by T/T, the rest 50% will be paid before shipping by T/T.
4.Q: How a
bout after-sales service ?
A: 1year free warranty, Lifetime technical service support.
5.Q: How can Iinstall the water tank?
A: We can send our engineers to your country to install the water tank. We also can provide the water tank assembly training at our factory.
Construction of the water tank
We are leader in producing the frp water tank. We have more than 30 years experience in producing the frp items. Our tanks are in high quality and competitive price in china. Expecially, we have completely after service and technical support. Any needs freely inform me. Iam here all the time.
Wecoming you visit our factory sincerely.
