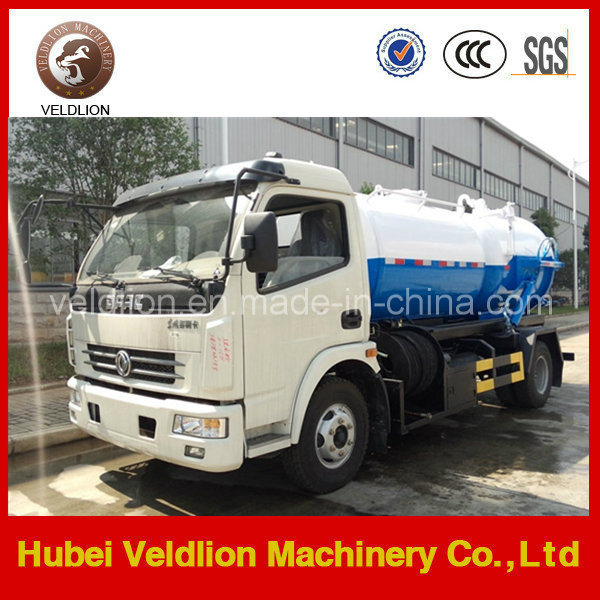

Dongfeng 4X2 6000liter/6cbm/6m3/6ton/6000L Vacuum Sewage Suction Truck

I . The structure of sewage suction truck
1.Chassis :
a.Drive type: 4x2,4x4,6x2,6x4,6x6,8x4 etc.
b.Our factory has good business relationship with FAW,SINOTRUCK ,DONGFENG,SHACMAN,JAC.JMC,FOTON,ISUZU,etc.
2.Tanker body:From 2m3 to 25 m3 capacity
3.Accessory of sewage suction factions:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.



II. Our factory introduction and main products
HUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. LPG tank &truck %trailer
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,



III. Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

IV. ConTACT INFORMATION
If you want to know more about our 12000L water and 3000L foam fire fighting truck, please do not hesitate contact with us as below:

HUBEI VELDLION MACHINERY Co., Ltd
ATTN: Real Liu
Mobile phone: +86 13656866460
Website: www.veldlion.com

V.PARAMETERS DATASHEET OF6000l vacuum sewage suction truck

Product	Dongfeng Dolika vacuum sewage sucking truck
Chassis type	EQ1090T9ADJ3AC
Cubage(m3)	6
Parameters	Overall dimension length/width/height (mm)	6650*2350*2550
	Total Mass(kg)	9400
	Payload(kg)	4700
	Kerb Mass(kg)	4505
	Approach angle/ Departure angle(mm)	20/12
	Front suspension/rear suspension(mm)	1180/1670
	Fuel Type	diesel
	Fuel Consumption/100 km	11
	Max Speed	99
Engine	Type	CY4102-E3C,ISDe140 30
	Displacement/Power(kw)	3856/91(123hp) ,4500/103(140hp)
	Manufacturer	Guangxi Yuchai Diesel Engine Co.,Ltd
	Type	4-in-line, inner-cooling supercharged diesel engine
Chassis	Drive type	4×2
	Wheelbase(mm)	3800
	Tread(front/rear)	1831/1640
	Front axle	2.4T
	Rear axle	4.2T
	Steering gear	Recirculating ball steering
	Transmission	5 forward gear,1 reverse gear,manual mechanical type
	Clutch	Uniwafer, dry clutch, hydraulic remote control
	Braking system	air braking,cam drum braking
	Cab	Non-long headed cabin
	Number of spring axle(front/rear)	11/9+7
	Tire Type	8.25-16,7.50-16,8.25R16,7.50R16
	Air-condition	Choose to fix
Sucking system	Sucking pump	Sliding-vane rotary vacuum pump
Special performance parameters	Vertical suction range	≥8
	Absolute pssure	8500Pa
	Rotation speed	500
	Theory pumping speed	98L/S
	Axis power	5.5kw
	Vent dia	50mm
	Suction Time	5s
	Drain time	4s
