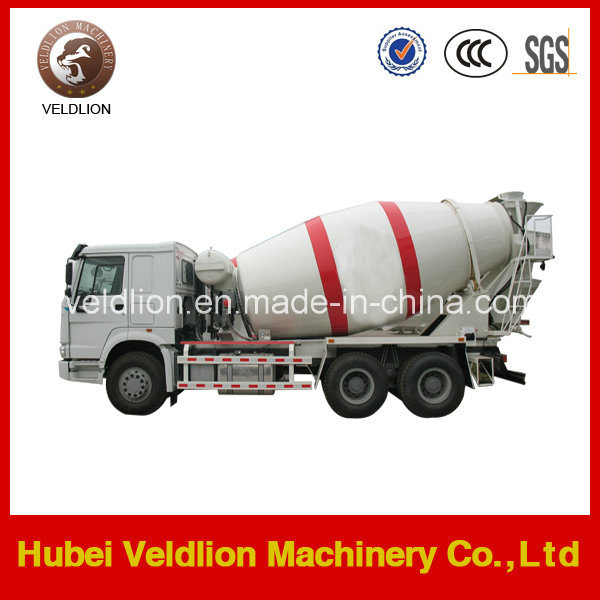

6*4 Drive Mode 10 Cubic Meters Concrete Mixer Truck

I.ConCRETE MIXER TRUCKSERIES


II .ConCRETE MIXER TRUCK DETAIL CABIN


III.PROFESSIonAL PACKING AND TRANSPORTATION


IV. MIXER TRUCKSPECIFICATION
Concrete truck/mixer truck/mixing truck/concrete mixer truckare made to transport and mix concrete up to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. With this process, the material has already been mixing. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

Chassisparameters
LxWxH(mm)		9135*2490*3810	9135*2490*3810	9810*2500*3985	9810*2500*3985
TotalWeight(kg)		25000	25000	25000	25000
DeviceWeight(kg)		13170	13170	13700	13700
AxleLoad(kg)		7000/18000	7000/18000	7000/18000	7000/18000
Wheelbase(mm)		3800+1350	3800+1350	3800+1350	4000+1400
Wheelbase (Front/Back)(mm)		19391850/1850	19391850/1850	20361850/1850	20361850/1850
MaxSpeed(km/h)		77	77	77	77
MixingDrum
Mixingvolume		8m3	9m3	10m3	12m3
Geometricalarea(m3)		13.94	15.18	17.9	20.5
EffectiveMixing Volume(m3)		9	10	12	14
MixingCapacity(m3)		5	5	5	5
DrumInnerMax Diameter(mm)		2300	2300	2400	2400
DrumLength(mm)		4750	5039	5474	6069
AngleofInclination		13	13	12	10.8
Mixingspeed(r/min)		0-14	0-14	0-14	0-14
Slump(mm)		40-210	40-210	40-210	40-210
Hydraulicsystem
Oilpumptype /Maxworkingpssure		REXROTH/EATON/SAUER
		42*90	42*90	42*90	41.5*105.5
Motortype /Maxworkingpssure		REXROTH/EATON/SAUER
		42*80	42*80	42*80	41.5*105.5
GearReducertype /Maxworkingtorque /speedratio		PMP/SAUER/TOP/BONFIGLIOLI
		60000/99.9	60000/102.8	65000/120.3	75000/129.94
Oilcoolertype/Volume		FLJ-9XYLF-201A
		18
Watersupplysystem
WatersupplyMode	CompssedAirMode
WaterTankCapacity(L)	450

1. Concrete mixer truck Chassis Model: HOWO, SINOTRUK, NORTH BENZ, SHACMAN, DONGFENG, AUMAN, tec.
2.Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: Euroand Euroemission standard;
5.Right/Left hand drive ;

V.COMPANY INTRODUCE

HUBEI VELDLION MACHINERY CO., Ltd is an authorized truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.

Createvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.


VI .OUR MAIN PRODUCT:

1. Dump Truck/Tipper Truck
2. Fire Fighting Truck
3. Truck with Crane
4. Semi-Trailer and Tractor Truck
5. Water Tank Truck,
6. Fuel Tank Truck,
7.Concrete mixer truck,
8. Fecal suction truck, sewage suction truck,
9.Light Cargo Truck,Mini Truck,
10. High-altitude operation truck,
11.Garbage Truck,CompactorGarbage Truck, Sealed Garbage Truck,
12. Bulk Cement Truck, Powder tank truck
13.Chemical liquid tanktruck
14. Van truck, insulated truck, Refrigeration Truck
