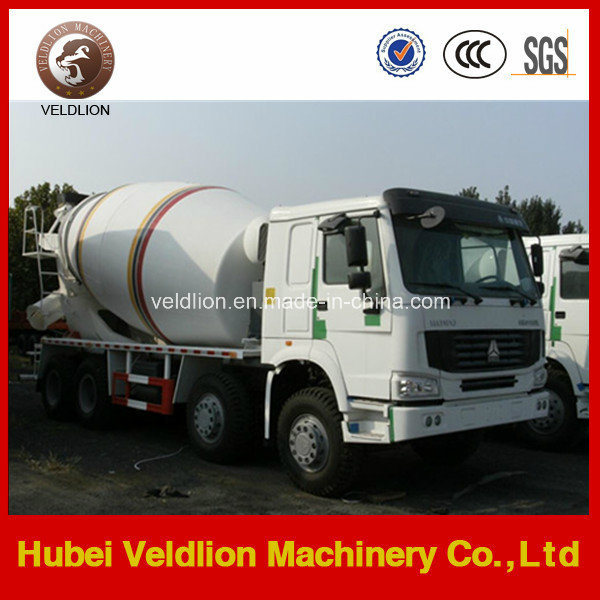

1. Concrete mixer truck
(1) Main specification data of this truck
| Chassis | ZZ1317N3667 |
| Engine | Make:Sinotruk |
| Diesel: 4-stroke direct injection Diesel engine | |
| Engine model: WD615.47 Euro 2 | |
| 6-cylinder in-line with water cooling, turbo-charging and inter cooling | |
| Maximum output:371 hp(273KW)at 2200 rpm | |
| Maximum torque: 1500 Nm at 1600 rpm | |
| Clutch | Single-plate dry clutch,hydraulically operating with air assistance |
| Transmission | HW19710 , 10 forward & 2 reverse |
| Ratio: 14.08 , Max.toque:1900Nm | |
| Front Axle | HF9 Disk Max.Loading:9000Kgs |
| Rear Axle | HC 16 Max Loading:16000Kgs |
| Steering | ZF 8098 Power Steering and Left Hand Driving |
| Brakes | Service brake: dual circuit hydraulic compssed air brake |
| Parking brake: internal expanding mechanical brakes at the rear of transmission | |
| Auxiliary brake: vacuum assisted brake | |
| Wheels & Tyres | Tyre: 12.00-20 |
| Cab | HOWO76,one bad ,New Seat . Air condition,VOD Panel,Double locking structure belts,sun shade outside,cruise |
| Color&Logo | According customer'Requirement |
| Max.Speed | 75 Km/h |
| Fuel Tank | 350L |
| Dimensions(mm) | Wheel base 1800+3600+1350 |
| Front gauge 1320 | |
| Rear gauge 2515 | |
| Front overhang 1500 | |
| Rear overhang 1275 | |
| Approach angle(°) 20.5 | |
| Departure angle(°) 22 | |
| Overall dimension(L x W x H mm) 11010x2500x4030 | |
| Weight(kg) | Dead weight 17800 |
| Rated loading capacity 13200 | |
| Gross vehicle weight 31000 | |
| Body | Body dimensions(mm) 8715X2500x2910 |
| Body Weight(KG) 6500 | |
| Geometric Volume(M3) 24.73 | |
| Mixing Volume(M3) 16 | |
| Stuffing Volume(%) 64.7 | |
| Feeding Speed(M3/min) ≥3 | |
| Discharging Speed(M3/min) ≤2 | |
| Discharge Residue(%) ≤0.2 | |
| Slump Scope(mm) 50~220 | |
| Drum Speed( Min) 0~16 | |
| Obliquity 10 | |
| Pump imported from Italy ARK PV089 | |
| Motor imported from Italy ARK MF089 | |
| Reducer TOPUNIOn P 90 | |
| Water supply System 400L/Pneumatic water supply | |
| End socket Use steel plate 8/16MnR ,Drum Use steel plate 6/B510. |
(2) We can offer various kinds of concrete mixer truck. Truck brand: Dongfeng, ISUZU, SINOTRUK HOWO, FOTON,SHACMAN, FAW, YUEJIN, JAC ,Drive model : 4x2 , 6x4, 8x4,
Tank volume: 1-16m3
(3) More concrete moxer truck truck photos for your reference
(4) Concrete mixer truck main parts
(5) Concrete mixer truck workmanshop
2. Shipping photos
By roro ship or bulk ship
3. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.
Creatingvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
4. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.
Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
5. Contact us
Atten: Coco. Tian
Tel: 0086-17771878326
www.veldlion.com
