Detailed Description
Engine&co
lon; Cursor9 Engine EURO3 (IVECO Technology)
Rated Power&co
lon; 340HP
Drive Type&co
lon; 6×4/LHD
Cabin&co
lon; Flat roof with one bed/ C100
Kerb Weight&co
lon; 12 tons
Mixer Body Volume&co
lon; 9 m3
Specifications&co
lon;
| Vehicle type: | QYZ525-8 4GJBCA |
| Chassis type: | CQ5254GJBHTG384 |
| Drive type: | 6X4 LHD |
| Wheel base: | 3825+1350mm |
| Overall length: | 9325 mm |
| Overall width: | 2500 mm |
| Overall height: | 3970 mm |
| Vehicle frame: | 865 mm/280mm 8+5mm
|
| Approach/departure Angle | 23/14(°) |
| Kerb weight: | 12 tons |
| Max weight: | 25 tons |
| Max speed: | 80 km/h |
| Tyre: | 12.00R20 Radial tire |
| Fuel tank | 400L |
Engine&co
lon;
| Engine : | SFH Cursor9 F2CE0681C*B052 |
| Cylinder NO: | 6 |
| Fuel type: | Diesel |
| Displacement : | 8.709L |
| Emission standard: | Euro III |
| Max power: | 340 HP |
Cabin&co
lon;
| Cabin : | Flat roof with one bed/ C100 |
| Person : | 2 |
| Turn over of Cab | Manual |
| Configuration | Cabin electrical tilt, Automatic air condition, Drive air seat, Passenger spring seat, Remote control lock, CD player, Cab air suspension, Electric heated mirror, 12V external power source, CAN BUS system. |
Gearbox&co
lon;
| Gearbox : | FAST RT-11509C |
| Lift: | Manual |
| Drive shift: | 9 |
| Reverse: | 1 |
Drive axle&co
lon;
| Drive type: | Unitary double reduction drive axle |
| Drive axle allowable load: | 16000KG |
Mixer Body&co
lon;
| Mixer body volume: | 9 m3 |
| Thickness of body | 4.5 mm |
| Material of body | Baosteel brand-High strength wear-resisting steel |
| Reducer | ZF4300 |
| Oil pump | Rexrth brand 90 |
| Hydraulic motor | Rexrth brand 80 |
| Radiator | AKG brand |

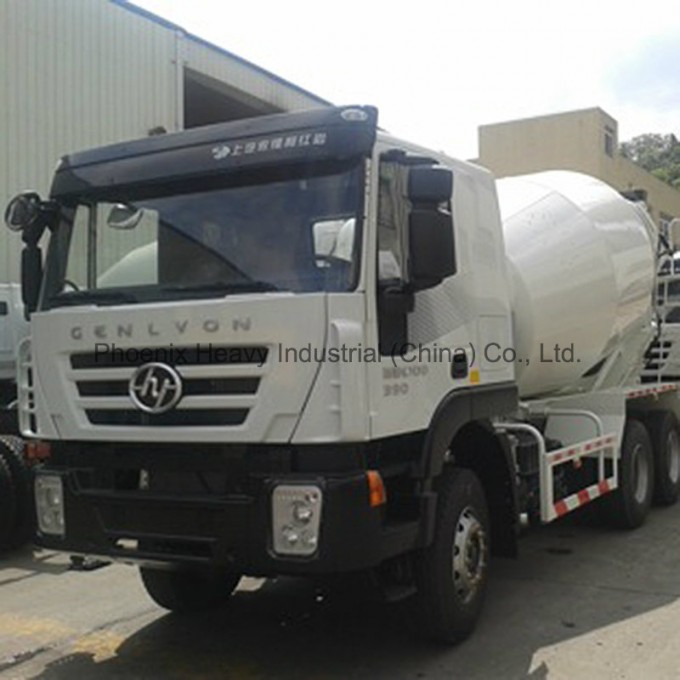

Product Image
