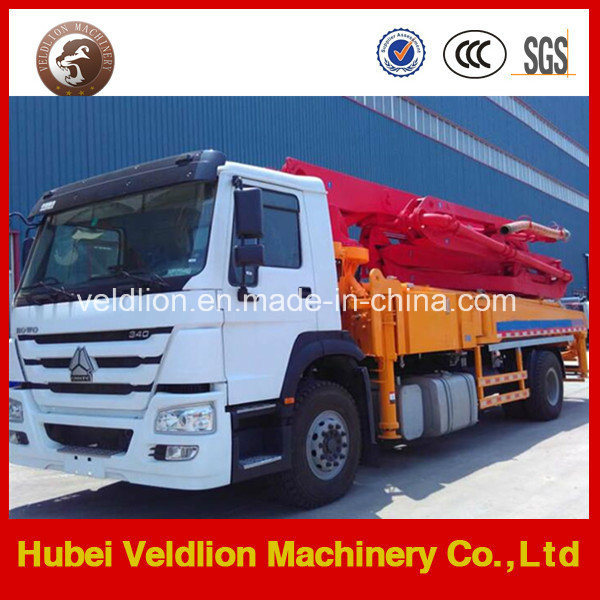

| CHASSIS | Chassis | SINOTRUK |
| Power and rated speed of engine | 200p/2000rpm | |
| Wheelbase | 5200 | |
| Max driving speed | 80km/h | |
| Vehicle approach angle/departure angle | 24.6°/15.6° | |
| Tire type | 10.00R20 18layers | |
| BOOM SYSTEM | Max concrete placing height | 32.8m |
| Max concrete placing radius | 29.3m | |
| Max concrete placing depth | 18.5m | |
| First arm length(MM) | 7300 | |
| Second arm length(MM) | 5600 | |
| Third arm length(MM) | 5600 | |
| Fourth arm length(MM) | 5400 | |
| Fifth arm length(MM) | 5400 | |
| Arm foldable angle | 90/180/360/540/720 | |
| Boom control system | Load sensing proportion control system | |
| Arm folding form | M type | |
| Turret rotation angle | 90° | |
| Front support leg span | 6000 | |
| Back support leg span | 7000 | |
| The leg longitudinal distance (MM) | 6380 | |
| Leg opening type | X | |
| Trail length of hose | 3000mm | |
| Diameter of pipeline (MM) | 125 | |
| Electrical controlsystem | CPS | 24v |
| Control model | PWM | |
| Working voltage | 24 | |
| Electric parts | OMRON | |
| Wireless remote control | Chinese famous brand | |
| Hydraulic ntransmissionsystem | Hydraulic system type | Open circuit |
| Rated working pssure | 31.5Mpa | |
| Main oil pump | HANDOK from South Korea | |
| Main oil pump model | A11VO190,K3V180 | |
| Main oil pump capacity | 190,180 | |
| Electro-hydraulic directional control valve | imported or Domestic | |
| Suction and back oil filter | Liming(domestic) | |
| Jib multi-way valve | HAWE | |
| Jib balance valve | Italy | |
| Jib oil pump | Domestic | |
| Support leg multi-way valve | Italy | |
| Safety valve | imported | |
| Oil cylinder hydraulic seals | Parker | |
| Hydraulic hopper capacity | 450 | |
| Hydraulic oil cooling | Air-cooling | |
| Main oil cylinder | XIELI(domestic) | |
| Transfer case | Germany STIEBEL or domestic | |
| Slewing reducer | Domestic brand | |
| Hose connection | Eaton | |
| Cleaning system | Air pssure or plunger pump | |
| DIMENSIONS&WEIGHT | Total length of vehicle(MM) | 9370 |
| Total width of vehicle(MM) | 2350 | |
| Total height of vehicle(MM) | 3610 | |
| Total weight of vehicle(T) | 19.5 | |
| PUMPING SYSTEM | The type of distribution valve | S valve |
| Concrete piston | Domestic | |
| Max. outlet pssure(H/L) | 10/5 | |
| Concrete cylinder Dia xStroke | 200/1450 | |
| Max. feeding height(MM) | 1450 | |
| Hopper capacity( M3 ) | 0.65 | |
| Concrete slump | 160-220 | |
| Allowable max diameter of aggregate(MM) | 40 | |
| Lubricating model | Centralized automatic |
| 1.Chassisand Power system | ||
| Chassis adopts SINOTRUK,FAW, FOTON, DONG FENG chassis, strong carrying capacity, good dynamic performance and low fuel consumption. You can choose the separate power or chassis power. The separate power is low fuel consumption and repaired easily. | ||
| a. Emission system is up to EURO III/ National IV standard, low noise and easy to repair. | ||
| b.Oil pumps adopt constant power technology with reasonable power collocation to the engine. | ||
| 2.Jib structuresystem | ||
| a.High strength low alloy steel plate, all materials and welding line by 100% non-destructive technology ensure the jib structure reasonable and highly reliable. | ||
| b. "M" type arms with speed stepless adjustment, pssure compensation and load sensing proportion control system ensure the arm running freely and excellent operating performance. | ||
| 3.Hydraulic | ||
| a.Pumping system is open circuit, no shock, no peak value and ideal temperature control. | ||
| b.Oil cylinder piston rod seals adopt imported combined seals with good sealing effect and strong waterproof performance. Piston seals adopt multiple durable piston rings. | ||
| c. Swing oil cylinders adopt piston cylinders sealed by 0K seals with good sealing and buffering effects, ensuring long time and stable working | ||
| d. Lubricating system adopts fully automatic oil supply and multiple filtration technology, effectively extending the service life of wearing parts. | ||
| e. Oil pumps on arms adopt axial piston pumps with load sensing variable. The output could be according to the actual working needs, reducing power loss and system heating. | ||
| 4.Electric lControl | ||
| a.Schneider relay imported from France, high reliability and automation. | ||
| b.Panel control and wireless remote control devices are both equipped and easy to operate. HBC or Appollo remote controller imported from Germany accord with the principles of human engineering design with beautiful shape, easy operation and flexibility. | ||
| c.Multiple alarming devices ensure machine working with high security. | ||
| d.Oil energy-saving control: Energy-saving control technology, researched and developed by our company, ensures the output power of engine matching automatically along with load changing, making fuel loss to a minimum. | ||
| e.Friendly man-machine interface: High humanized man-machine interface could quickly enter the information page you want to browse and get all the information you need. | ||
| f.Safe operation control technology: Effective error-proof operation control design ensures the system more reliable and safe. |
