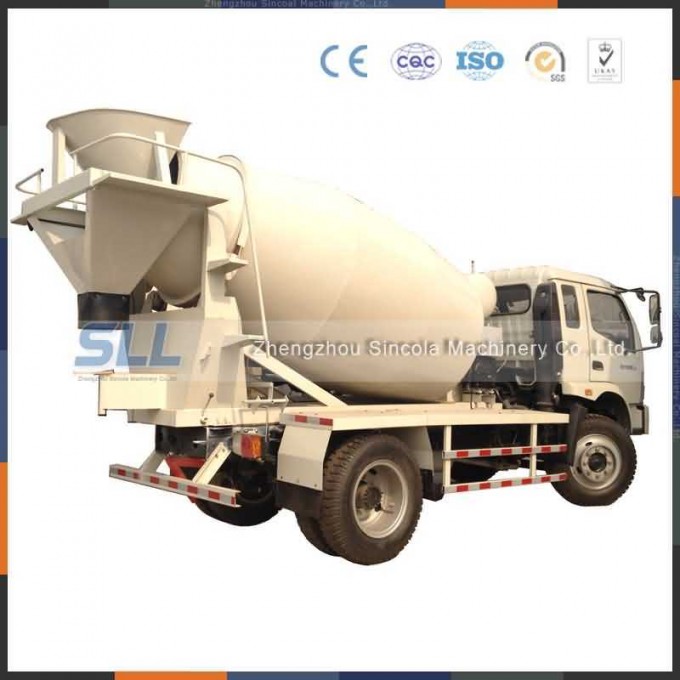

High Efficient Concrete Mixing Transportation Truck for Sales/Plant Manufacturers

high efficient concrete mixing transportation tank for sales/plant manufacturers

Product Description

Concrete Mixer Tank Semi Trailer can be used to improve transportation efficiency as well as to reduce transportation costs, thus reducing your product costs and achieving mechanization in loading, transporting, unloading, and storing.

The main components are chassis (including the towing chassis), tank assembly, power takeoff driving system, air source system, and air path and its control system.

Concrete Mixer Tank Semi Trailerenjoys high average unloading speed, and low residual ratio. The unloading speed is more than 1.2T/min, and its residual ratio is less than 0.3%.

Functions

1. This series concrete mixer semi trailers are mainly used in construction transportation for concrete/ cement.
2. The volume varies widely from 5cube meters to 40 cube meters, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The tanker body is made from Q235B carbon steel.

Services

1.3C&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2. Small Order Can Be Accepted.
3. Any Color & Logo Available
4. The Product Dimension + Specifications Can Be Designed As Your Needs

Product advantages:

1.450Lultra-highcapacitywatertank,meettheuser'sdemandforflushingohvehiclebodyandthe

glasslevelgaugeisequipped,hightransparency,strongpssureresistance,safetyanddurability;

2.Humanizedpunchedladderfootrest,betteranti-skidandsaferoperations;

3.Characteristicspirallinedesignoftankbody,fastdischargespeedandhighefficiency;

4.Uniqueexternallysteelwirewrappedhydraulicpipe,betterpventtheburstofhydraulicpipe;

5.Environmentallyfriendlyplasticdustcover,guardsagainstdust,restrainsthelubricatingoil,reduces

theenvironmentcontaminationandprolongslifeofsupportwheel;

6.Deepened,widened,andthickenedanti-weardischargechute,whileeliminatinganypossibilityof

materialoverflowatthetimeofdischarge,itpromotesthedischargespeed;

7.Humanizedchutebaffle,whileeasingtheoperationsbyuser,itpventsthecontaminationofthe

splashingconcreteontotheroadduringthetransport;

8.Triple-linkedcontrolsystem,thecontrolsystemrealizesthetriple-linkedcontrolwithinthecabin

andontherightandleftsidesofthetail.

Packagingand Delivery

Export standard container-20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight

20~30 working days after receiving down payment



Technical parameters

8CBM ConCRETE MIXER SEMI TANK TRAILER
Tare Weight		10800kg		Overall Length	9995mm
Overall Width		2495mm		Overall Width	3780mm
Tank
Capacity			8CBM
Mixing Tanker Sloping Angle			14, 12,10 degree
Mixing Tanker Revolving Speed			12-20 (r/min)
Key Accessories
Engine			Diesel engine or electrical motor
Hydraulic Pump			American Eaton or Italian TOP hydraulic pump
Hydraulic Motor			American Eaton or Italian TOP hydraulic motor
Gear Box			American Eaton or Italian TOP gear box
Chassis	Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm.
Axles	2 axles, Fuwa
Suspension	Mechanical suspension/
Leaf Spring	8-piece leaf spring
King Pin	2 Bolt-in King Pin
Landing Gear	Two-speed, manual operating, heavy duty landing gear
Tyre	11.00-20, 12.00-20, 11.00R20, 12.00R20, 11R22.5, 12R22.5-Optional
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Others: Other Size/dimension or configurations will be available by customeri-zation.

Company introduction

Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise established in 2001, professionally engaged in the R&D and manufacturing of dry mortar production line.
We have 100 staffs full-time, more than 10 people with middle and senior titles and technical, building area of 9000 square meters.

Our main products:
Automatic dry mortar production line, semi-automatic production line of dry mortar, 1-5 tons of small dry mortar production line, putty powder mixer, really stone paint mixers, vitrified microsphere, mixer, inorganic insulation mortar equipment, dryers and dry mortar equipment hoisting machine, conveyor, vibrating screen, metering, dust removal, raw material warehouse, etc., construction, building materials, chemical industry, powder, mortar, putty, paint, metallurgy, environmental protection and other industries.

Our company in dry powder, mortar, putty powder, really stone paint, insulation mortar, coating and other complete sets of engineering equipment design, installation and debugging, provide reasonable solution, and focused on the investment scale of each customer, plant conditions, material type, logistics transportation condition, and different conditions and requirements, such as product formula, design a set of perfect and suitable for user's complete sets of equipment production line.

Our Services
1. Factory visiting is welcome, free hotel booking and airport pick up service.
2. Engineers will go to clients' site for installation and running test guidance.
3. 12 months warranty.
4. We do the designs according to customers' requirement.
