2016 China Elevator Door Drive and Elevator Counterweight

China double cage construction lifting equipment price

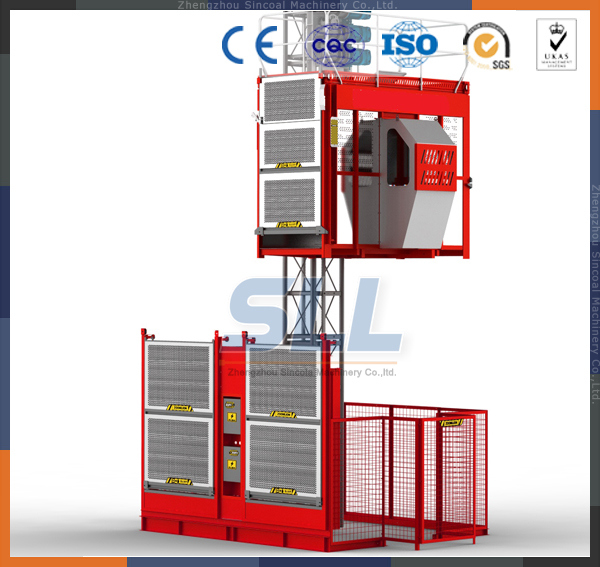

Double Cage
Capacity: 2000Kg/2000Kg
Speed: 36m/min
Three motor & Gear box on the top.
Frequency Control
Cage Dimension: 3200 * 1500 *2200mm, 3800 *1500*2500mm (L*W*H)
Section Dimension: 650*650*1508mm/ 800*800*1508mm

Hoist Type		Main Specification
		MODEL	Payload(kg)		Speed (m/min)
Single cage	SC100D		1000	36
	SC200D		2000	36
Twin cage	SC100/100D		2×1000	36
	SC200/200D		2×2000	36
Single cage	SC100D		1000	0-40
	SC200D		2000	0-40
Twin cage	SC100/100GD		2×1000	0-40
	SC200/200GD		2×2000	0-40
Single cage	SC120Z		1200	0-63
	SC200Z		2000	0-63
	SC270Z		2700	0-63
Twin cage	SC120/120Z		2×1200	0-63
	SC200/200Z		2×2000	0-63
	SC270/270Z		2×2700	0-63
Single cage	SC200G		2000	0-96
	SC270G		2700	0-96
Twin cage	SCD200/200G		2×2000	0-96
	SCD270/270G		2×2700	0-96
	SCD320/320G		2×3200	0-96

2016 China elevator door drive and elevator counterweight

1.MastsectionweldedbyweldingRobotensuresreliablequalityandelegantappearance.

2.Allthesteelstructuresareprocessedwithblastingtechnologytoremoverust.Theadhesionof

surfacepaintingisoutstanding.

3.Suspensioncageguardingboardadoptsfiguredaluminumplateandnumericalcontrolpunched

aluminumplate.Thesuspensioncageislightweightandartisticinappearance.

4.Transmissionmechanismsuppliedbytheprofessionalmanufacturerhashighefficiency,long

servicelifeandstabilityinperformance.

5.Completesetofoverloadprotectiondevices,varietyoflimitersandmechanicalchaindevices

ensureitsreliability.Anti-fallingsafetydeviceadoptsSAJ40-1.2,whichrestrictstheexcessive

downwardmovementofthecage,pventingandeliminatingaccidents.
