Detailed Description
SC200/200 Co
nstruction elevator
Double Cage
Capacity&co
lon; 2000Kg/2000Kg
Speed&co
lon; 36m/min
Three motor & Gear box on the top.
Frequency Control
Cage Dimension&co
lon; 3200 * 1500 *2200mm, 3800 *1500*2500mm (L*W*H)
Section Dimension&co
lon; 650*650*1508mm/ 800*800*1508mm
Hoist Type | Main Specification |
MODEL | Payload(kg) | Speed (m/min) |
Single cage | SC100D | 1000 | 36 |
SC200D | 2000 | 36 |
Twin cage | SC100/100D | 2×1000 | 36 |
SC200/200D | 2×2000 | 36 |
Single cage | SC100D | 1000 | 0-40 |
SC200D | 2000 | 0-40 |
Twin cage | SC100/100GD | 2×1000 | 0-40 |
SC200/200GD | 2×2000 | 0-40 |
Single cage | SC120Z | 1200 | 0-63 |
SC200Z | 2000 | 0-63 |
SC270Z | 2700 | 0-63 |
Twin cage | SC120/120Z | 2×1200 | 0-63 |
SC200/200Z | 2×2000 | 0-63 |
SC270/270Z | 2×2700 | 0-63 |
Single cage | SC200G | 2000 | 0-96 |
SC270G | 2700 | 0-96 |
Twin cage | SCD200/200G | 2×2000 | 0-96 |
SCD270/270G | 2×2700 | 0-96 |
SCD320/320G | 2×3200 | 0-96 |
SC series co
nstruction hosits have features as following&co
lon;
1.Reliablequality,longlifespan,wideapplicationrangeandconvenientmaintenance.
2.Keypartsofdrivingsystemareim
portedandcustomizedwithreliablequality.
3.Theelectricalpartsarefromworld-famousmanufactures,suchasSchneider,SiemensandToshiba.
4.Theracksandgearsadoptspecialmaterialandheat-treatmenttechnique.
5.Thesteelstructureisfromfamousdomesticmanufactureswithhighquality.Thesurfaceofthestructurecanadoptpaint-sprayorhotgalvanizedaccordingtoyourrequirements
6.Thesoftstartingandbrakingmakesnoimpactandthemachinecanbeoperatedeasilyandsmoothly.
7.Thesystemhasover-voltageprotection,low-voltageprotection,over-current,over-loadandoverspeedprotectionfunctions.

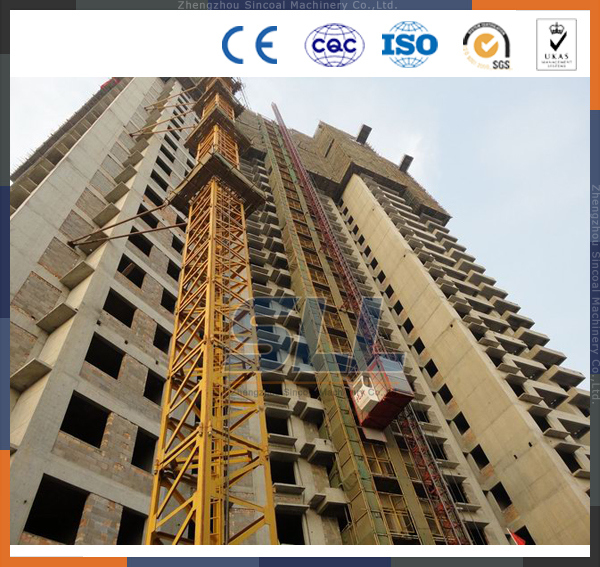

Product Image
