Self Loading Concrete Cement Mixer Truck Chinese Manufacturer

Welcome to inquiry:self loading concrete cement mixer truck Chinese manufacturer


Introduction Of electric mobile concrete mixer pump:

Concrete mixer pump construction operation system can be used in all automated, all material mixing, high pssure pumping as one. Electric mobile concrete mixer pump, Double cylinder hydraulic pumping system, hydraulic system greatly enhance the stirring concrete pump overall reliability and ensure pump strive foolproof work under harsh conditions.

Mortar Concrete Mixer Pump Application:

Concrete Mixer With Pump, it is widely used to mixing and pumping the concrete for construction project. What's more, mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc


Technical parameters of Concrete Mixer Pump:

No.	Model	JBT30S-13
1	Mixing Capacity	15m3/h
2	Pumping Capacity	30m3/h
3	Mixing Power	8 KW
4	Winding Motor Power	4.5KW
5	Pumping Motor Power	37KW
6	Max. Size of Aggregates	Rubble 40mm pebble 30 mm
7	Hopper capacity xDischarge Height	600x1070mm
8	Distribution Value	S Valve
9	Cleaning Method	Water Cleaning
10	Overall Dimensions L×B×H	5112×2091×3514mm
11	Weigh	4800 kg

Feature of Concrete Mixing Pumps:
Mixing system:
Double motors for mixer mixing with features of quick and homogeneous mixing.
Grinding wheels for mixing drum rotation, stable and reliable.
Vibrating device for aggregate complete discharging.

Pumping system:
Fully hydraulic pumping system with double concrete cylinders and double oil cylinders, stable and reliable.
Hydraulic parts are famous brands from home and aboard with high and reliable quality.

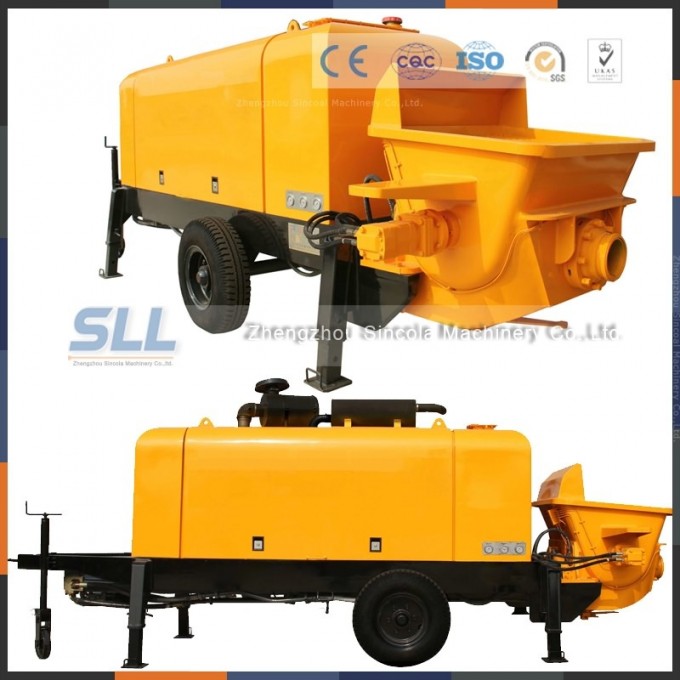

Concrete Mixing Pump pictures for your reference.

Packing and Delivery of electric mobile concrete mixer pump:
All Concrete Mixer and pump machine and machine part is loading in one feet container


self loading concrete cement mixer truck Chinese manufacturer
Any questions or requirement, please email me.

Thank you.
