Us Type Drop Forged Steel G209 G210 Marine Shackle

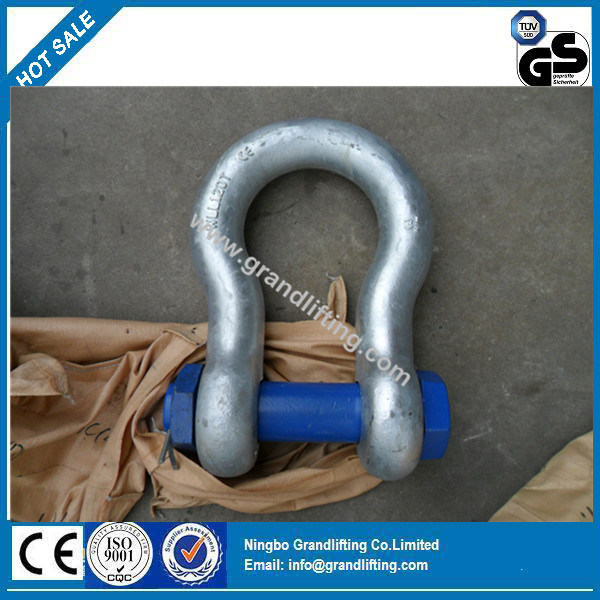

U. S. Type G209 Bow Type Screw Pin Anchor Shackle
Production Standards: American standard, Japanese standard, German standard, European
Surface: Galvanized (hot dip and electroplating), painting, self colored, zinc plated
Process: Drop forged
Packing: Gunny bag, wooden case, plastic drum.

Welcome to look through our website:www.grandlifting.com

ITEM NO	Nominal Size	Working Load Limit	Dimensions(mm)											Weight each
	(in.)	(tons)	A	B	C	D	E	F	G	H	L	M	P	(kg)
ZHG209-1	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
ZHG209-2	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
ZHG209-3	5/16	3/4	13.5	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85	0.09
ZHG209-4	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65	0.14
ZHG209-5	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2	0.17
ZHG209-6	1/2	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
ZHG209-7	5/8	3-1/4	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5	0.62
ZHG209-8	3/4	4-3/4	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6	1.07
ZHG209-9	7/8	6-1/2	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6	1.64
ZHG209-10	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
ZHG209-11	1-1/8	9-1/2	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8	3.36
ZHG209-12	1-1/4	12	51.5	35.1	119	32.8	92.5	76	146	210	17.5	156	35.1	4.31
ZHG209-13	1-3/8	13-1/2	57	38.1	133	36.1	92	84	162	233	19.1	174	38.1	6.14
ZHG209-14	1-1/2	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1	7.8
ZHG209-15	1-3/4	25	73	51	178	46.7	127	106	225	313	25.4	231	57	12.6
ZHG209-16	2	35	82.5	57	197	53	146	122	253	348	31	263	61	20.4
ZHG209-17	2-1/4	42.5	95	65	220	57	160	143	274	32	33	321	66	32
ZHG209-18	2-1/2	55	105	70	267	69	184	145	327	453	35.1	330	79.5	38.9

AllouractivitiesareaccreditedtoISO9001andbasedondeliveringthehighestqualitypossible,bothinproductsandservices,ensuringlongtermbenefitsandoptimumperformance.

Alsowegotthebelowcertification:CEGSSUV,LRABS(anchorsandanchorchains)OurrigginghardwareismanufacturedunderexceptionalquantitycontrolandstrictlyadheredtotheUS,DIN,JIS,BSandASstandards.

aboutsample:CostwithfreeIfthequantitysmall,andtheexpsschargeaccountintobuyer's,afterreceivingtheofficialorder,thesellerdeductsitinfirstorder's


Please do not hesitate to contact us, should there be any questions or enquires.
