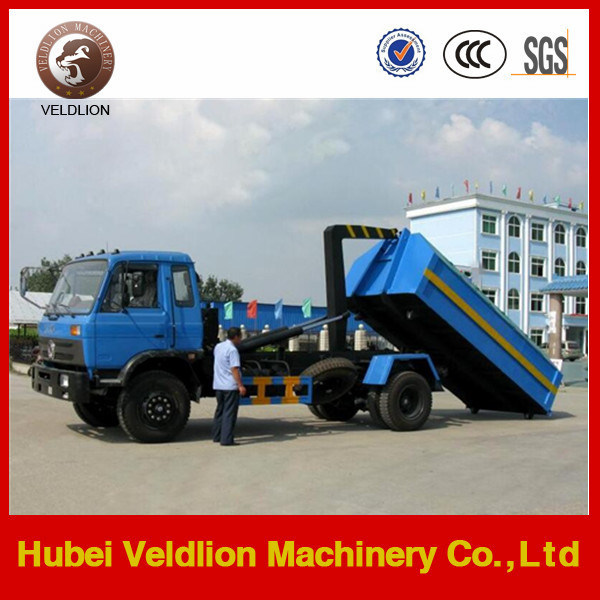

1.Hook lift garbage truck
(1) This kind of garbage truck is used for garbage collecting in city, and without second pollution.Main specification list as below:
| Product model and name | VLD5128ZXX4 hook lift garbage truck |
| Gross weight(Kg) | 12490 | Drive type | 4X2,LHD,RHD |
| Curb weight(Kg) | 6295 | Overall dimension(mm) | 6600x2480X3150 |
| Approach/departure angle(°) | 30/23 | Cab seats | 3 |
| Axle No. | 2 | Front/rear hang(mm) | 1250/1400 |
| Axle load(Kg) | 4990/7500 | Wheelbase(mm) | 3950 |
| Max speed(Km/h) | 95 | | |
| Chassis specification |
| Chassis model | EQ1108KJ | Manufacturer | Dongfeng Motor Co., Ltd |
| Brand name | Dongfeng | Dimension(mm) | 6500x2462×2740 |
| Tire specification | 9.00-20 | Tire No. | 6+1(One spare tire) |
| Steel spring number | 9/11+8 | Front track base(mm) | 1810 |
| Fuel type | Diesel | Rear track base(mm) | 1800 |
| Emission standard | Euro III | Transmission | 6 forward gear |
| Cab | One and halfrow,3personallowed, with power steering,Choose to fix A/C |
| Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) |
| B170 33 | Dongfeng Cummins Engine Co.,Ltd | 5900 | 125(170HP) |
| Tank body |
| Tankcapacity(m³) | 8-10m3 | Garbage Binmaterial | QB235 Carbon steel |
| Discharge Method | Rear dump | Operation control system | Manual + electric |
(2) More detail photos of the hook lift garbage truck
(3) Hook lift main sparts drawing
(4) We can offer various kinds of garbage truck : compactor garbage truck, hooklift garbage truck, swing arm garbage truck, sealed dump garbage truck, hanging garbage truck;
Truck brand: Dongfeng, Foton, IZUSU, SINOTRUK, FAW, SHACMAN, JAC, JMC,and etc . Drive model : 4x2 , 6x4, 8x4,
Tank volume: 8-10m3
2. Shipping photos
By roro ship or bulk ship
3. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.
Creatingvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
4. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.
Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
