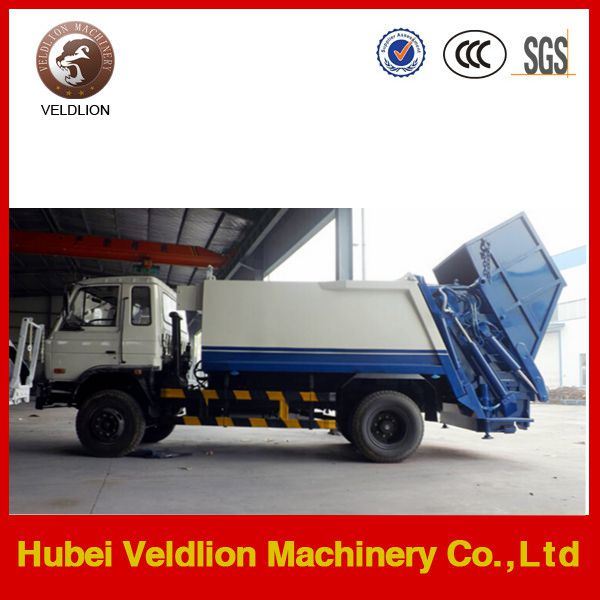

| Product | Dongfeng garbage compactor truck truck | |
| Chassis type | EQ1110 | |
| Cubage(cbm) | 11m3 | |
| Parameters | Overall dimension length/width/height (mm) | 8100*2470*3000 |
| Total Mass(kg) | 14800 | |
| Payload(kg) | 7000 | |
| Kerb Mass(kg) | 7605 | |
| Approach angle/ Departure angle(mm) | 15/14 | |
| Front suspension/rear suspension(mm) | 1250/2395 | |
| Fuel Type | diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 85 | |
| Engine | Type | B170 30 |
| Displacement/Power(kw) | 5900 /125(170hp) | |
| Manufacturer | Dongfeng Cummins Diesel Engine Co.,Ltd | |
| Chassis | Drive type | 4×2 |
| Wheelbase(mm) | 4500 | |
| Tread(front/rear) | 1940 /1860 | |
| Front axle | 5T | |
| Rear axle | 10T | |
| Steering gear | Recirculating ball steering | |
| Transmission | 5 forward gear,1 reverse gear,manual mechanical type | |
| Clutch | Uniwafer, dry clutch, hydraulic remote control | |
| Braking system | Air braking,cam drum braking | |
| Cab | Non-long headed cabin | |
| Number of spring axle(front/rear) | 8/10+8 | |
| Tire Type | 10.00-20 | |
| Air-condition | Choose to fix | |
| Container Volume | 10000Liters (10m3) |
| Tailgate Hopper Capacity | 3m3 |
| One Operating Cycle Time | ≤30 |
| Operating Control Model | Automatic or manual |
| 1 | . Garbage collection method is simple: achange in city trash placed in the dirty streets to revive, to pvent secondary pollution. |
| 2 | . Compssion ratio, loading volume: maximum crushing pssure of up to 12 tons, the equivalent load of garbage with tons row two and half times of non-compssed. |
| 3 | . Operation Automation: the use of imported computer control system, disposing of all the jobs filled in one operation to be drivers, sanitation workers not only reduce labor intensity, but also greatly improve the working environment. |
| 4 | . The economy is good: the work of special equipment, the computer control system automatically controls the throttle. |
| 5 | . Dual insurance system: the operating system with computer control and manual manipulation of the dual function, greatly improving the protection and utilization of vehicles. |
| 6 | . Flip institutions: optional configuration with atrash can (or bucket) of the turnover mechanism. |
1.Compactor garbage truck:4-18m3
2.Dump garbage truck:3-10m3
3.Hermetic garbage truck:3-14m3
4.Swing arm garbage truck:4-12m3
5.Pull arm garbage truck::3-16m3
6.Butt-joint garbage truck:4-17m3
7.Loading &unloading garbage truck:3-14m3
III.OUR ADVANTAGES
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.
Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.
IV.COMPANY INTRODUCE:
Hubei veldlion machinery co., ltd,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.
Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success
V.PROFESSIonAL PACKING AND TRANSPORTATION
VI.ConTACT INFORMATION
HUBEI VELDLION MACHINERY CO., Ltd
ATTN: Elaine Lee
Mobile phone: +86 15926229900
Website: www.veldlion.com
YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
