| Technicial Data | |||

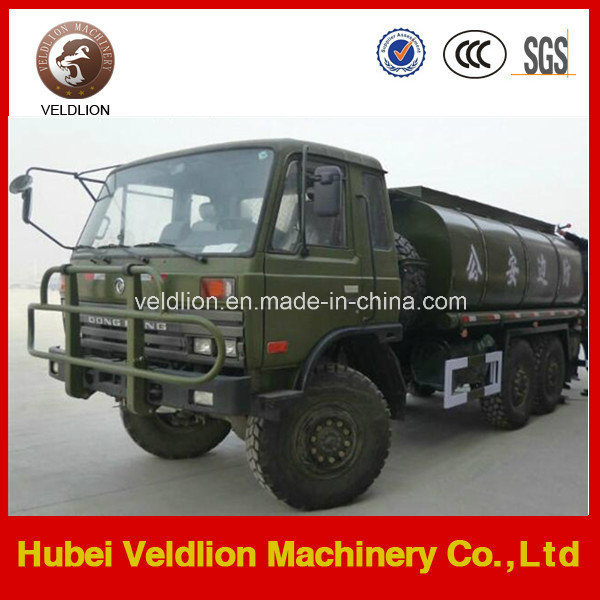

Product Name | Dongfeng 6x6 water Tank Truck | ||
Fuel type | Diesel | ||
Cabin | Single row Right hand drive orleft hand drive | ||
Overall dimensions (L×W×H) | 8950*2480*3100 | ||
Max payload | 12000-20000kg | ||
Engine horse power | 210-260hp | ||
Gear box | Number of gears | 8 forward gears & 1 reverse | |
Axle | Front Load capacity (ton) | 5 | |
Rear Load capacity (ton) | 10/10 | ||
Brake system | Service brake | Air braking | |
Electric device | Rated voltage | 24V | |
Tyres & Quantity | 10.00-R20,11.00-R20,12.00-R20 &10+1 | ||
Fuel tank truck Special Performance & Equipment | |||
Tanker | Fact cubage | 12000-20000L | |
Thickness | 5-8mm | ||
Tank material | Q235 Carbon Steel (stainless carbon,glass fiber reinforced plastics,polyethylene are optional) | ||
Optional equpment description | 1. equipped with fuel dispenser, refueling pump , tanker aircraft, 2. Can be separated into several small unattached tanks | ||
Tanker features description | 1.Tank is made of carbon steel .The whole tank can be separated into several unattached parts . Diaphragm is welded in the middle of tank to reduce the pssure during the transportation . 2.Antirust paint is pained and container indicator is installed to show the capacity of the tank during the pump in or out 3.In order to ensure the tank pssure and atmospheric pssure are basically the same during their working , breathing valve is installed in the covered pot CUHK .When the tank pssure is higher than the outside pssure 8KPa , the front breathing valve would open ; when the tank pssure is lower than the outside pssure 3KPa , the real breathing valve would open | ||
| Special function description | 1.Can load different oils , chemicals ,and food separately 2.Can be designed to pump in -out and downgrade flow measured by flow meter or not! | ||
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer.We arespecialized inthe production of a variety of special-purpose vehicles.
Creatingvalueforourcustomersisourcompany'sconcept.Welcometoenquiryfromus,Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
4. Why chosse us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.
Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
5. Contact us
Atten: Coco. Tian
Tel: 0086-17771878326
www.veldlion.com
