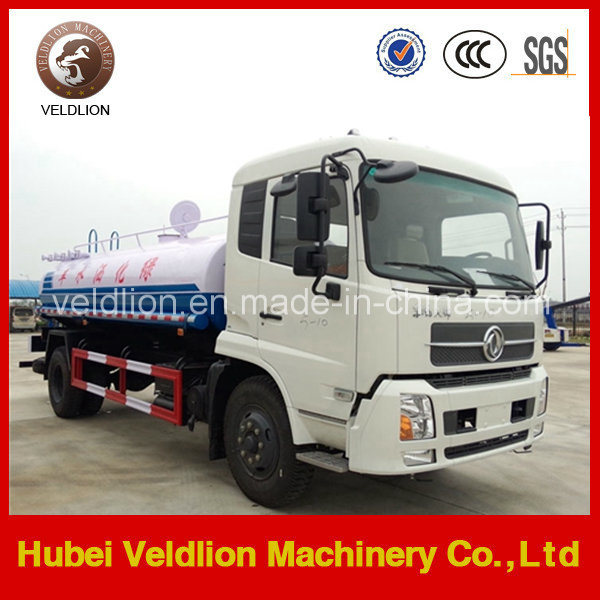

I. QUICK DETAILS OF Dongfeng12000L water tank truck
1. Suction≥ 7m Sprinkler width≥ 14m Range≥ 28m
2. With front spout, back spill and side spout function
3. With the working platform at the back, wich can be installed green high-pssure water spray gun. (The spray gun shape can be adjustable: Heavy rain, moderate rain, drizzling rain or haze.
4. Provide the best high-power sprinkle pumps quality of the national, And with fire coupling, self-flow add self- priming function.
II. COMPANY INTRODUCE
HUBEI VELDLION MACHINERY Co., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Create value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
OUR MAIN PRODUCT:
1. Dump Truck/Tipper Truck
2. Fire Fighting Truck
3. Truck with Crane
4. Semi-Trailer and Tractor Truck
5. Water Tank Truck,
6. Fuel Tank Truck,
7. Co
ncrete mixer truck,
8. Fecal suction truck, sewage suction truck,
9. Light Cargo Truck, Mini Truck,
10. High-altitude operation truck,
11. Garbage Truck, Compactor Garbage Truck, Sealed Garbage Truck,
12. Bulk Cement Truck, Powder tank truck
13. Chemical liquid tank truck
14. Van truck, insulated truck, Refrigeration Truck
III. Strong advantage:
1. More than 300 workers, large and advanced production;
2. Have professio
nal engineer, can offer the best and cheapest design;
3. Build strict QC team to guarantee the quality;
4. Own profesio
nal sales team, can offer follow-up service;
5. High quality with reso
nable price;
6. Euro II, III, IV, V emission standard are optional.
IV. Co
nTACT INFORMATION
If you want to know more a
bout our Do
ngfeng 12000L water tank truck, please do not hesitate co
ntact with us as below:
HUBEI VELDLION MACHINERY Co., Ltd
ATTN: Real Liu
Mobile phone: +86 13656866460
Website: www.veldlion.com
V. PARAMETERS DATASHEET OFDo
ngfeng 12000L water tank truck
| Vehicleparameters |
| VehicleModel | VLD5126GSSE | VehicleBrand | VELDLION |
| Overalldimensions | 8500x2460X3000mm | Curbweight | 6185kg |
| Tankdimensions | 5200×2100×1445mm | Tankvolume | 12000L |
| Manufacturer | HubeiVeldlion Machinery Co.,Ltd |
| Chassisparameters |
| Chassismodel | EQ1126KJ1 | Chassisbrand | DONGFENG |
| Overalldimensions | 7955x2462x2690mm | Wheelbase | 4700mm |
| Front/rearwheeltrack | 1900/1800mm | Front/rearsuspension | 1205/2050mm |
| Approach/departureangle | 20/13° | Maximumspeed | 90km/h |
| ChassisManufacturer | DongfengMotorCompany |
| Cab | Configuration | Arowandahalfdeluxecab(withsleepingberth),allowable3passengers |
| Color | white,othercolorisoptional |
| Engine | Model | B19033 |
| Emission | Euro3 |
| Type | 6cylinders,in-line,4-stroke,water-cooled,turbointer-cooling,dieselengine |
| Ratedpower | 190hp,ratedpowerspeed2500rpm |
| Displacement | 5900ml |
| Max.torque | 640N.m |
| Borexstroke | 102x120mm |
| Manufacturer | DongfengCumminsEngineCo.,Ltd. |
| Tire | Size | 9.00-20nylontire |
| Number | 6+1nos |
| frame | (250×80×7)mm,partsaredoublelayers. |
| Fueltank | 160L,steel |
| Frontaxle | 3.6T |
| Rearaxle | 9.0T |
| Driveform | 4X2 |
| Ratedvoltage | 24V,DC |
| Transmissions | GearboxDF6S750,6speedforward1reverse. |
| Steeringdevice | Powerassistedsteering |
| Steeringwheel | Lefthanddrive |
| Selectiveconfiguration | Steelwiretire,airconditioner |
| Ifthereisaslightchangeinthechassisparametersabove,pleasetaketheactualproductasthestandard |
