1. Quick Details of theFire Fighting Truck:

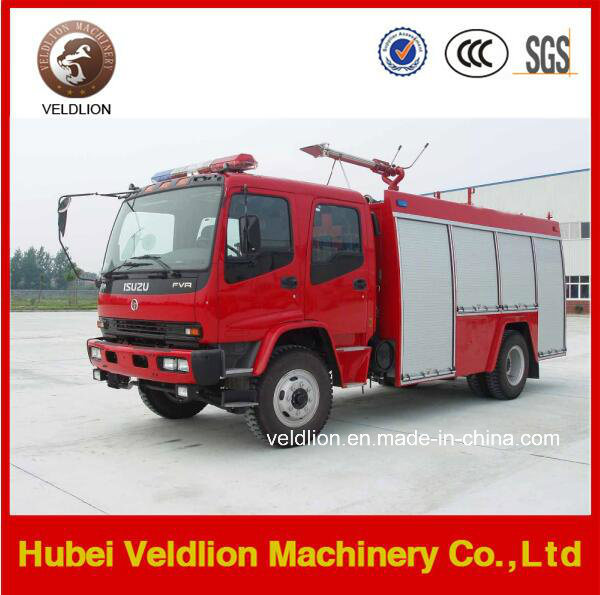

(1) I Suzu 4x2 fire fighting truck
(2) Gross weight: 18750kg
(3) Overall Dimension: 8530*2500*3580 mm
(4) Double cabin, four doors; Front/rear suspension: 1560/2177
(5) Drive Mode: 4x2 LHD/RHD, Diesel Engine
(6) Water and Foam: 6: 2; Gunshot>55 meters distance
We can offer4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, etc trucks.
2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized fire truck manufacturer. We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customersis our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck /Tipper Truck
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck mounted crane
4. Oil Tank Truck /Fuel Tanker Truck
5. Water truck /Water Tank Truck /Water Sprinkler Truck
6. Co
ncrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage suction truck,
9. Cement Powder Tank truck/Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van co
ntainer trailer /warehouse trailer, etc. )
Our Service for Fire Trucks:
(1) Over 400 workers include our sales and engineers will offer you the best design, price and quality;
(2) Pefect after-sales service, offer long days quality guarantee.
(3) within 7-24 hours feedback.
3. Co
ntact us
Atten: Ms Julia
Mobile: 0086-15927026165
www.veldlion.com
4. Parameters datasheet
| Chassis | Chassis brand | / | Sinotruk | ISUZU |
| Model | / | ZZ1167 | QL11609 |
| Drive type | / | 4x2 left hand drive | 4x2 left hand drive |
| Cabin | / | double cabin,two row,5 seats | double cabin,two row,5 seats |
| Overall dimension(L*W*H) | mm | 8820×2500×3450 | 8430x2500x3660 |
| Total mass | kg | 19000 | 14950 |
| Rated Loading capacity | kg | 7000 | 6100 |
| Wheel base | mm | 4600 | 4700 |
| Front /rear suspension | mm | 1500/2650 | 1335/2265 |
| Approach/departure angle | (°) | 16/10 | 16/12 |
| Spring No. | / | 10/9+6 | 7/7+5 |
| Tyre No. | pcs | 6, (front 2, rear 4) | 6, (front 2, rear 4) |
| Type &Size of Tyre | / | 11.00-20 | 10.00-20 |
| Axle No. | / | 2 | 2 |
| Steering wheel | / | left hand drive | left hand drive |
| Gear box | / | HW15710,10 speed forward with 2reverse, manual | 5 speed forward with 1reverse, manual |
| Engine | Engine model | / | WD615.62 | 4HK1-TCG40 |
| Engine brand | / | Sinotruk weichai | ISUZU |
| Engine type | / | 6-cylinder in-line with water cooling,intercooling,
4-stroke direct injection | 4 cylinders in line |
| Maximum power | HP/kw | 196/266 | 190/139 |
| Fuel type | / | diesel | diesel |
| Displacement | ml | 9726 | 5193 |
| Max torque | N.m | 1100 | / |
| Rated rotor speed | Rpm | 2200 | / |
| Emission Standard | / | Euro II | Euro IV |
| 6,000 litres water tank &2000 litres foam tank |
| Fire pump | Model | / | CB10/60,Normal pssure pump | CB10/60,Normal pssure pump |
| Pressure | Mpa | ≥1.0 | ≥1.0 |
| Max suction height | m | 7 | 7 |
| Flux | L/S | 60 | 60 |
| Rated speed | r/min | 3000 | 3000 |
| Time of drawing water (s) | s | ≤35 | ≤35 |
| Input diameter | mm | 125 | 125 |
| Outlet diameter | mm | 2xΦ75 | 2xΦ75 |
| Fire monitor | Model | / | PL48 | PL48 |
| Fire fighting nozzle range | Water (m) | ≥60 | ≥60 |
| Foam (m) | ≥55 | ≥55 |
| Flux | L/S | 48 | 48 |
| Rated Working pssure | Mpa | 1 | 1 |
| Rotation angle | (°) | 360 | 360 |
