Detailed Description
| The main technical parameters and performance indexes of pure electric |
| Date of complete Motorcycle |
| External dimensions (length *width *height) | 1920*770*1020 | mm | Center distance of the front and rear wheels | 1210 | mm |
| ehicle mass (weight) without batteries | 98 | kg | load weight (weight) | 150 | kg |
| Maximum speed | 50 | km/h | Continued trip mileage | 70 | km |
| Ramp angle | ≤15° | | | | |
| seat height | 760 | | ground clearance | 140 | mm |
| Battery parameters |
| Battery Type | Lead Acid | | Specifications | 72V20AH | |
| Battery mass (weight) | 42 | kg | | | |
| Motor parameters |
| Motor size | 22-inch | | Rated continuous output power | 2000 | w |
| Rated speed | 650 | R/min | min rated voltage | 72 | v |
| Controller parameters |
| Model | 72v18 | | tube voltage | 72 | V |
| Undervoltage protection value | 61.5±0.5 | v | Limiting | 45±1 | A |
| Features | Three-speed,Theft | | | |
| Charger parameters |
| Model | 72V/20Ah | | Input voltage /frequency | AC220V | 50HZ |
| Output voltage | 89 | v | Output current | 2.5-2.8 | A |
| Vehicle configuration |
| Brakes type | Front and rear disc brakes | Rim | The first 17-inch aluminum wheels, 17-inch rear iron wheel |
| Front shock absorber | Hydraulic shock absorber | Tire | Front: 2.50-17/18 Rear: 3.00-17 |
| Rear shock absorber | Hydraulic shock absorber | Meter | square-screen LCD |
| packing size |
| packing size | 1700*380*860 | mm | 40'HQ container | 126 | units |
| packing type | iron+carton box | | | | |
| Vehicle Designs |
|
|
|
|
|
|
|
|
|
|
|
|
| Vehicle color: |
| 1. Red, blue, black |
| 2. Can be produced according to customer requirements color |
Iris Shao
Changzhou Jiqing Electrical and Mechanical Co., Ltd.
Website: www.jiqingmotor.com
www.jiqingcn.com
Cell-Phone: (86) 15295182013
Office: (86) 0519-83127250
Whats: 86-15295182013

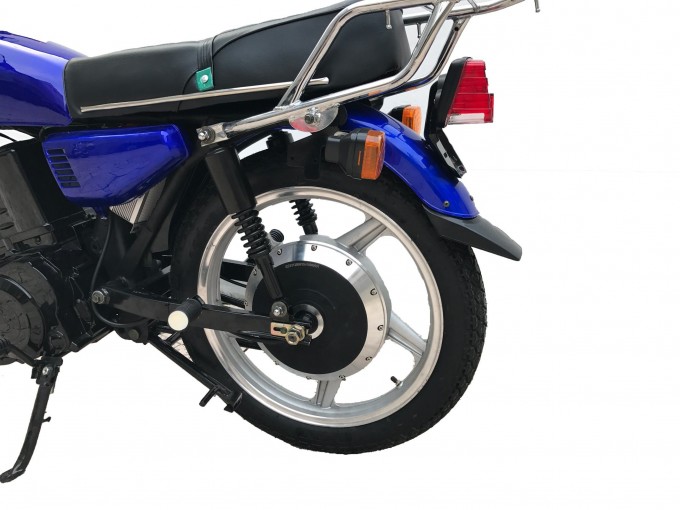

Product Image
