Detailed Description
| The main technical parameters and performance indexes of pure electric |
| Date of complete Motorcycle |
| External dimensions (length *width *height) | 1930*870*1130 | mm | Center distance of the front and rear wheels | 1360 | mm |
| ehicle mass (weight) without batteries | 76 | kg | load weight (weight) | ≤200 | kg |
| Maximum speed | ≥80 | km/h | Continued trip mileage | ≤65 | km |
| Battery parameters |
| Battery Type | Lead Acid | | Specifications | 72V20AH | |
| Battery mass (weight) | 42 | kg | | | |
| Motor parameters |
| Motor size | 12-inch | | Rated continuous output power | 1500 | w |
| Rated speed | 650 | R/min | min rated voltage | 72 | v |
| Controller parameters |
| Model | 72v18 | | tube voltage | 72 | V |
| Undervoltage protection value | 61.5±0.5 | v | Limiting | 45±1 | A |
| Features | Three-speed,Theft | | | |
| Charger parameters |
| Model | 72V/20Ah | | Input voltage /frequency | AC220V | 50HZ |
| Output voltage | 89 | v | Output current | 2.5-2.8 | A |
| Vehicle configuration |
| Brakes type | Front and rear disc brakes handbrake | Rim | The first 17-inch aluminum wheels, 12-inch rear iron wheel |
| Front shock absorber | Hydraulic shock absorber | Tire | Front: 250-17 Rear: 120 /70-12 |
| Rear shock absorber | Hydraulic shock absorber | Meter | Round-screen LCD |
| Other functions | Dual alarm remote control, backrest, turn to aluminum, chrome rear rack, chromed direction to
|
Iris Shao
Changzhou Jiqing Electrical and Mechanical Co., Ltd.
Website: www.jiqingmotor.com
www.jiqingcn.com
Cell-Phone: (86) 15295182013
Office: (86) 0519-83127250
Whats: 86-15295182013

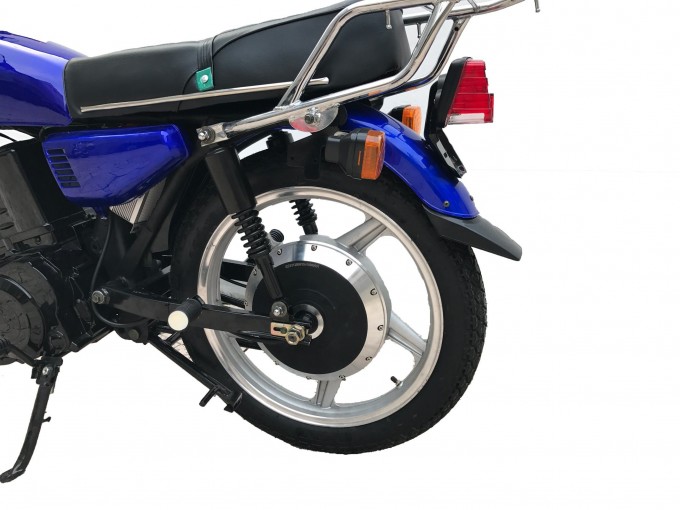

Product Image
