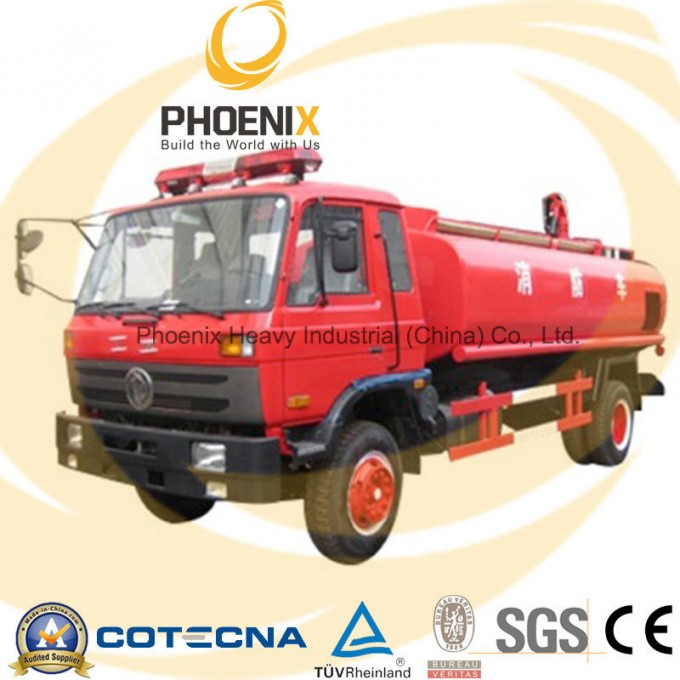

4X2 LHD 1600gallon Dongfeng Water Tank Fire Truck

4x2 LHD 1600Gallon Dongfeng Water Tank Fire Truck
Chassis brand & model: DONGFENG, EQ1108KJ
Engine: YUCHAI DIESEL, 115HP
Wheelbase: 3950mm
Drive traction: LHD, 4x2
Body water tanker: 1600 gallon
Features:

1. fire truck Main equipped:
1.fire truck chassis constitute cab, engine, gear box, steering wheel,beam,tyre,axles,etc.
2.Fire truck upper body with water/foam tank, fire pump,fire monitor,pipe,etc.
3.fire truck with Water fire fighting tank and foam fire fighting tank .or water fire fighting tank.
4.fire truck with fire pump is normal pssure or middle-low pssure, made in China or imported.
5.fire truck with fire monitor is controlled by Manual or Electric.

2.fire truck series:
fire turck capacity : 2000L- 25000L
fire truck drive type: 4x2,4x4,6x4, 6x6, 8x4
fire truck tank material: carbon steel, stainless steel, PE.
fire truck hand drive type: left hand drive , right hand drive

(A) Engine
Engine (Fuel)						DIESEL
Model						YUCHAI DIESEL, 115HP
Type						4 Stroke Water cooling, Direct Injection
Horse power						85KW, 115HP
(B) Chassis
Suspension (Front)						Leaf Spring (8/10+7)
Suspension (Rear)						Leaf Spring (8/10+7)
Steering						LHD
Cabin						Single cabin two doors (with A/C)
Front axle						2.8 tons
Rear axle						8 tons
Tyre						9.00-20, 6+1(spare tire)
Transmission						5 Speed, Manual
Drive						4x2
(C) Pump & Pipe
Type of fire Pump						Centrifugal pump CB10/30
Minimum fire pssure						1.0Mpa
Minimum fire pump capacity						30L/s
Fire fighting pump suction depth						>7m
Fire fighting pump suction time						<35S
Delivery outlet(B/S Type)						65mm(21/2 inch)
Fire fighting nozzle range						≥40m
Rotation angle of fire fighting						360°
Turret Nozzle						Yes
Pipe Line (Inlet)						4" O one on both side
Pipe Line (Outlet)						2.5" O one on both side
Vacuum pump value must be located on the control box
Pump inlet pipe must be located (1'') above the tank base.
Vacuum cut-off quality is required to improve
Rod system is possible for pump gear
Main pump should be fitted (4") ball valve
Water Turret Gun						Install at the front
(D) Water Tank
Capacity						1600 Gallons.
(E) Equipment
Fire electric Siren						1 -Nos
Emergency rotation lamp						1 -Nos
Fire Axe						1 -Nos
Fire Hook						1 -Nos ( Must Be applied to climb )
Fireman Ladder (Extension ladder) (30"<)						1 -Nos ( metal Ladder (30'<)
Jet & Spray Nozzle						1 -Nos
Jet Nozzle						1 -Nos
Fire hoses (B/S System) (65mm, 20m)						4 -Nos
Suction pipe (Length 2m)						4 -Nos
Water Filter (metal)						2 -Nos
Suction Pipe wrench						2 -Nos
Pipe quality is required to improve.
To contain fire extinguisher. (3kg)						3 kg.
Seat of hydraulic jack and wheel spanner quality are required to improve.
