Detailed Description
HOWO 4WD 16 cubic meter Water Tank Truck
PARAMETER OF WHOLE TRUCK
| General | |
| Truck Name | Water truck |
| Drive Type | 4*4 |
| Overall Dimensions L*W*H(mm) | 10200x2500x3350 |
PARAMETER OF CHASSIS
| Engine | |
| Engine Brand | CNHTC WD615.87 |
| Fuel Type | Diesel |
| Power | 213kw/290HP |
| Emission Standard | Euro II |
| Displacement(ml) | 9726 |
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling |
| Chassis | |
| Chassis Brand | SINOTRUK |
| Cabin | HW76 long cabin with one bunk and air conditioner |
| Tire No. | 11 (with one spare tire) |
| Tire Specification | 12.00-20 bias tire |
| Front/rear axle | STR/ ST16; Load 16ton |
| Wheelbase(mm) | 4600 |
| Transmission | HW15710C |
| Steering | Germany ZF8118steering system, 20 MPa Steering pump pssure, with STEER CONTROL |
| Transfer case | with 1200 thansfer, 16 pulse electromagnetic sensors, With differential, High/low speed ratio1/1.75 |
| Brake | Air brake |
PARAMETER OF WATER TANK
| Water tank | |
| Tank Volume(L) | 16000 litres |
| Tank steel thickness | Body: 5mm
Body heads: 5mm
baffle plate :3mm |
| Water pump | hangzhouwe pump 60-90 |
| Other configuration | four nozzles(front/rear)
Rear platform anti-aircraft gun
2 pcs Spare water pipe
Wax spraying (whole truck) |

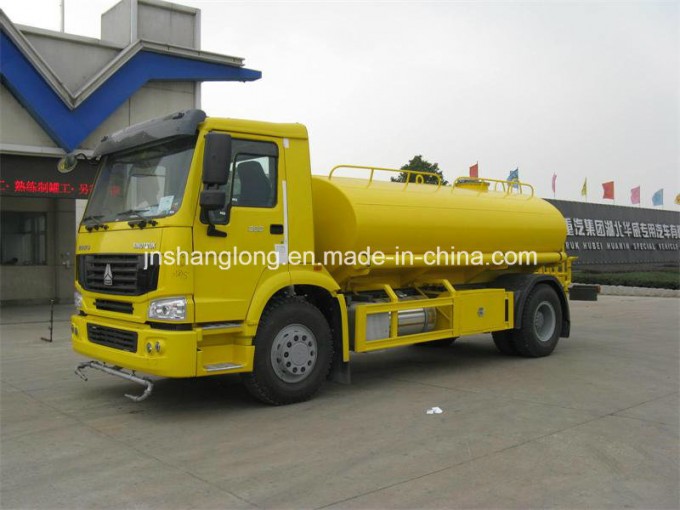

PICTURES OF WATER TRUCK
OPTIo
nAL Co
nFIGURATION OF THE WATER TRUCK
