Detailed Description

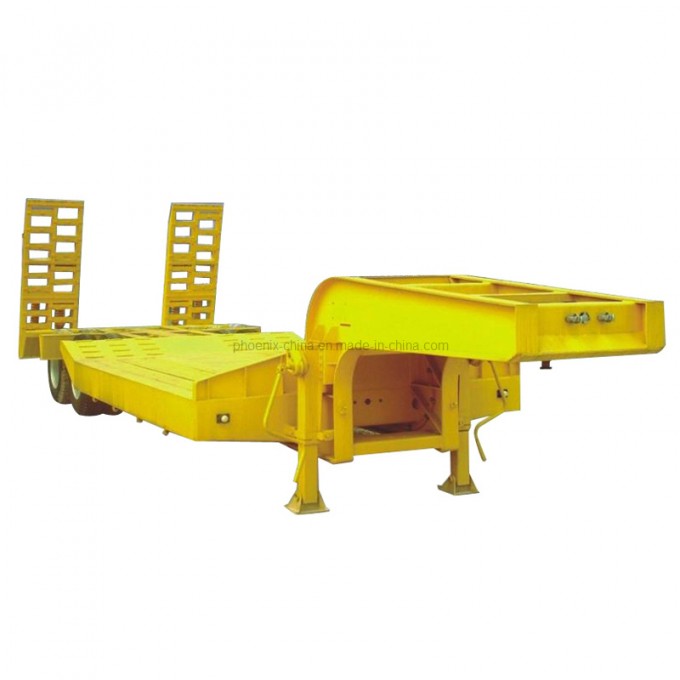

3-Axle Low Bed Semi-Trailer
Capacity: 60-100 tons
Overall size: 13000*3000*2100mm
Weight:
Curb weight: 13000kgs
Loading capacity: 80000kgs
Overall weight: 63000kgs
Configuration
Axle: 3 units 16-ton
Tire: 11.00R20
Rim: 8.0-20
Suspension: One unit 3-axle suspension system, leaf spring 8*16*90mm
Kingpin (welded): 3.5'
The height from Fifth wheel to ground: 1.3m
Leg: Double-speed l
inkage
Brake: Energy storage braking, double air chamber on the last axle
Electric system: 24V, 7 pin cable Chinese natio
nal standard
2 units of spare tire holder
Transportation referenced photo:
| Lights include the rubber grommets in order to decrease the shaking and extend its using period |
| Double air chambers are adopted on all axles in order to brake the trailers safely and quickly |
| Harness: Adopts the rubber wiring harness.its advantages include waterproof, dustproof, anti-aging, safety more, etc. Specially there are some high intension clamps to fix the harness |
| Axle | 3-axles |
|
| Gross weight (kg) | 63000 |
|
| Curb weight (kg) | 13000 |
|
| Payload (ton) | 60-80 tons |
|
| External dimension (L*W*H) mm | 13000*3000*2100 |
|
| Wheel base(mm) | 7650+1305+1305 |
|
| Tires | 11.00R20 radial tires |
|
| Leaf spring | 8/8/8 |
|
| Departure angle(°) | 16/14 |
|
| ACCESSORIES | TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER
SPARE WHEEL HOLDER(WINCH), |
