High Quality 45T 3AXLE WOOD TRANSPORT TIMBER SEMI TRUCK TRAILER
PLEASE Co
nTACT US&co
lon; ELENA HUANG
PHOENIX HEAVY INDUSTRIAL (CHINA) CO.,LTDWebsite:http://phoenix-china.en.made-in-china.comMobile: (0086)15621126030
| 3 AXLE WOOD TRANSPORT SEMI TRAILER |
| DIMENSIONS |
| Tare weight | 7500kg |
| Size | 12500mm*2500mm*3000mm |
| Payload | 45T |
| Main beam | Heavy duty and extra durability designed Ibeam; opting for high tensile steel T700, welded by automatic submerged-Arc processes. Top flange 10mm,width140mm;Middle Flange 8mm height 500mm;bottom flange10mm,width 140mm |
| Column | 12pcs 1500mm |
| Cross member | 12# channel steel(Q235) |
| Floor | No |
| Side wall | No |
| Front board | No |
| Axle | 3 axleFUWA brand13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Tire | 12R22.5/11R22.5/12.00R20/11.00R20 Optional |
| Wheel rim | 9.0/8.5/8.0Optional |
| Kingpin | JOST brand 2"/3.5" bolt-in king pin |
| Landing gear | JOST/FUWA/SAF brand two-speed, manual operating ,heavy duty landing gear 28T |
| Twist lock | 12pcs/8pcs |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8side lights and 2rear lights 2width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box one spare tire carrier one crank one shaft head wrench four side light two rear light |

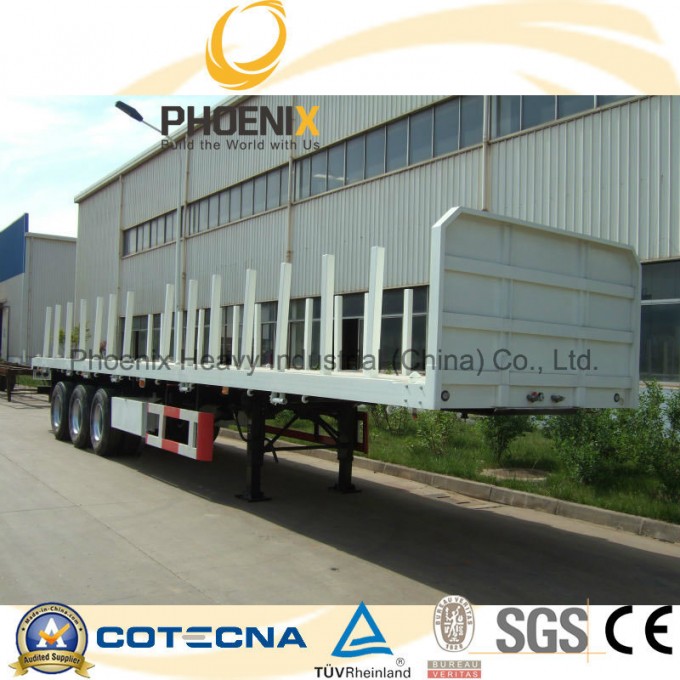

Product Image
