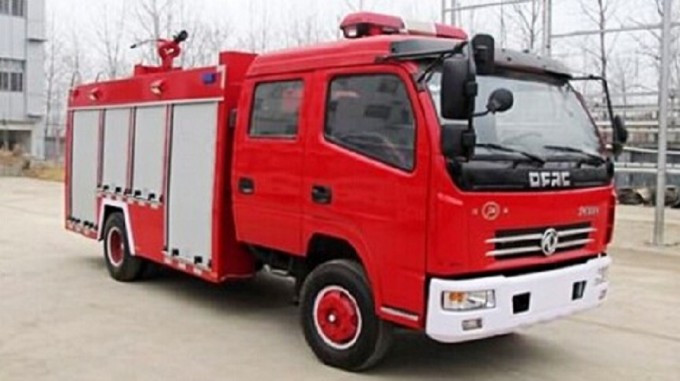

| Models Overview | DFAC fire truck is produced from DFAC EQ1070TJ9AD3 chassis, new car design, vision integrity; pump power takeoff , fire fighting synchronization with driving; large-capacity Tank ,long range fire artillery covered; one driver can finish fire fighting operations in cab. | |||||
| Chassis Model | EQ1070TJ9AD3 | Overall dimensions (mm) | 6850x2285X2930 | |||
| weight (kg) | Rated loading capacity | 7000 (L) | Fact cubage | 4000 (L) | ||
| Max in working order | 5000 | Traction system | 4*2 | |||
| GVW (kg) | 12000 | Wheel base (mm) | 3800 | |||
| Engine parameter | Engine Model | CY4102-E3C | Engine type | Water-cooled inline four-cylinder supercharged intercooled diesel | ||
| Power/Exhaust(KW/ml) | 91/3856 | Engine producer | Dongfeng | |||
| Performance parameters | Max speed(km/h) | 95 | Tread (mm) | F/R track base | 1750/1586 | |
| Cab | Flat, double | |||||
| passengers in cab | 6 | suspension length(mm) | Front suspension | 1015 | ||
| Number of tires | 6 | Rear suspension | 1900 | |||
| Tire specification | 8.25-20 | Approach/departure angle ° | 20/13 | |||
| Spring plate number | 8/10+7 | |||||
| Others | Using DFAC 120 horsepower engine, configuration of DFAC 5 speed gear box / front axle 2.2 tons, 5 tons of /8.25-20 tire / sound: USB interface with radio / standard power steering / air brake / cab with turning | |||||
| Equipment | 1.Type of fire pump centrifugal pump 2.Pressure 1.0 mpa 3.Fire pump capacity 30L/S 4.Fire fighting pump suction depth >7m 5.Fire fighting pump suction <30s 6.Fire fighting nozzle range >55m Engine CY4102-E3C, diesel engine Fire suction hose piece 4 suction pipe wrench piece 4 water filter piece 1 dry powder fire extinguisher set 1 dividing breeching piece 1 fire bucket piece 1 collecting breeching piece 1 straight stream water gum piece 2 Fire hose type 13 roll 6 Multifunctional water gum piece 2 Fire hose type 13 roll 6 Fire axe piece 2 interface piece 1 Fire shovel piece 2 hose jacket piece 4 Fire hook piece 1 rope hose tool piece 4 basic hand tool set 1 hose protector set 2 extinguisher piece 1 | |||||
