Detailed Description
| Item | Description |
| Controller | Curtis controller, 275A-400A, imported from USA directly |
| Motor | Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand
Both DC motor and AC motor are available |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger | High Frequency onboard charger
(input 90V-265V, 47-63HZ, output 48V/22A) |
Performance
| Item | Description |
| Passenger Capacity | 4 |
| Range (loaded) (km)* | up to 90 |
| Max.speed (km/h) | up to 40 |
| Min.turning radius (m) | 4.5 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 480 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) ba
sed on the test conditions: 20km/h speed, flat and straight co
ncrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 3430x1180x1800 (LxWxH) |
| Rear cargo bed dimensions (mm) | 770x1100x250 (LxWxH) |
| Min.ground clearance (mm) | 120 |
| Wheelbase (mm) | 2450 |
| Front wheel tread (mm) | 855 |
| Rear wheel tread (mm) | 975 |
Body and f
rame
| Item | Description |
| frame & Chassis | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front and rear body cover, injected |
| Roof | FRP |
| Windshield | One-piece organic glass (PMMA) |
| Roof supports | Carbon steel, powder coated, black |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Formed |
| Floor mat | Skidproof rubber |
| Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
| Beverage holders | 4 cups holders, 2 big and 2 small |
| Side trim | Extruded aluminum |
| Rear cargo bed | Powder coated carbon steel side fenders and diamond aluminum bottom board |
| Score card holder | On the steering wheel |
Electric System
| Item | Description |
| Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 48V/12V |
Steering & suspersion
| Item | Description |
| Steering System | Single-stage rack and pinion steering system,
with automatic compensation function |
| Brake System | Rear wheel mechanical brake with foot park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Cylinder hydraulic shock absorber and leaf spring |
| Rear suspension | Cylinder hydraulic shock absorber and leaf spring |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Aluminum differential cage, integrated, 12.76:1 gear ratio |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
Option Accessories
To increase the sales value of our utility golf buggy, we also provide many optio
nal accessories.
| Item | Option description | Item | Option description |
| 1 | Hinged windshield | 11 | Enclosure |
| 2 | Laminated windshield with wiper | 12 | Digital meter |
| 3 | 2-point seatbelt | 13 | 12V plug |
| 4 | Backrest cover in wood finish | 14 | Hour meter |
| 5 | Steering wheel in wood finish | 15 | Solar panel |
| 6 | Inner rear view mirror | 16 | Battery watering pipe |
| 7 | Side rear view mirror | 17 | Water pump (handle) |
| 8 | STS or aluminum roof supports | 18 | 4-wheel hydraulic front drum or disc, rear drum brake with hand park brake |
| 9 | Wooden finish dashboard,steering wheel and dashboard | 19 | 8x7 steel rim with 18x8.5-8 tyre or 6J-10 steel rim with 205/50-10 tyre |
| 10 | Glove box with door and lock |
|
|

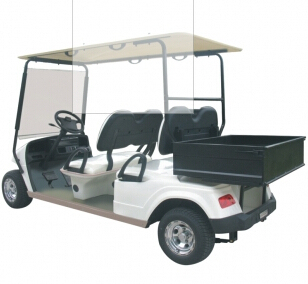

Product Image
