Detailed Description
| Item | Description |
| Controller | Curtis controller, 400A, imported from USA directly |
| Motor | Rated power 4KW(5.4HP), Chinese brand |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger | High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Performance
| Item | Description |
| Passenger Capacity | 2 |
Range (loaded) (km)* | up to 80 |
| Max.speed (km/h) | up to 40 |
| Min.turning radius (m) | 4 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 320 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (mm) | 3060x1400x1900 (LxWxH) |
| Rear cargo dimensions (mm) | 810x1040x250 (LxWxH) |
| Min.ground clearance (mm) | 155 |
| Wheelbase (mm) | 2080 |
| Front wheel tread (mm) | 1210 |
| Rear wheel tread (mm) | 1160 |
Body and f
rame
| Item | Description |
| frame & Chassis | Welded steel framework with sand blasting and painting |
| Body | FRP and Plastic |
| Roof | FRP with steel frame, with roof handle |
| Windshield | Laminated glass (with E-mark) with wiper and water sprayer |
| Roof supports | Plastic |
| Seat | Reborn sponge with artificial leather, high back, with adjustable armrest |
| Rear cargo box | STS frame and aluminum board |
| Seatbelt | 3-point type, with E-mark |
| Floor | Bamboo floor with Skidproof leather |
| Dashboard | FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc.. |
| Side rear view mirror | 2pcs, with E-mark |
Electric System
| Item | Description |
| Lights | 12V, headlight (high/low beam), front turning light, rear brake light and rear turing light, all with E-mark |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | including switch for headlight, turning light, wiper and horn |
| DC/DC converter | 48V/12V |
| Digital Meter | with Current meter, voltometer, speedometer, odometer and various indicators |
| Audio system | Radio with MP3 receiver and 2 waterproof speaker |
Steering & suspersion
| Item | Description |
| Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic drum brake with hand park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Independent suspension |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Aluminum differential cage |
| Wheel & Tyre | 225/55b12 6PR tire, 12X7 aluminum wheel |
Option Accessories
To increase the sales value of our street legal electric cart, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Inner rear view mirror | 5 | CD player |
| 2 | Battery watering pipe | 6 | Wired mircophone |
| 3 | Water pump (handle) | 7 | Solar panel (built in) |
| 4 | Rain cover |
|

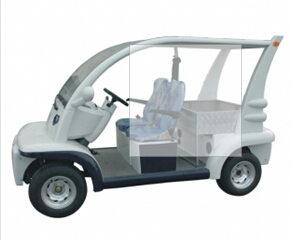

Product Image
