Detailed Description
TOP ONE from China!
It is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, with its fame forged in co
nstruction and mining industries with adverse operating environments, available for the short-range earthwork transportation tasks for mines and co
nstruction projects.
| SINOTRUK HOHAN 8X4 336HP DUMP TRUCK |
| MAIN SPECIFICATION |
| Description | SINOTRUK HOHAN 8X4 336HP DUMP TRUCK |
| Model | ZZ3315N3563D1 |
| Engine Power | 337HP |
| Loading Capacity | 19310Kgs |
| Place of Origin | China |
| DETAIL SPECIFICATION |
| Cabin | Model | H18 |
| Engine | Model | MC07.34-40 |
| Horse Power (Hp/rpm) | 337/2300 |
| Type | Euro IV |
| Clutch | Φ430 pull-type |
| Transmission | HW19712 |
| Front Axle | H153 |
| Driving Axle | H475, Ratio: 4.875 |
| frame(mm) | 280x80X(8+5) |
| Steering System | D50 |
| Tire | 11.00R20 |
| Fuel Tank Capacity (L) | 350 |
| Vehicle Weight (kg) | 15,830 |
| Gross Vehicle Weight (kg) | 31,000 |
| Rated Loading Capacity(kg) | 15,170 |
| Overall Dimension(L*W*H)(mm) | 9960×2429×3490 |
| Wheelbase(mm) | 1800+3500+1350 |
| Front/Rear Overhang( mm) | 1350/2300 |
| Wheel Track(Front/Rear)(mm) | 2022,2022/1830,1800 |
| Approach/Departure Angle(°) | 20/21 |
| Max. Speed (km/h) | 120 |
| Recommended Body Dimension(L*W* H mm) | 7300×2300×1200 |
| Body Capacity(m3) | 20.14 |

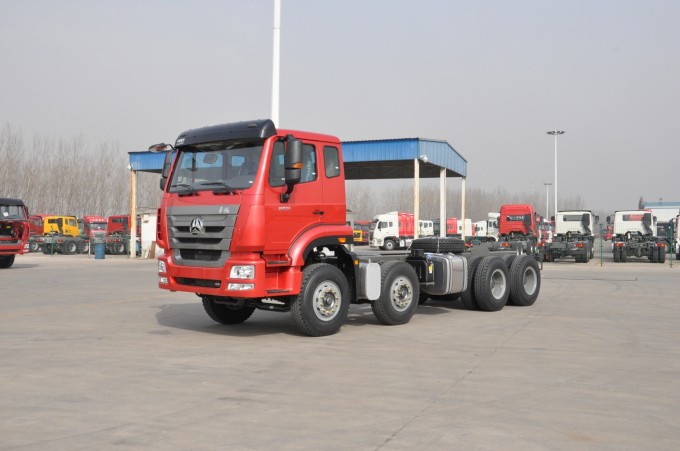

Product Image
