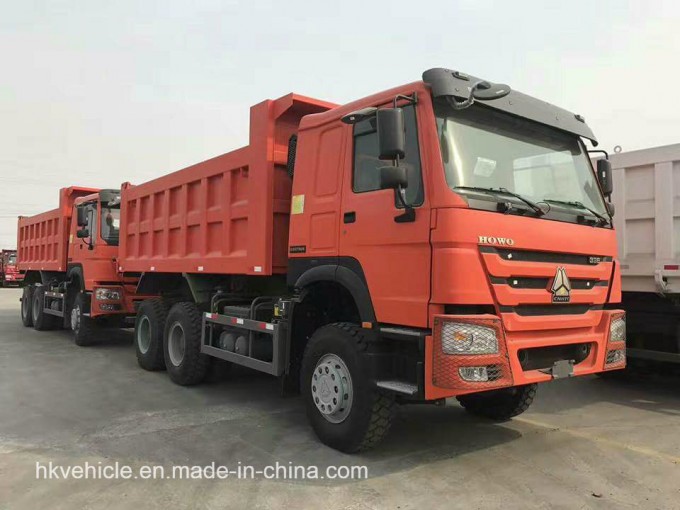

| SINOTRUK HOWO 6X4 336HP DUMP TRUCK |
| MAIN SPECIFICATION |
| Description | SINOTRUK HOWO 6X4 336HP DUMP TRUCK |
| Model | ZZ3257N3447A |
| Engine Power | 336Hp |
| Dump Body Dimension | 5200×2300×1500mm(17.94m3) |
| Loading Capacity | 28,500Kgs |
| Place of Origin | China |
| DETAIL SPECIFICATION |
| Cabin | Type | 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler |
| Model | HW76, HOWO Long Cabin, with two seats and one bed |
| Model | WD615. 69 |
| Engine | Horse Power (Hp/rpm) | 336/2200 |
| Max.Toruqe(Nm/rpm) | 1350/1100-1600 |
| Displacement(L) | 9.726 |
| Type | DIESEL Engine, 6-cylinder in-line with water cooling, turbo-charging and intercooling, Diesel 4-strok, Electric control common rail engine |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Transmission | HW19710, 10 speeds forward and 2 speeds reverse. |
| Ratio: 14.28 10.62 7.87 5.87 4.375 3.26 2.43 1.8 1.34 1 13.91(R1) 3(R2) |
| Front Axle | HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.8, 5.73) Option: AC16(Ratio: 4.77, 5.45) |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; leaf semi-elliptic springs, bogie spring and stabilizer |
| Steering System | ZF power steering, model ZF8198, hydraulic steering with power assistance |
| Brake System | Service brake: Dual circuit compssed air brake; Parking brake (emergency brake): Spring energy, compssed air operating; Auxiliary brake: Engine exhaust brake |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tire | 12.00R20; Option: 12.00R22.5, 12.00R24, 295/80R22.5, 315/80R22.5 |
| Fuel Tank Capacity (L) | 300 |
| Front Axle Loading Capacity(kg) | 9,000 |
| Rear Axle Loading Capacity(kg) | 2*16,000 |
| Vehicle Weight (kg) | 12,000 |
| Gross Vehicle Weight (kg) | 41,000 |
| Rated Loading Capacity(kg) | 28,900 |
| Overall Dimension(L*W*H)(mm) | 7865×2496×3360 |
| Wheelbase(mm) | 3425+1350 |
| Front/Rear Overhang( mm) | 1500/1670 |
| Wheel Track(Front/Rear)(mm) | 2022/1830 |
| Min. Ground Clearance(mm) | 314 |
| Approach/Departure Angle(°) | 19/26 |
| Max. Speed (km/h) | 75 |
| Body Dimension(L*W* H mm) | 5200×2300×1500mm |
| Body Capacity(m3) | 17.94 |
