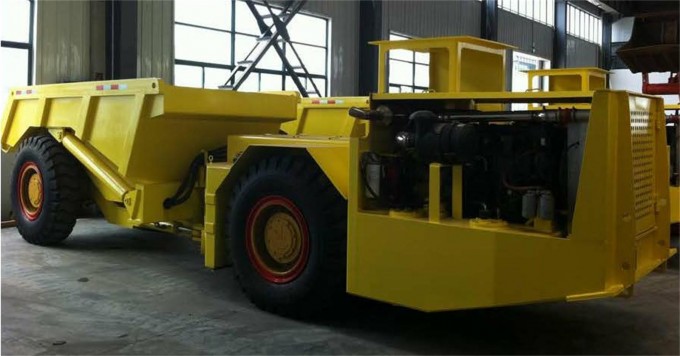

Low Profile Underground Dump Truck 10ton

Low Profile Underground Dump Truck 10ton




SpecificationsandTechnicalData

GPT-10UndergroundDumpTruck

I.MainConfiguration

1.Internal-CombustionEngine:

Manufacture: GermanDUTEZCompany

Model: BF4M1013C

RatedPower: 112KW/2300R/M

2.HydraulicTorqueConverter:

Manufacture: AmericaDANACompany

Model: C273.7

Type: SingleGradeofTwo-Element,withhydraulicdrivepump

3.PowerShiftTransmission:

	Manufacture:	AmericaDANACompany
	Model:	R32421
	Type:	PowerShift
	Gears:	4
4.	DriveAxle
	Manufacture:	XuzhouMeritor
	Type:	RigiddrivingaxleplanetofNO-SPINAntiskiddifferential,
		withwetandmulti-disksbrake

5.BrakingSystem

Components: Workingbrakeandparkingbrake

Features: AdoptsPosi-StopSpringBrake,fullhydraulicmulti-diskswet

brakeineachwheel

Itsfeatures,asbelow:fullyenclosedhydrauliccooling,good

brakingability,settotheworking,parkingandemergency

brakeasawhole,simplifiedthebrakesystem.

6.HydraulicSystem

Components: Workingsystem,steeringsystem,brakingsystem,filloil

system,cablesystem

Theworksteeringpump,multi-directionalcontrolvalve,

conversionvalvearealladoptedPARKERbrand.

7.Others:

Tire:14.00-24

Hydro-cylinder: Self-made,thegreaseoiladoptsimportedcombinedseal

AI.MainTechnicalParameter:

1.	Weight:
	Dimension(transport):	7760mm×1780mm×2350mm
	BucketCapacity(SEA	5.3m³
	Stowage):
	Max.HeightofDumping:	3910mm
	DischargingHeight(loading)	1895mm
	DischargingAngle:	70°
	Wheelbase:	4270mm
		1

Min.Off-groundClearance:	226mm
ApproachAngle:	15°

2.Model&BridgeLoad

	Weight:	13000KGS
	RatedLoadingWeight:	10000KGS
3.	OperationCapacity
	OperationSpeed:	FirstGear::	0~3.5km/h
		SecondGear:	0~7km/h
		ThirdGear:	0~13km/h
		ForthGear:	0~23km/h
	ClimbingAbility:	≥20°
	Max.ClimbingAbility:	15°
	Max.AttractionForce:	128KN
4.	Steering
	Max.SteeringAngle:	±42°
	Min.SteeringRadius:	Inter:4493mm	Outer:6982mm
