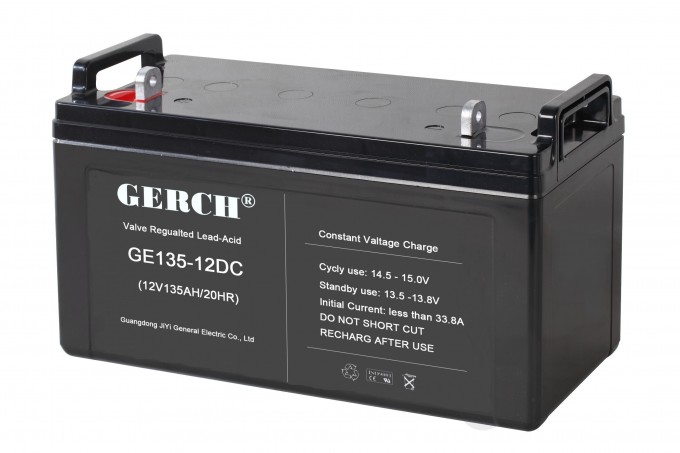

12V 135ah Maintenance Free Battery Forklift Battery Wheel Chair Battery Scooter Battery Power Tool B

General Features
1. Using oxygen recombination technology: maintenance-free
2. PbCaSn alloy for plate grids: less gassing, less self-discharging
3. High quality AGM separator: extend cycle life and pvent micro short circuit
4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5. High purity raw material: ensure low self discharge rate
6. Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity
Typical Applications
1.All purpose
2.Uninterruptable Power Supply (UPS)
3.Electric Power System (EPS)
4.Emergency light
5.Emergency backup power supply
6.Auto control system
7.Aircraft signal
8.Alarm and security system
9.Electronic apparatus and equipment
10.DC power supply
11.Communication power supply

Medium Sealed Rechargeable Lead-Acid Batteries
Model	Nominal Voltage(V)	Rated Capacity@25ºC(AH)		Approx Dimensions								Approx Weight		Terminals Type	Layout
		10HR 1.80V/Cell	1HR 1.75V/Cell	Length		Width		Hight		Total Hight
				mm	in.	mm	in.	mm	in.	mm	in.	kgs.	lbs.
GE100-6	6	100	55.0	195	7.68	170	6.69	206	8.11	209	8.23	15.9	35.05	F	5
GE120-6	6	120	66.0	195	7.68	170	6.69	206	8.11	209	8.23	17	37.48	F	5
GE130-6	6	130	71.5	260	10.24	180	7.09	247	9.72	251	9.88	20.5	45.19	H	6
GE180A-6	6	180	99.0	260	10.24	180	7.09	247	9.72	251	9.88	29	63.93	H	6
GE180-6	6	180	99.0	306	12.05	168	6.61	220	8.66	225	8.86	29	63.93	H	6
GE200A-6	6	200	110.0	260	10.24	180	7.09	247	9.72	251	9.88	30	66.14	H	6
GE200-6	6	200	110.0	323	12.72	178	7.01	224	8.82	227	8.94	30.2	66.58	H	5
GE210-6	6	210	116.0	260	10.24	180	7.09	247	9.72	251	9.88	30.5	67.24	H	6
GE225-6	6	225	124.0	244	9.61	190	7.48	275	10.83	275	10.83	31	68.34	H	6
GE230-6	6	230	126.5	260	10.24	180	7.09	247	9.72	251	9.88	31.5	69.44	H	6
GE310-6	6	310	170.5	295	11.61	178	7.01	345	13.58	350	13.78	47	103.62	H	6
GE450-6	6	450	247.5	295	11.61	179	7.05	404	15.91	424	16.69	57.4	126.54	H	6
GE24A-12	12	24	14.3	167	6.57	176	6.93	125	4.92	125	4.92	7.5	16.53	E	2
GE24-12	12	24	15.4	166	6.54	125	4.92	175	6.89	175	6.89	7.6	16.75	E	2
GE26-12	12	26	24.7	166	6.54	125	4.92	175	6.89	175	6.89	9	19.84	E	2
GE28-12	12	28	26.6	196	7.72	131	5.16	155	6.10	167	6.57	9.5	20.94	F	2
GE33-12	12	33	17.6	196	7.72	131	5.16	155	6.10	167	6.57	10.5	23.15	F	2
GE35-12	12	35	19.3	196	7.72	131	5.16	155	6.10	167	6.57	12	26.46	F	2
GE38-12	12	38	20.9	197	7.76	165	6.50	170	6.69	170	6.69	11.8	26.01	F	2
GE40-12	12	40	22.0	197	7.76	165	6.50	170	6.69	170	6.69	12.5	27.56	F	2
GE55-12	12	55	30.3	228	8.98	138	5.43	208	8.19	227	8.94	15.4	33.95	F	1
GE60-12	12	60	33.0	260	10.24	169	6.65	210	8.27	214	8.43	18.3	40.34	F	1
GE65-12	12	65	35.8	348	13.70	168	6.61	178	7.01	178	7.01	19.5	42.99	F	1
GE75-12	12	75	41.2	260	10.24	168	6.61	208	8.19	231	9.09	20.6	45.41	F	1
GE80-12	12	80	44.0	260	10.24	168	6.61	208	8.19	231	9.09	20.8	45.86	F	1
GE90-12	12	90	49.5	329	12.95	172	6.77	215	8.46	243	9.57	26.5	58.42	G	1
GE100-12	12	100	55.0	329	12.95	172	6.77	215	8.46	243	9.57	28	61.73	G	1
GE100A-12	12	100	55.0	339	13.35	172	6.77	212	8.35	217	8.54	29	63.93	G	1
GE100-12	12	100	55.0	407	16.02	175	6.89	208	8.19	238	9.37	30.5	67.24	G	1
GE105-12	12	105	57.8	407	16.02	175	6.89	208	8.19	238	9.37	31.2	68.78	G	1
GE120-12	12	120	66.0	407	16.02	175	6.89	208	8.19	238	9.37	33.7	74.30	G	1
GE134-12	12	134	73.7	341	13.43	173	6.81	281	11.06	288	11.34	41.5	91.49	G	1
GE150-12	12	150	82.5	483	19.02	170	6.69	241	9.49	241	9.49	43.5	95.90	G	1
GE180A-12	12	180	99.0	532	20.94	207	8.15	214	8.43	240	9.45	49	108.03	G	3
GE180-12	12	180	99.0	522	20.55	240	9.45	218	8.58	244	9.61	55.7	122.80	G	3
GE200-12	12	200	110.0	522	20.55	240	9.45	218	8.58	244	9.61	58.5	128.97	G	3
GE230-12	12	230	126.5	520	20.47	269	10.59	203	7.99	226	8.90	59	130.07	H	3
GE240-12	12	240	132.0	520	20.47	269	10.59	203	7.99	226	8.90	60	132.28	H	3
GE250-12	12	250	137.5	520	20.47	268	10.55	220	8.66	249	9.80	68.2	150.35	H	3
GE260-12	12	260	143.0	520	20.47	269	10.59	220	8.66	209	8.23	77	169.75	H	3
