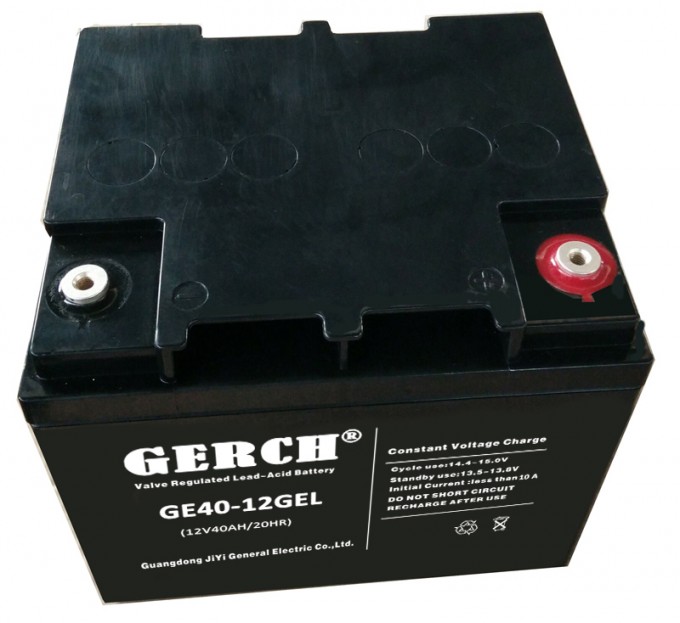

12V40ah Nano, UPS, EPS, Solar Energy, Power Supply, Railway Station, VRLA Battery

Features of High temperature battery:
1. Design life: 20 years(2V battery),18 years(12V battery)(25ºC), more than twice as much as lead-acid batteries;2. Good performance at low temperature,at -20ºC battery capacity not less than 80%;3. after over- discharge capacity recovery performance is excellent; 4. the cycle durability is stronger due to used high density active mass; 5. the capacity is better due to used Nano carbon fiber; 6. more environmentally safe;7. less internal resistance due to silver alloy used in grid;8. wide range of temperature and altitude due to Nano silicon crystal electrolyte used;9. overcome the plate sulfation, due to new additive used in paste formula; 10. Easy installation and handling;
• Suitable for continuous operation at temperatures in excess of 35ºC


Main Applications:
• Hybrid telecom remote base stations
• Renewable energy wind & solar sites
• Grid frequency leveling systems
• All back-up applications where grid reliability is poor
• All extreme environment off-grid

Model	Nominal Voltage(V)	Rated Capacity@25ºC(AH)		Approx Dimensions								Approx Weight		Terminals Type	Layout
		20HR 1.75V/Cell	10HR 1.70V/Cell	Length		Width		Hight		Total Hight
				mm	in.	mm	in.	mm	in.	mm	in.	kgs.	lbs.
GE250-12N	12	250	137.5	520	20.47	268	10.55	220	8.66	249	9.80	68.2	150.35	H	3
GE240-12N	12	240	132.0	520	20.47	269	10.59	203	7.99	226	8.90	60	132.28	H	3
GE230-12N	12	230	126.5	520	20.47	269	10.59	203	7.99	226	8.90	59	130.07	H	3
GE200-12N	12	200	110.0	522	20.55	240	9.45	218	8.58	244	9.61	58.5	128.97	G	3
GE180-12N	12	180	99.0	522	20.55	240	9.45	218	8.58	244	9.61	55.7	122.80	G	3
GE180A-12N	12	180	99.0	532	20.94	207	8.15	214	8.43	240	9.45	49	108.03	G	3
GE150-12N	12	150	82.5	483	19.02	170	6.69	241	9.49	241	9.49	43.5	95.90	G	1
GE134-12N	12	134	73.7	341	13.43	173	6.81	281	11.06	288	11.34	41.5	91.49	G	1
GE120-12N	12	120	66.0	407	16.02	175	6.89	208	8.19	238	9.37	33.7	74.30	G	1
GE105-12N	12	105	57.8	407	16.02	175	6.89	208	8.19	238	9.37	31.2	68.78	G	1
GE100-12N	12	100	55.0	407	16.02	175	6.89	208	8.19	238	9.37	30.5	67.24	G	1
GE100A-12N	12	100	55.0	339	13.35	172	6.77	212	8.35	217	8.54	29	63.93	G	1
GE100-12N	12	100	55.0	329	12.95	172	6.77	215	8.46	243	9.57	28	61.73	G	1
GE90-12N	12	90	49.5	329	12.95	172	6.77	215	8.46	243	9.57	26.5	58.42	G	1
GE80-12N	12	80	44.0	260	10.24	168	6.61	208	8.19	231	9.09	20.8	45.86	F	1
GE75-12N	12	75	41.2	260	10.24	168	6.61	208	8.19	231	9.09	20.6	45.41	F	1
GE65-12N	12	65	35.8	348	13.70	168	6.61	178	7.01	178	7.01	19.5	42.99	F	1
GE60-12N	12	60	33.0	260	10.24	169	6.65	210	8.27	214	8.43	18.3	40.34	F	1
GE55-12N	12	55	30.3	228	8.98	138	5.43	208	8.19	227	8.94	15.4	33.95	F	1
GE40-12N	12	40	22.0	197	7.76	165	6.50	170	6.69	170	6.69	12.5	27.56	F	2
GE38-12N	12	38	20.9	197	7.76	165	6.50	170	6.69	170	6.69	11.8	26.01	F	2
GE35-12N	12	35	19.3	196	7.72	131	5.16	155	6.10	167	6.57	12	26.46	F	2
GE33-12N	12	33	17.6	196	7.72	131	5.16	155	6.10	167	6.57	10.5	23.15	F	2
GE28-12N	12	28	26.6	196	7.72	131	5.16	155	6.10	167	6.57	9.5	20.94	F	2
GE26-12N	12	26	24.7	166	6.54	125	4.92	175	6.89	175	6.89	9	19.84	E	2
GE24-12N	12	24	15.4	166	6.54	125	4.92	175	6.89	175	6.89	7.6	16.75	E	2
GE24A-12N	12	24	14.3	167	6.57	176	6.93	125	4.92	125	4.92	7.5	16.53	E	2
GE450-6N	6	450	247.5	295	11.61	179	7.05	404	15.91	424	16.69	57.4	126.54	H	6
GE310-6N	6	310	170.5	295	11.61	178	7.01	345	13.58	350	13.78	47	103.62	H	6
GE230-6N	6	230	126.5	260	10.24	180	7.09	247	9.72	251	9.88	31.5	69.44	H	6
GE225-6N	6	225	124.0	244	9.61	190	7.48	275	10.83	275	10.83	31	68.34	H	6
GE210-6N	6	210	116.0	260	10.24	180	7.09	247	9.72	251	9.88	30.5	67.24	H	6
GE200-6N	6	200	110.0	323	12.72	178	7.01	224	8.82	227	8.94	30.2	66.58	H	5
GE200A-6N	6	200	110.0	260	10.24	180	7.09	247	9.72	251	9.88	30	66.14	H	6
GE180-6N	6	180	99.0	306	12.05	168	6.61	220	8.66	225	8.86	29	63.93	H	6
GE180A-6N	6	180	99.0	260	10.24	180	7.09	247	9.72	251	9.88	29	63.93	H	6
GE130-6N	6	130	71.5	260	10.24	180	7.09	247	9.72	251	9.88	20.5	45.19	H	6
GE120-6N	6	120	66.0	195	7.68	170	6.69	206	8.11	209	8.23	17	37.48	F	5
GE100-6N	6	100	55.0	195	7.68	170	6.69	206	8.11	209	8.23	15.9	35.05	F	5
GE20-12N	12	20	18.5	181	7.13	76	2.99	167	6.57	167	6.57	6.4	14.11	C	2
GE18-12N	12	18	17.1	181	7.13	76	2.99	167	6.57	167	6.57	5.8	12.79	C	2
GE17-12N	12	17	16.15	181	7.13	76	2.99	167	6.57	167	6.57	5.5	12.13	C	2
GE14-12N	12	14	13	151	5.94	98	3.86	98	3.86	102	4.02	4.2	9.26	B	4
GE13-12N	12	13	12.35	151	5.94	98	3.86	98	3.86	102	4.02	3.8	8.38	B	4
GE10-12N	12	10	9.5	151	5.94	98	3.86	98	3.86	102	4.02	3.2	7.05	B	4
GE9-12N	12	9	8.55	151	5.94	65	2.56	94	3.70	99	3.90	2.4	5.29	A or B	3 or 4
GE8.5-12N	12	8.5	8.13	151	5.94	65	2.56	94	3.70	99	3.90	2.35	5.18	A or B	3 or 4
GEH7.2-12N	12	7.2	6.84	151	5.94	65	2.56	94	3.70	99	3.90	2.15	4.74	A or B	3 or 4
GE7-12N	12	7	6.7	151	5.94	65	2.56	94	3.70	99	3.90	2.05	4.52	A or B	3 or 4
GE6.5-12N	12	6.5	6.2	151	5.94	65	2.56	94	3.70	99	3.90	2	4.41	E	3 or 4
GE6.2-12N	12	6.2	5.8	151	5.94	65	2.56	94	3.70	99	3.90	1.9	4.19	E	3 or 4
GE5.5-12N	12	5.5	5.22	90	3.54	70	2.76	102	4.02	106	4.17	1.85	4.08	A	1
GE5.4-12N	12	5.4	5.13	90	3.54	70	2.76	102	4.02	106	4.17	1.8	3.97	A	1
GE5.2-12N	12	5.2	4.94	90	3.54	70	2.76	102	4.02	106	4.17	1.7	3.75	A	1
GE5-12N	12	5	4.8	90	3.54	70	2.76	102	4.02	106	4.17	1.65	3.64	A	1
GE4.5-12N	12	4.5	4.2	90	3.54	70	2.76	102	4.02	106	4.17	1.6	3.53	A	1
GE4-12N	12	4	3.8	90	3.54	70	2.76	102	4.02	106	4.17	1.5	3.31	A	1
GE3.8-12N	12	3.8	3.61	90	3.54	70	2.76	102	4.02	106	4.17	1.5	3.31	A	1
GE3.4-12N	12	3.4	3.23	90	3.54	70	2.76	102	4.02	106	4.17	1.45	3.20	A	1
GE3.2-12N	12	3.2	3.04	90	3.54	70	2.76	102	4.02	106	4.17	1.4	3.09	A	1
GE3-12N	12	3	3.14	90	3.54	70	2.76	102	4.02	106	4.17	1.4	3.09	A	1
GE3.3-12N	12	3.3	3	135	5.31	67	2.64	61	2.40	66	2.60	1.4	3.09	A	3
GE2.8-12N	12	2.8	2.66	90	3.54	70	2.76	102	4.02	106	4.17	1.4	3.09	A	1
GE2.6-12N	12	2.6	2.47	70	2.76	47	1.85	101	3.98	106	4.17	0.9	2.07	A	1
GE2.3A-12N	12	2.3	2.18	181	7.13	23	0.91	61	2.40	61	2.40	0.9	1.98
GE2.3-12N	12	2.3	2.18	178	7.01	34.5	1.36	61	2.40	65	2.56	1.0	2.20	A	1
GE2.2-12N	12	2.2	2	178	7.01	34.5	1.36	61	2.40	65	2.56	0.9	1.98	A	1
GE2-12N	12	2	1.9	178	7.01	34.5	1.36	61	2.40	65	2.56	0.9	1.98	A	1
GE1.9-12N	12	1.9	1.8	178	7.01	34.5	1.36	61	2.40	65	2.56	0.85	1.87	A	1
GE1.4-12N	12	1.4	1.33	97	3.82	43.5	1.71	51	2.01	56	2.20	0.7	1.54	A	4
GE1.3-12N	12	1.3	1.2	97	3.82	43.5	1.71	51	2.01	56	2.20	0.6	1.32	A	4
GE1.2-12N	12	1.2	1.14	97	3.82	43.5	1.71	51	2.01	56	2.20	0.5	1.10	A	4
GE1.0-12N	12	1	0.95	97	3.82	43.5	1.71	51	2.01	56	2.20	0.5	1.10	A	4
GE14-6N	6	14	13.3	151	5.94	50	1.97	95	3.74	99	3.90	1.8	3.97	B	1
GE12-6N	6	12	11.4	151	5.94	50	1.97	95	3.74	99	3.90	1.75	3.86	B	1
GE10-6N	6	10	9.5	151	5.94	50	1.97	95	3.74	99	3.90	1.6	3.53	B	1
GE8.5-6N	6	8.5	8.1	99	3.90	57	2.24	118	4.65	118	4.65	1.5	3.31
GE9-6N	6	9	8.55	151	5.94	34	1.34	94	3.70	98	3.86	1.25	2.76	A or B	1
GE8-6N	6	8	7.6	151	5.94	34	1.34	94	3.70	98	3.86	1.25	2.76	A or B	1
GE7.5-6N	6	7.5	7.2	151	5.94	34	1.34	94	3.70	98	3.86	1.2	2.65	A or B	1
GE7-6N	6	7	6.8	151	5.94	34	1.34	94	3.70	98	3.86	1.0	2.20	A or B	1
GE6-6N	6	6	5.7	70	2.76	47	1.85	101	3.98	105	4.13	0.97	2.14	A	5
GE5-6N	6	5	4.8	70	2.76	47	1.85	101	3.98	105	4.13	0.95	2.09	A	5
GE4.5-6N	6	4.5	4.2	70	2.76	47	1.85	101	3.98	105	4.13	0.85	1.87	A	5
GE4-6N	6	4	3.8	70	2.76	47	1.85	101	3.98	105	4.13	0.75	1.65	A	5
GE3.3-6N	6	3.3	3.1	135	5.31	35	1.38	60	2.36	65	2.56	0.65	1.43	A	1
GE3.2-6N	6	3.2	3.04	135	5.31	35	1.38	60	2.36	65	2.56	0.64	1.41	A	1
GE3-6N	6	3.0	2.85	135	5.31	35	1.38	60	2.36	65	2.56	0.62	1.37	A	1
GE2.8-6N	6	2.8	2.66	135	5.31	35	1.38	60	2.36	65	2.56	0.59	1.30	A	1
GE2-6N	6	2	0.19	135	5.31	35	1.38	60	2.36	65	2.56	0.58	1.28	A	1
GE1.3-6N	6	1.3	1.2	97	3.82	24	0.94	53	2.09	58	2.28	0.32	0.71	A	1
GE1.2-6N	6	1.2	1.14	97	3.82	24	0.94	53	2.09	58	2.28	0.3	0.66	A	1
GE1.0-6N	6	1	0.95	97	3.82	24	0.94	53	2.09	58	2.28	0.26	0.57	A	1
GE0.8-6N	6	0.8	0.76	97	3.82	24	0.94	53	2.09	58	2.28	0.25	0.55	A	1
GE0.5-6N	6	0.5	0.48	57	2.24	14	0.55	52	2.05	52	2.05	0.12	0.26
GE0.4-6N	6	0.4	0.38	97	3.82	24	0.94	53	2.09	58	2.28	0.12	0.26	A	1
GE2500B-2N	2	2500	1375	491	19.33	351	13.82	343	13.50	383	15.08	155.5	342.82	I	12
GE1200B-2N	2	1200	660	187	7.36	222	8.74	650	25.59	675	26.57	78.5	173.06	I	6
GE400B-2N	2	400	220	211	8.31	176	6.93	330	12.99	365	14.37	22.5	49.60	H	8
GE300B-2N	2	300	165	171	6.73	151	5.94	330	12.99	365	14.37	15.9	35.05	H	6
GE500C-2N	2	500	275	242	9.53	172	6.77	330	12.99	365	14.37	35	77.16	I	8
GE500A-2N	2	500	275	223	8.78	187	7.36	350	13.78	385	15.16	35	77.16	I	8
GE500B-2N	2	500	275	242	9.53	172	6.77	330	12.99	365	14.37	26.9	59.30	I	8
GE200B-2N	2	200	110	172	6.77	110	4.33	330	12.99	365	14.37	13.5	29.76	H	6
GE3000-2N	2	3000	1650	712	28.03	353	13.90	341	13.43	383	15.08	165	363.76	H	12
GE2800-2N	2	2800	1540	712	28.03	353	13.90	341	13.43	383	15.08	160	352.74	H	12
GE2500-2N	2	2500	1375	712	28.03	353	13.90	341	13.43	383	15.08	158	348.33	H	12
GE2400-2N	2	2400	1320	712	28.03	353	13.90	341	13.43	383	15.08	158	348.33	H	12
GE2200-2N	2	2200	1210	491	19.33	351	13.82	343	13.50	383	15.08	120	264.55	H	12
GE2000-2N	2	2000	1100	491	19.33	351	13.82	343	13.50	383	15.08	115	253.53	H	12
GE1800-2N	2	1800	990	491	19.33	351	13.82	343	13.50	383	15.08	104	229.28	H	12
GE1600-2N	2	1600	880	401	15.79	351	13.82	343	13.50	383	15.08	86	189.60	H	11
GE1500-2N	2	1500	825	401	15.79	351	13.82	343	13.50	383	15.08	83.5	184.08	H	11
GE1400-2N	2	1400	770	401	15.79	351	13.82	343	13.50	383	15.08	81	178.57	H	11
GE1250-2N	2	1250	687.5	475	18.70	175	6.89	328	12.91	365	14.37	60.6	133.60	H	10
GE1200-2N	2	1200	660	475	18.70	175	6.89	328	12.91	365	14.37	59.6	131.39	H	10
GE1200A-2N	2	1200	660	472	18.58	172	6.77	338	13.31	355	13.98	59.6	131.39	H	10
GE1000-2N	2	1000	550	475	18.70	175	6.89	328	12.91	365	14.37	54	119.05	H	10
GE1000A-2N	2	1000	550	472	18.58	172	6.77	338	13.31	355	13.98	54	119.05	H	10
GE900-2N	2	900	495	410	16.14	175	6.89	330	12.99	365	14.37	51.5	113.54	H	10
GE800-2N	2	800	440	410	16.14	175	6.89	330	12.99	365	14.37	45.6	100.53	H	10
GE700-2N	2	700	385	301	11.85	175	6.89	331	13.03	365	14.37	46	101.41	H	8
GE600-2N	2	600	330	301	11.85	175	6.89	331	13.03	365	14.37	34.8	76.72	H	8
GE500-2N	2	500	275	241	9.49	172	6.77	331	13.03	365	14.37	26.9	59.30	H	8
GE450-2N	2	450	247.5	223	8.78	187	7.36	351	13.82	385	15.16	33.5	73.85	H	8
GE400-2N	2	400	220	211	8.31	176	6.93	330	12.99	365	14.37	22.5	49.60	H	8
GE350-2N	2	350	192.5	171	6.73	151	5.94	330	12.99	365	14.37	17.5	38.58	H	6
GE300-2N	2	300	165	171	6.73	151	5.94	330	12.99	365	14.37	15.9	35.05	H	6
GE250-2N	2	250	137.5	171	6.73	151	5.94	330	12.99	365	14.37	15.3	33.73	H	6
GE236-2N	2	236	129.8	171	6.73	151	5.94	330	12.99	365	14.37	14.8	32.63	H	6
GE200-2N	2	200	110	173	6.81	111	4.37	330	12.99	365	14.37	11.8	26.01	H	6
GE182-2N	2	182	100.1	172	6.77	102	4.02	205	8.07	228	8.98	10.5	23.15	H	5
GE160-2N	2	160	88	172	6.77	102	4.02	205	8.07	228	8.98	9.3	20.50	H	5
GE150-2N	2	150	82.5	172	6.77	102	4.02	205	8.07	228	8.98	7.6	16.75	H	5
GE150A-2N	2	150	82.5	171	6.73	71	2.80	205	8.07	228	8.98	7.6	16.75	H	5
GE135-2N	2	135	74.2	171	6.73	71	2.80	205	8.07	228	8.98	7.4	16.31	H	5
GE130-2N	2	130	71.5	171	6.73	71	2.80	205	8.07	228	8.98	7.2	15.87	H	5
GE120-2N	2	120	66	171	6.73	71	2.80	205	8.07	228	8.98	6.4	14.11	H	5
GE100-2N	2	100	55	171	6.73	71	2.80	205	8.07	228	8.98	5.8	12.79	H	5
GE80-2N	2	80	44	171	6.73	71	2.80	205	8.07	228	8.98	5	11.02	H	5
GE50-2N	2	50	27.5	161	6.34	50	1.97	166	6.54	166	6.54	3.2	7.05	F	6
