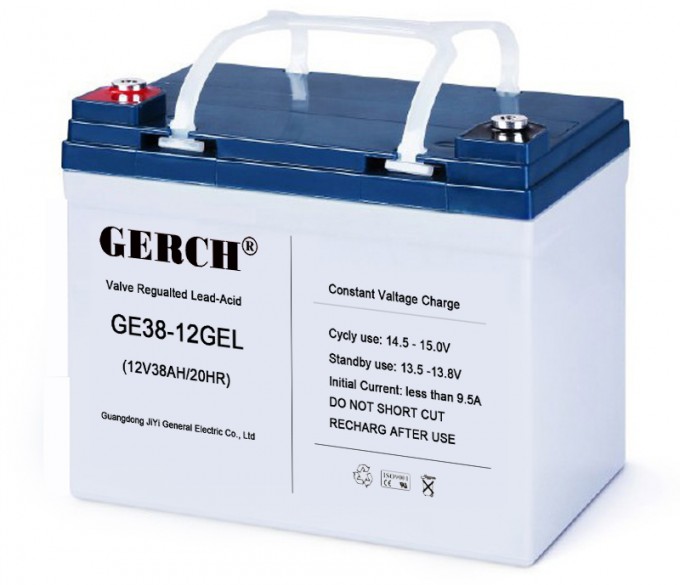

12V 38ah Gel Battery Manufacturer for Power Tool, Forklift, Power Plant, Golf Cart, Wheel Chair, Boa

General Features
1. The maximum design life up to 15 years
2. Long time discharge
3. Suitable for space and storage electric power use
4. Special plate design, long cycle lifetime
5. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime
6. Using special separator to boost up the battery performance inside
7. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment
8. High gas recombined reaction efficiency
9. Little water losing, no electrolyte stratification phenomenon
10. Long storage time
11. Good deep discharge resilience performance
12. Using gas silicon dioxide, small granule degree, bigger than surface area

Typical Applications1) Cycle applications1. Golf trolleys
2. Garden equipments
3. Portable equipments
4. Wheel chairs
5. Solar and wind mill units
6. Medical equipments
7. Flash units also for mining (head flash)
8. Portable video/radio
9. Traffic lights
10. Street signs
11. Boats or buoys
12. Cottage camping
13. SOS pillars
14. Toys and hobby applications
15. Portable equipments for communication
16. testing, distance measuring …etc.
17. Pump system2) Stand By applications1. Telecommunication backup
2. Power plants
3. Burglar alarms
4. Medical equipments (stationary and portable i.e. X- ray)
5. Computer back-up (high power)
6. Communication systems
7. Fire alarm systems
8. Transmitter systems
9. Cash register systems
10. Emergency lights signal systems
11. Telephone systems
12. Clocks systems
13. Uninterrupted
14. power supplies
15. Elevators emergency power supply (skyscrapers)
16. Solar applications
17. Mobile stations
18. Airport / runway emergency illumination
19. Emergency power supply for hospitals
20. Radar and satellite stations

Gel Series Sealed Rechargeable Lead-Acid Batteries
Model	Nominal Voltage(V)	Rated Capacity@25ºC(AH)		Approx Dimensions								Approx Weight(Kg)		Terminals Type	Layout
		20HR 1.75V/Cell	10HR 1.70V/Cell	Length		Width		Hight		Total Hight
				mm	in.	mm	in.	mm	in.	mm	in.	kgs	lbs
GE225-6GEL	6	225	202.5	243	9.57	188	7.40	275	10.83	275	10.83	33	72.8	H	6
GE18-12GEL	12	18	16.2	181	7.13	76	2.99	168	6.61	168	6.61	5.8	12.8	D	2
GE24-12GEL	12	24	21.6	167	6.57	177	6.97	125	4.92	125	4.92	8.6	19.0	D	2
GE24A-12GEL	12	24	21.6	166	6.54	126	4.96	176	6.93	176	6.93	9	19.8	E	2
GE26-12GEL	12	26	23.4	166	6.54	126	4.96	176	6.93	176	6.93	10	22.0	E	2
GE33-12GEL	12	33	29.7	195	7.68	131	5.16	151	5.94	151	5.94	11	24.3	E	2
GE38-12GEL	12	38	34.2	198	7.80	166	6.54	170	6.69	170	6.69	14.8	32.6	E	2
GE40-12GEL	12	40	36	198	7.80	166	6.54	170	6.69	170	6.69	15.8	34.8	E	2
GE55-12GEL	12	55	49.5	229	9.02	138	5.43	210	8.27	214	8.43	19	41.9	E	1
GE70-12GEL	12	70	63	260	10.24	168	6.61	214	8.43	214	8.43	25.5	56.2	E	1
GE80-12GEL	12	80	72	260	10.24	168	6.61	214	8.43	214	8.43	26.5	58.4	E	1
GE90-12GEL	12	90	81	306	12.05	168	6.61	214	8.43	214	8.43	30.5	67.2	F	1
GE100-12GEL	12	100	90	306	12.05	168	6.61	214	8.43	214	8.43	32.5	71.6	F	1
GE100-12GEL	12	100	90	329	12.95	173	6.81	234	9.21	234	9.21	34	75.0	F	1
GE120-12GEL	12	120	108	329	12.95	173	6.81	234	9.21	234	9.21	36	79.4	F	1
GE135-12GEL	12	135	121.5	341	13.43	173	6.81	281	11.06	281	11.06	42.5	93.7	F	1
GE150-12GEL	12	150	135	482	18.98	170	6.69	238	9.37	238	9.37	48.5	106.9	G	1
GE180-12GEL	12	180	162	532	20.94	207	8.15	223	8.78	223	8.78	60	132.3	G	4
GE200-12GEL	12	200	180	520	20.47	238	9.37	223	8.78	223	8.78	66	145.5	G	4
GE250-12GEL	12	250	225	520	20.47	268	10.55	220	8.66	220	8.66	80.5	177.5	G	4
GE100-12FTGEL	12	100	90	394	15.51	109	4.29	285	11.22	285	11.22	35.5	78.3	F	3
GE105-12FTGEL	12	105	94.5	550	21.65	109	4.29	238	9.37	238	9.37	36	79.4	F	3
GE120-12FTGEL	12	120	108	550	21.65	109	4.29	238	9.37	238	9.37	38	83.8	F	3
GE125-12FTGEL	12	125	112.5	551	21.69	109	4.29	238	9.37	288	11.34	42	92.6	F	3
GE155-12FTGEL	12	155	139.5	550	21.65	109	4.29	287	11.30	287	11.30	50	110.2	F	3
GE175-12FTGEL	12	175	157.5	550	21.65	109	4.29	320	12.60	320	12.60	58	127.9	F	3
GE100-2GEL	2	100	90	171	6.73	72	2.83	210	8.27	210	8.27	7	15.4	F	5
GE150-2GEL	2	150	135	172	6.77	102	4.02	205	8.07	228	8.98	9.6	21.2	F	5
GE200-2GEL	2	200	180	173	6.81	111	4.37	329	12.95	365	14.37	15	33.1	H	6
GE250-2GEL	2	250	225	171	6.73	151	5.94	330	12.99	366	14.41	17.5	38.6	H	6
GE300-2GEL	2	300	270	171	6.73	151	5.94	330	12.99	366	14.41	23.5	51.8	H	6
GE375-2GEL	2	375	337.5	171	6.73	151	5.94	330	12.99	366	14.41	27	59.5	H	6
GE400-2GEL	2	400	360	211	8.31	176	6.93	329	12.95	367	14.45	29	63.9	H	8
GE450-2GEL	2	450	405	211	8.31	176	6.93	329	12.95	367	14.45	33	72.8	H	8
GE500-2GEL	2	500	450	242	9.53	172	6.77	330	12.99	366	14.41	38.8	85.5	H	8
GE600-2GEL	2	600	540	301	11.85	175	6.89	331	13.03	366	14.41	43	94.8	H	8
GE800-2GEL	2	800	720	410	16.14	175	6.89	330	12.99	366	14.41	58.5	129.0	H	10
GE1000-2GEL	2	1000	900	475	18.70	175	6.89	328	12.91	366	14.41	69.2	152.6	H	10
