Detailed Description

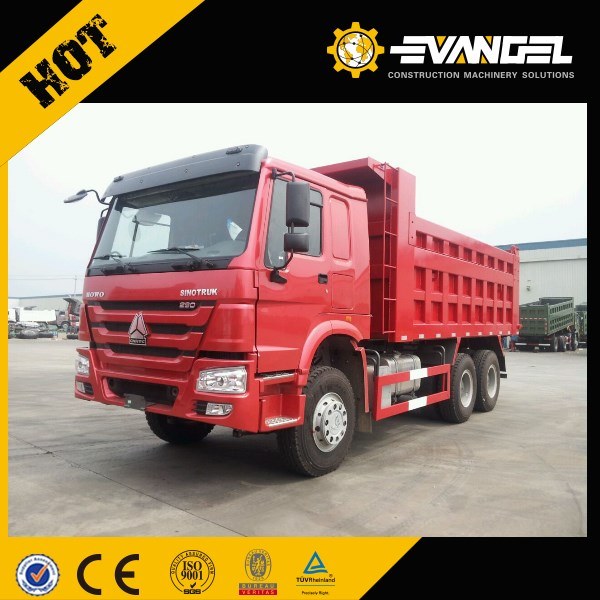

Sino truk popular 336HP 6X4 dump truck 25 ton(ZZ3257N3647A)
Engine Type
6-cylinder in-line with water cooling, turbo-charging andintercooling, 4-stroke direct injection diesel engine
Maximum output
336 HP (247 Kw) at 2200 rpm
| Basic | Made | SINOTRUK |
| Series | HOWO |
| Model | ZZ3257N3647A |
| Driving Type | 6x4 |
| Engine | Engine model | WD615.69 |
| Engine Type | 6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine |
| Maximum output | 336 hp (247 Kw) at 2200 rpm |
| Displacement | 9.726 L |
| Bore | 126 mm |
| Stroke | 130 mm |
| Compssion ratio | 29.8 hp/l |
| Specific fuel consumption | 195 g/kWh |
| Transmission | Model | HW15710(Fuller technology) |
| speeds | 10 speeds |
| Axle | Front Axle | 9T |
| Rear Axle | 16T |
| Fuel tank | Aluminium fuel tank | 300 L capacity with locking fuel cap |
| Steering | Model | ZF power steering, modol ZF8098, hydraulic steering |
| Tyre | Radial Tyre | 12.00R20 |
| Driver's Cab | Flatroof cab with bed | all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner |
| Dimensions mm | Wheel base | 3600+1350 |
| Overall dimmensions | 8145*2496*3386 |
| Dimension of the rear dump body | 5400*2300*1400(17M 3 ) |
| Performance | Maximum driving speed (km/h) | 75 |
| Maximum gradeability (%) | 40 |
| Minimum ground clearance (mm) | 314 |
| Minimum turning circle (m) | 20 |
| Fuel consumption (l/100 km) | 28 |
